Face Selection
5-7
5.5 Large Font Screen
To enter the following screen, open FACE SELECT menu, select LARGE FONT
SCREEN, and then select EXIT.

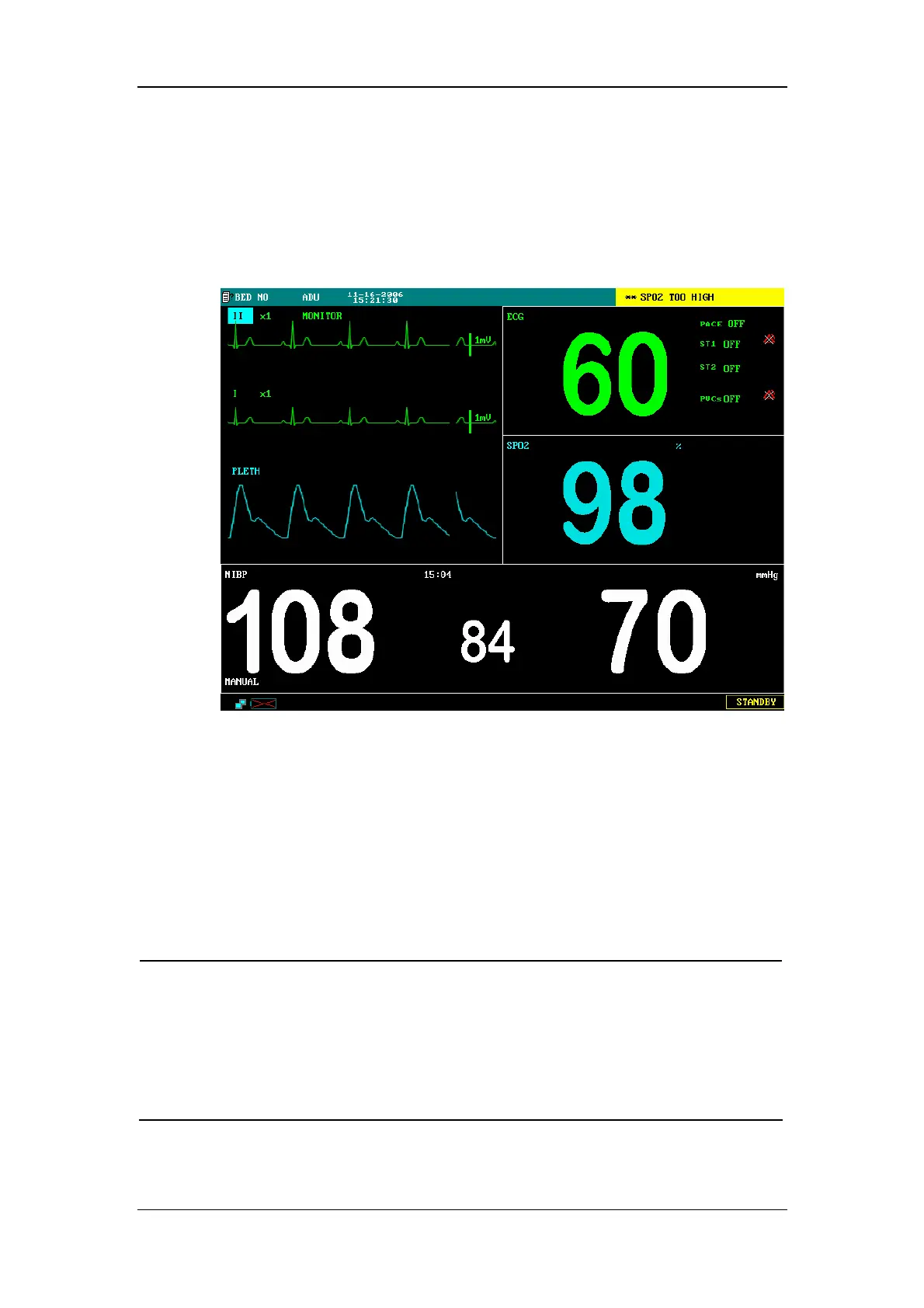

Figure 5-6 Large Font Screen
As shown above, the HR, SpO
2
and NIBP values (diastolic pressure, mean pressure
and systolic pressure) are displayed in large font. The ECG and SpO
2
waveforms are
displayed on the upper left of the screen. In case the ECG, SpO
2
or NIBP parameter
module is turned off, the corresponding parameters and waveform disappear. If all
the three modules are closed, no waveform or parameter is displayed on the screen.
NOTE
z When you open a menu in the large font screen mode, the monitor will
enter the standard screen automatically. When you exit the menu, the
monitor will return to the large font screen.
z If MULTI-LEADS DISPLAY is selected in the ECG SETUP menu, the
monitor cannot enter the large font screen.
