The Basics
2-10
2.3 Control Panel
The control panel as shown below is located at the bottom on the front panel. On the
control panel are the following keys and indicator.

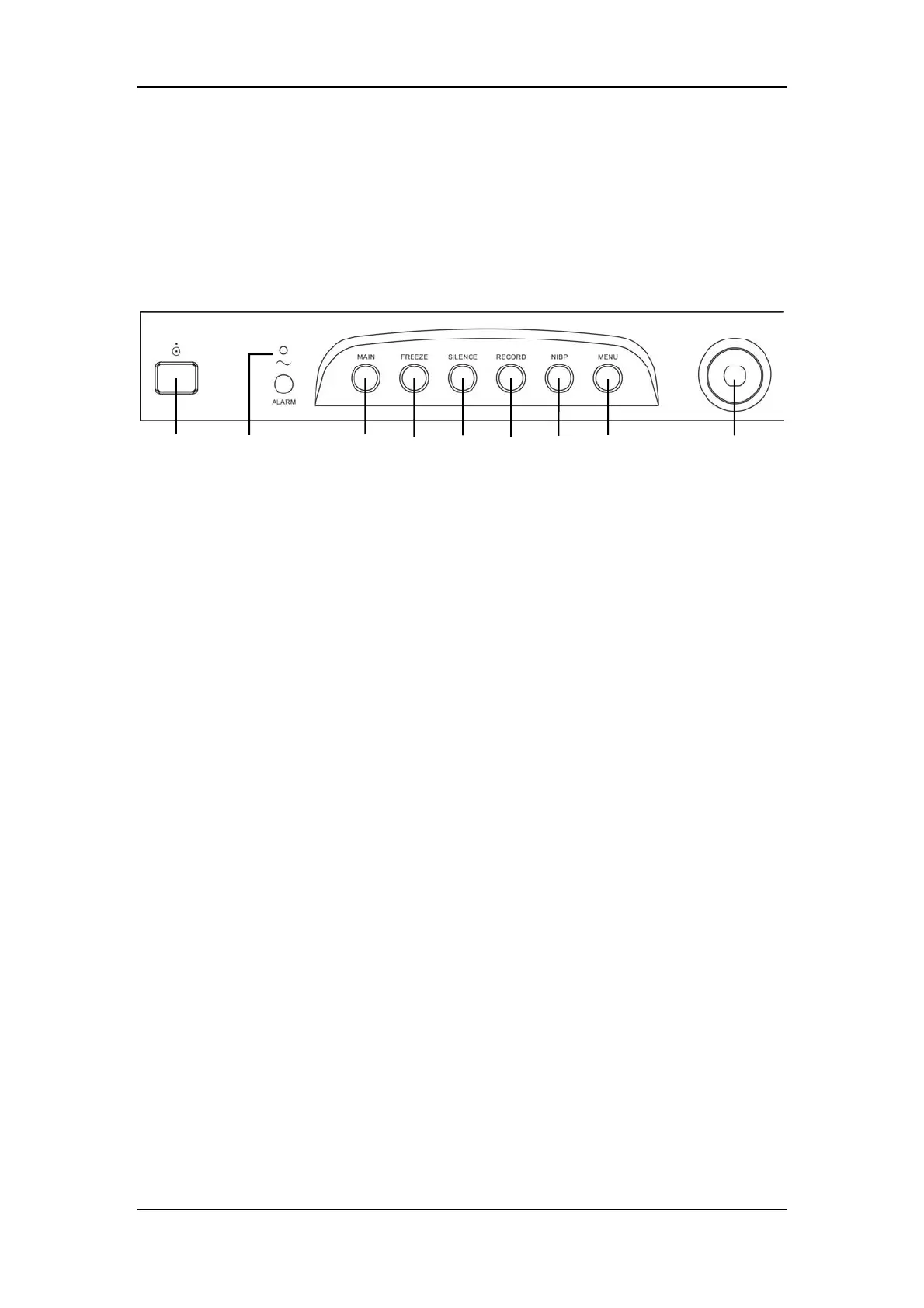

Figure 2-5 Control Panel
1. Power switch
This key turns the monitor ON and OFF. To turn OFF the monitor, please press this
key and hold for more than 2 seconds.
2. AC power indicator
îš„ ON: AC power is applied to the monitor.
îš„ OFF: AC power is not applied to the monitor.
3. MAIN
Press this key to exit the menu currently displayed, and return to the main screen.
4. FREEZE
This key is pressed to freeze and unfreeze waveforms. See 7 Freezing Waveforms
for more information.
5. SILENCE
You can press this key to pause alarms, silence the monitor or clear alarms. You can
also switch between different alarm statuses through this key. See 6.3.5 Status
Switchover for more information.
6. RECORD
Press this key to start or stop recording. See 8 Recording for more information.
7. NIBP
Press this key to start or stop the non-invasive blood pressure measurement. See 13
1 2 3 4 5 6 7 8 9
