ECG/RESP Monitoring
11-28
11.5.4 Arrhythmia Recall
Selecte ARR RECALL >> in ARR ANALYSIS menu. The following menu appears.
You can review any stored arrhythmia event in this menu.

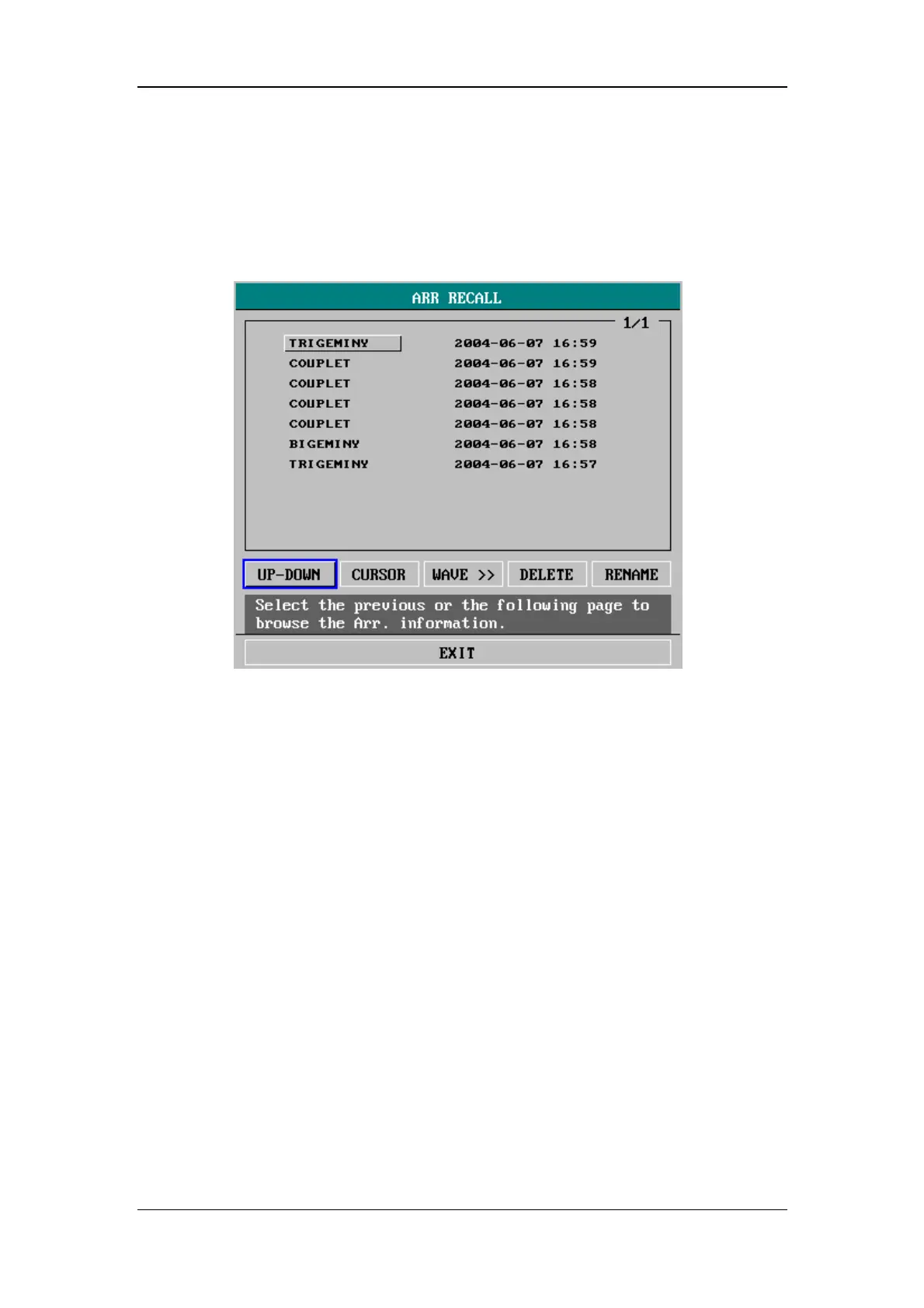

Figure 11-15 Arrhythmia Recall
You can perform the following operations:
îš„ UP-DOWN
A maximum of 10 arrhythmia events can be displayed in the
window each time. In case of more than 10 events, you can
use the UP-DOWN option to review more. At most 8 pages
can be reviewed.
îš„ CURSOR
This option allows you to select an arrhythmia event
displayed in the window.
îš„ DELETE
This option allows you to delete a selected arrhythmia event.
îš„ RENAME
This option allows you to change the name of a selected
arrhythmia event.
Select this option, and rotate the control knob till the desired
name appears. Then, press the control knob to select the
name.
îš„ WAVE >>
Selecting this option opens the following window. In the
window, the waveform and the time of a selected arrhythmia
event as well as the parameter values at the event time are
displayed.
To Next Page
