System Menu
4-22
4.6
Monitor Version
Select V
ERSION>> in SYSTEM MENU.
The following menu a
ppears.

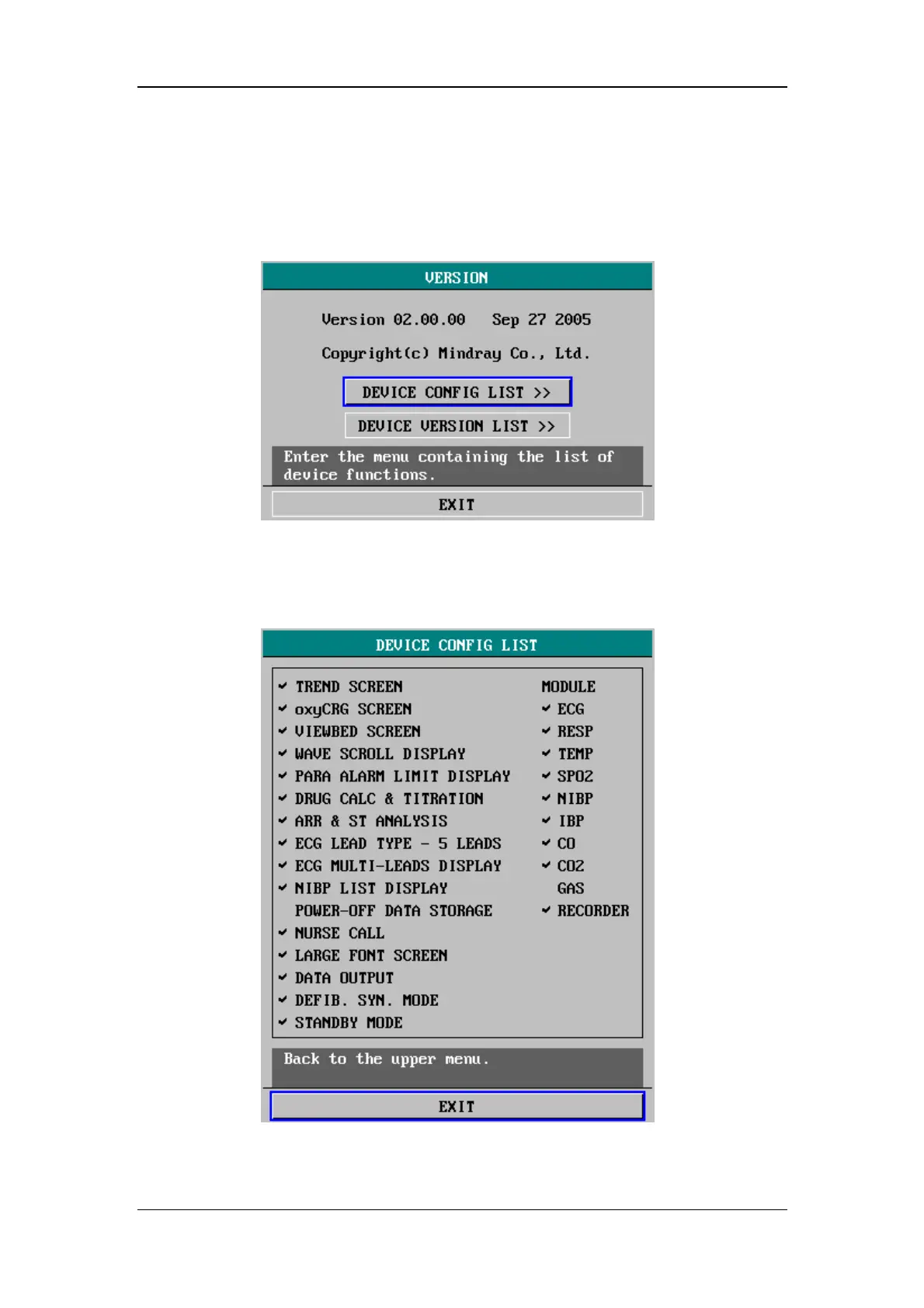

Figure 4-1
8 V
ersion
Y
ou can see the software ver
sions of the monitor
. The DEV
ICE CONFIG LIST>>
option allow
s you to see the configur
ation of the m
onitor
.
Figure 4-19
Device Configuration List
75
77
Table of Contents
1 Safety
17
Table of Contents
17
Safety Information
18
Dangers
19
Warnings
19
Cautions
20
Notes
21
Equipment Symbols
22
CE Marking
24
Reference Literature
24
2 The Basics
25
Monitor Description
26
Intended Use
26
Contraindications
27
Components
27
Functions
27
External Appearance
29
Front Panel
29
Side Panel
30
Rear Panel
32
Control Panel
34
Display
36
Batteries
39
Battery Maintenance
40
Battery Recycling
41
3 Installation and Maintenance
43
Installation
44
Unpacking and Checking
44
Environmental Requirements
45
Power Source Requirements
45
Bracket Mounting
45
Installation Method
46
Powering on the Monitor
50
Powering off the Monitor
50
Maintenance
51
Inspection
51
Cleaning
52
Disinfection
53
4 System Menu
55
Overview
56
Patient Setup
58
Admit Patient
59
Quick Admit Patient
61
Modify Patient
61
Clear Patient Data
62
Discharge Patient
62
Default Setup
63
System Setup
64
Face Select
65
Alarm Setup
65
Time Setup
67
Recorder Setup
68
Data Output
70
Analog Output
71
Module Setup
72
Trace Setup
73
Mark Event
74
Selection Setup
75
Monitor Version
76
Maintenance
78
IP Address Setup
81
Wireless Net Setup
81
Self Definition of Color
82
Nurse Call Setup
83
CO User Maintain
85
Monitor Status
85
DEMO Function
86
5 Face Selection
87
Standard Screen
88
Trend Screen
89
Oxycrg Screen
90
Viewbed Screen
91
Large Font Screen
93
Standby Mode
94
6 Alarms
95
Overview
96
Alarm Categories
96
Alarm Levels
97
Alarm Modes
98
Visual Alarms
98
Audible Alarms
98
Alarm Messages
99
Parameter Flashes
99
Alarm Statuses
100
Alarms Disabled
100
Alarms Paused
101
System Silenced
101
Alarms Silenced
101
Status Switchover
102
Latching Alarms
103
Clearing Alarms
104
When an Alarm Occurs
105
7 Freezing Waveforms
107
Freezing and Unfreezing
108
Overview
108
FROZEN Menu
109
Recording Frozen Waveforms
110
Waveform Recall
110
8 Recording
111
Overview
112
Recording Types
112
Recorder Operations
115
Installing Recorder Paper
119
9 Recall
121
Overview
122
Trend Graph Recall
123
Trend Table Recall
125
NIBP Recall
127
Alarm Event Recall
128
Non-Volatile Data Storage
130
11 Ecg/Resp Monitoring
137
Overview
138
ECG Waveform
138
ECG Parameters
140
ECG Monitoring Procedure
141
Preparation
141
Electrode Placement
142
ECG Setup Menu
148
ST Analysis
157
Overview
157
ST Analysis Menu
157
Arrhythmia Analysis
161
Overview
161
Arrhythmia Analysis Menu
162
Arrhythmia Alarm Setup
163
Arrhythmia Recall
164
ECG 12-Lead Monitoring
166
General
166
Monitoring Procedure
167
ECG Setup Menu for 12-Lead Monitoring
170
Data Review
177
RESP Monitoring
179
Overview
179
Electrode Placement
180
Respiration Setup
181
Maintenance and Cleaning
183
12 Spo Monitoring
185
Overview
186
Mindray Spo
187
Principles of Operation
188
Precautions
189
Monitoring Procedure
190
Measurement Limitations
192
Spo Setup Menu
193
Masimo Spo Module
196
Principles of Operation
196
Precautions
198
Monitoring Procedure
200
Measurement Limitations
200
Spo Setup Menu
201
Sensors and Accessories
203
Masimo Information
206
Nellcor Spo Module
207
Principles of Operation
207
Precautions
209
Monitoring Procedure
210
Measurement Limitations
211
Spo Setup Menu
212
Accessories
214
Nellcor Information
215
13 Nibp Monitoring
217
Overview
218
Monitoring Procedure
219
Cuff Selection and Placement
219
Operation Guides
221
Measurement Limitations
222
NIBP Setup Menu
223
Calibration
225
Testing for Air Leakage
226
Maintenance and Cleaning
227
14 Temp Monitoring
229
Overview
230
Measurement Procedure
231
TEMP Setup Menu
232
Maintenance and Cleaning
234
15 Ibp Monitoring
235
Overview
236
Precautions
237
Monitoring Procedure
238
IBP Menu
239
IBP Setup Menu
239
IBP Pressure Zero Menu
242
IBP Pressure Calibration
245
Maintenance and Cleaning
248
ICP Transducer ICT/B
250
Introduction
250
Precautions
251
Calibration and Zeroing
252
Application of ICT/B
254
Maintenance and Cleaning
257
Frequently Asked Questions
260
16 Co Monitoring
263
Overview
264
Measurement Procedure
265
Window for CO Measurement
267
Blood Temperature Monitoring
270
CO Setup Menu
271
Hemodynamic Calculation
273
Maintenance and Cleaning
275
17 Co Monitoring
277
Overview
278
Mindray CO Module
279
Principles of Operation
279
Preparations for CO Measurement
280
CO Setup Menu
282
User Maintain Menu
286
Maintenance and Cleaning
288
Oridion CO 2 Module
289
Principles of Operation
289
Preparations for CO Measurement
290
CO Setup Menu
291
CO User Maintain Menu
295
Maintenance and Cleaning
297
Oridion Information
297
Welch Allyn CO Module
298
Principles of Operation
298
Preparations for CO Measurement
299
CO Setup Menu
300
Maintenance and Cleaning
304
18 Anesthesia Gas Monitoring
305
Overview
306
Measurement Principles and Procedure
308
AG Setup Menu
310
Maintenance and Cleaning
314
20 Appendices
327
Appendix A Product Specifications
328
Safety Classifications
328
Environmental Specifications
329
Power Source Specifications
330
Hardware Specifications
331
Wireless Network
332
Data Storage
332
Signal Output Specifications
333
ECG Specifications
334
RESP Specifications
336
Spo 2 Specifications
337
NIBP Specifications
339
TEMP Specifications
340
IBP Specifications
341
CO Specifications
342
Specifications
343
AG Specifications
346
Appendix Bemc
348
Appendix C Alarm Messages and Prompt Information
353
Appendix D Optional Functions
369
Appendix E Symbols and Abbreviations
371
Symbols
371
Abbreviations
373
