Recall
9-8
9.5 Alarm Event Recall
Select ALARM RECALL >> in SYSTEM MENU. The following menu appears.

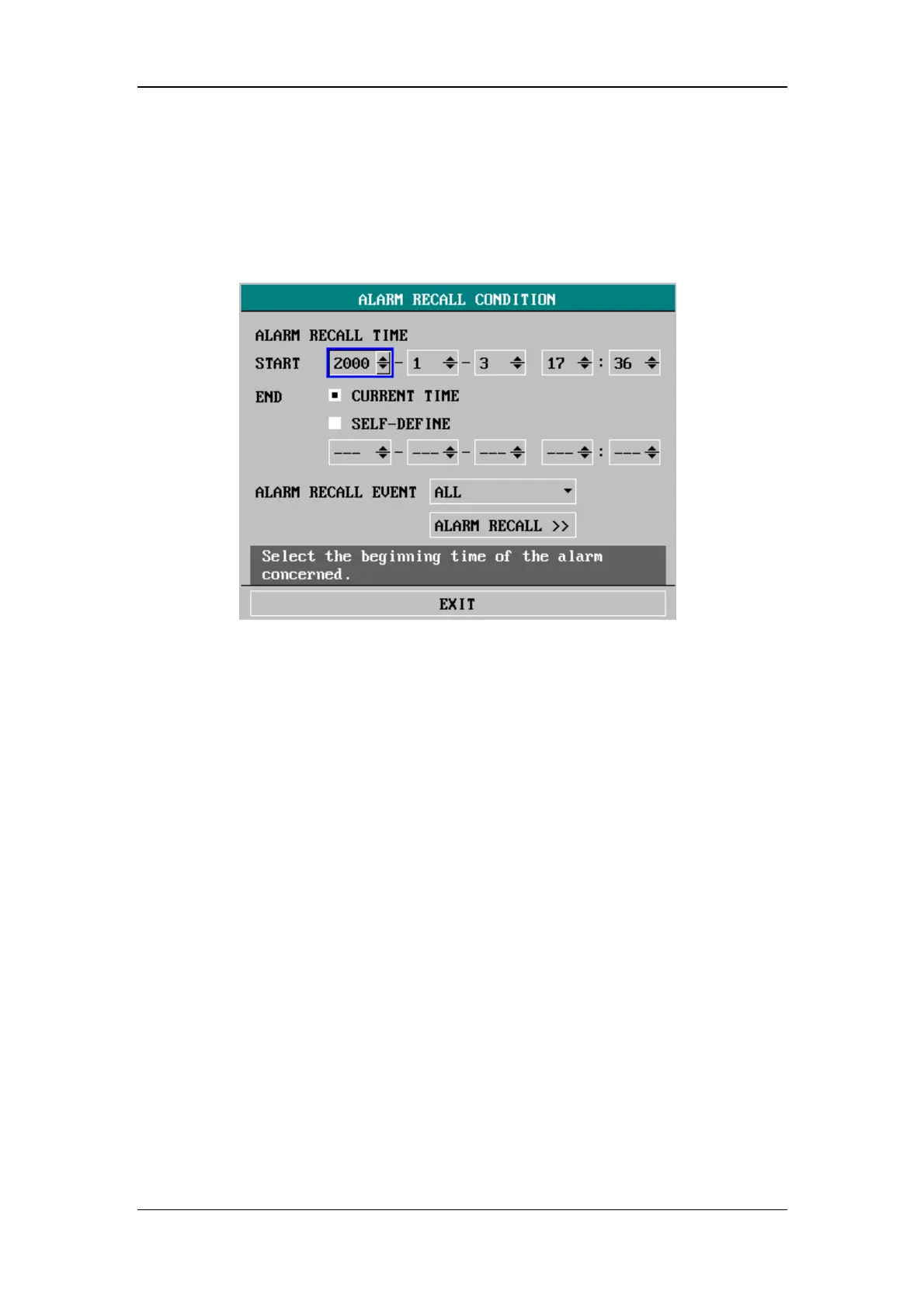

Figure 9-4 Alarm Recall Condition Selections
In this menu, you may select the conditions of alarm review:
îš„ ALARM RECALL TIME
You can select the desired start time and end time for review. The end time can be
set to either CURRENT TIME or SELF-DEFINE.
îš„ ALARM RECALL EVENT
The drop-down menu of ALARM RECALL EVENT provides a list of parameter
options to be reviewed. Among them, ALL indicates all parameter alarm events are
to be reviewed, H refers to the upper parameter limit and L refers to the lower
parameter limit.
îš„ ALARM RECALL>>
If the ALARM RECALL TIME and the ALARM RECALL EVENT are both
selected, you can select the ALARM RECALL >> option to open the ALARM
RECALL window as shown in Figure 9-5.
This window contains the following information:
1. Time span (the start time and end time of alarm recall).
2. Alarm event type.
3. The alarming parameter, parameter value, alarm level and the alarm time.
