ECG/RESP Monitoring
11-8
îš„ V7: On the 5th intercostal space at the left posterior axillary line of the back.
îš„ V7R: On the 5th intercostal space at the right posterior axillary line of the back.

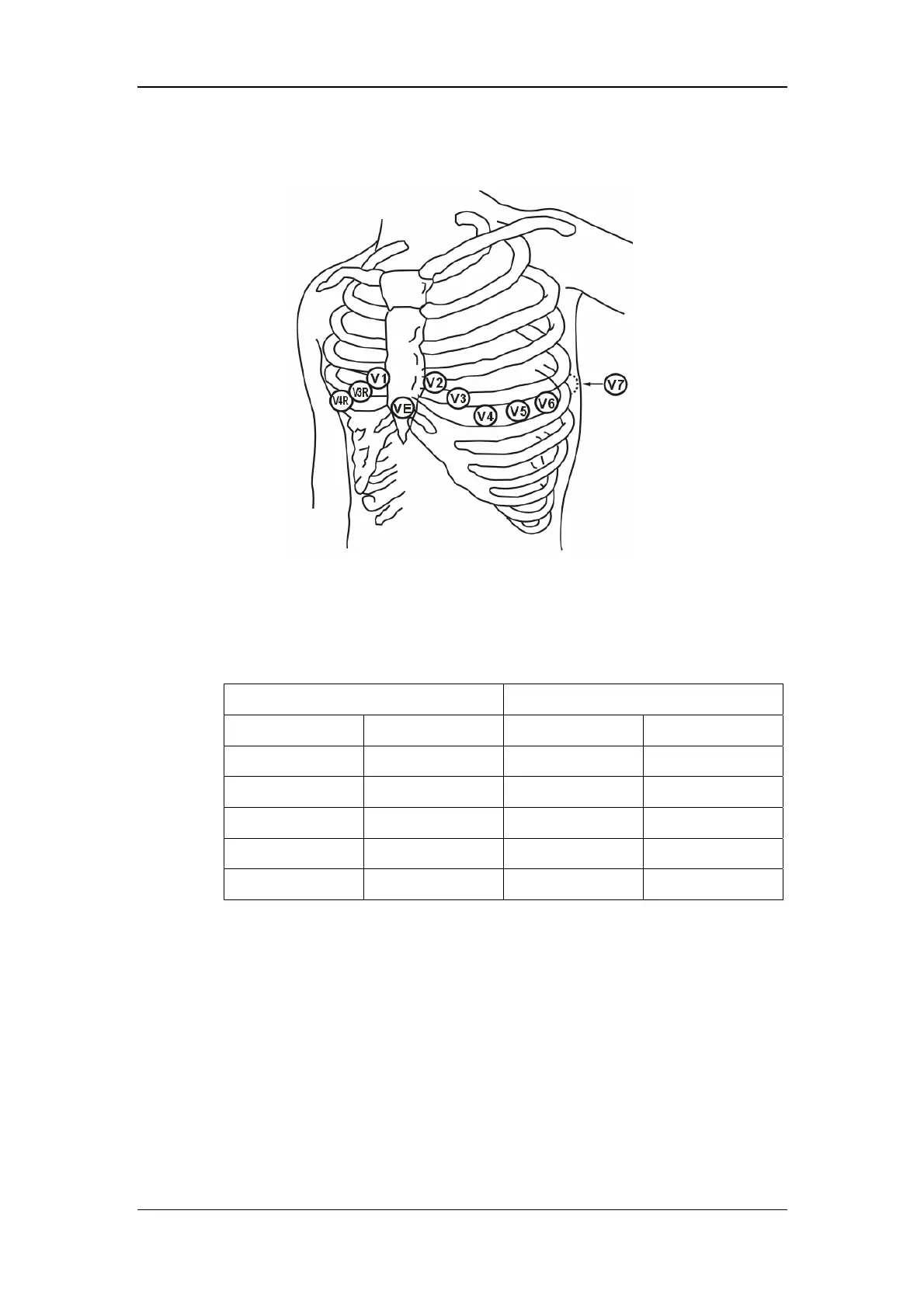

Figure 11-4 Positions of Chest Electrode
The chart below shows the label used to identify each leadwire. Included also is its
associated color code per American (AHA) and European (IEC) standards.
American Standard European Standard
Label Color Label Color
RA White R Red
LA Black L Yellow
LL Red F Green
RL Green N Black
V Brown C White
