ECG/RESP Monitoring
11-38
You can print the analysis result by selecting the REC button in the ECG 12 LEAD
ANALYSIS RESULT.
îš„ WAVESET>>
You can select this label to enter the 12 LEAD WAVE menu,
and then select the required waveset. The rhythm lead
waveform will always be displayed at the bottom in spite of
the set mode.

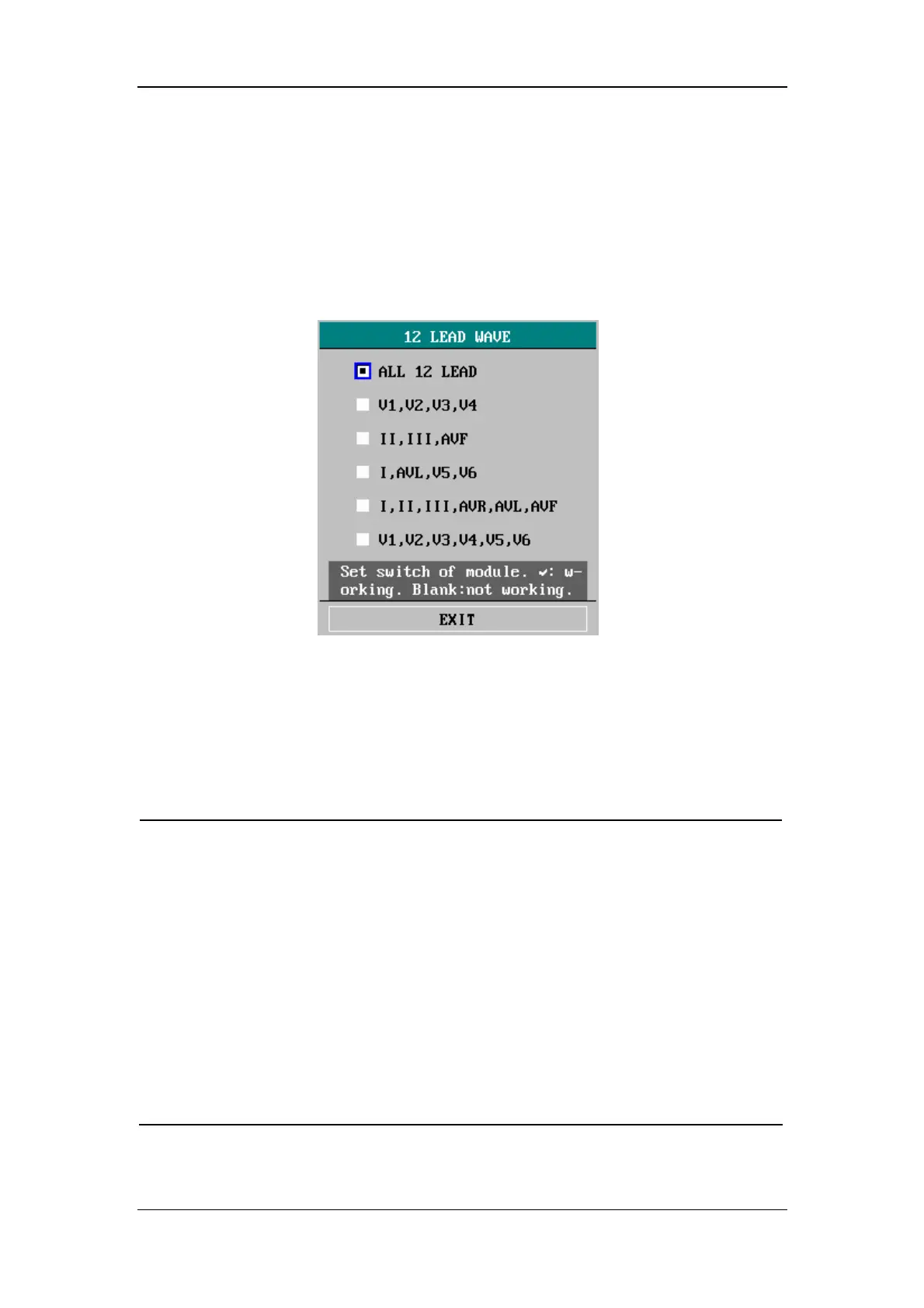

Figure 11-26 ECG 12-lead waveform setup
îš„ EXIT You can select this label to exit the 12-lead analysis screen.
NOTE
z In the 12-lead analysis screen, labels except the ECG-related ones (ECG,
ST, GAIN, RHYTHM, CATCH, RECALL, ANALYSIS, WAVESET>>, EXIT) are
all disabled.
z The FREEZE and REC buttons on the control panel are invalid for the
12-lead analysis screen.
z In the 12-lead analysis screen, you can press the MAIN and MENU
buttons on the control panel to exit the 12-lead analysis screen and
return to the normal monitoring screen.
z A maximum of 8 12-lead ECG analysis results are generated for each
time.
