ECG/RESP Monitoring
11-40
îš„ ALM REC
ST alarm recording
ON: The monitor starts recording when an ST alarm occurs;
OFF: The monitor does not record when an ST alarm occurs.
îš„ ANT ALM HI
Determines the upper limit of the ST alarm in the ANT group;
2.0mV is the highest.
îš„ ANT ALM LO
Determines the lower limit of the ST alarm in the ANT group;
-2.0 mV is the lowest.
îš„ INF ALM HI
Determines the upper limit of the ST alarm in the INF group;
2.0mV is the highest.
îš„ INF ALM LO
Determines the lower limit of the ST alarm in the INF group;
-2.0 mV is the lowest.
îš„ LAT ALM HI
Determines the upper limit of the ST alarm in the LAT group;
2.0mV is the highest.
îš„ LAT ALM LO
Determines the lower limit of the ST alarm in the LAT group;
-2.0 mV is the lowest.
12-lead review
Select 12 LEAD RECALL >> In ECG SETUP menu. The following menu appears.

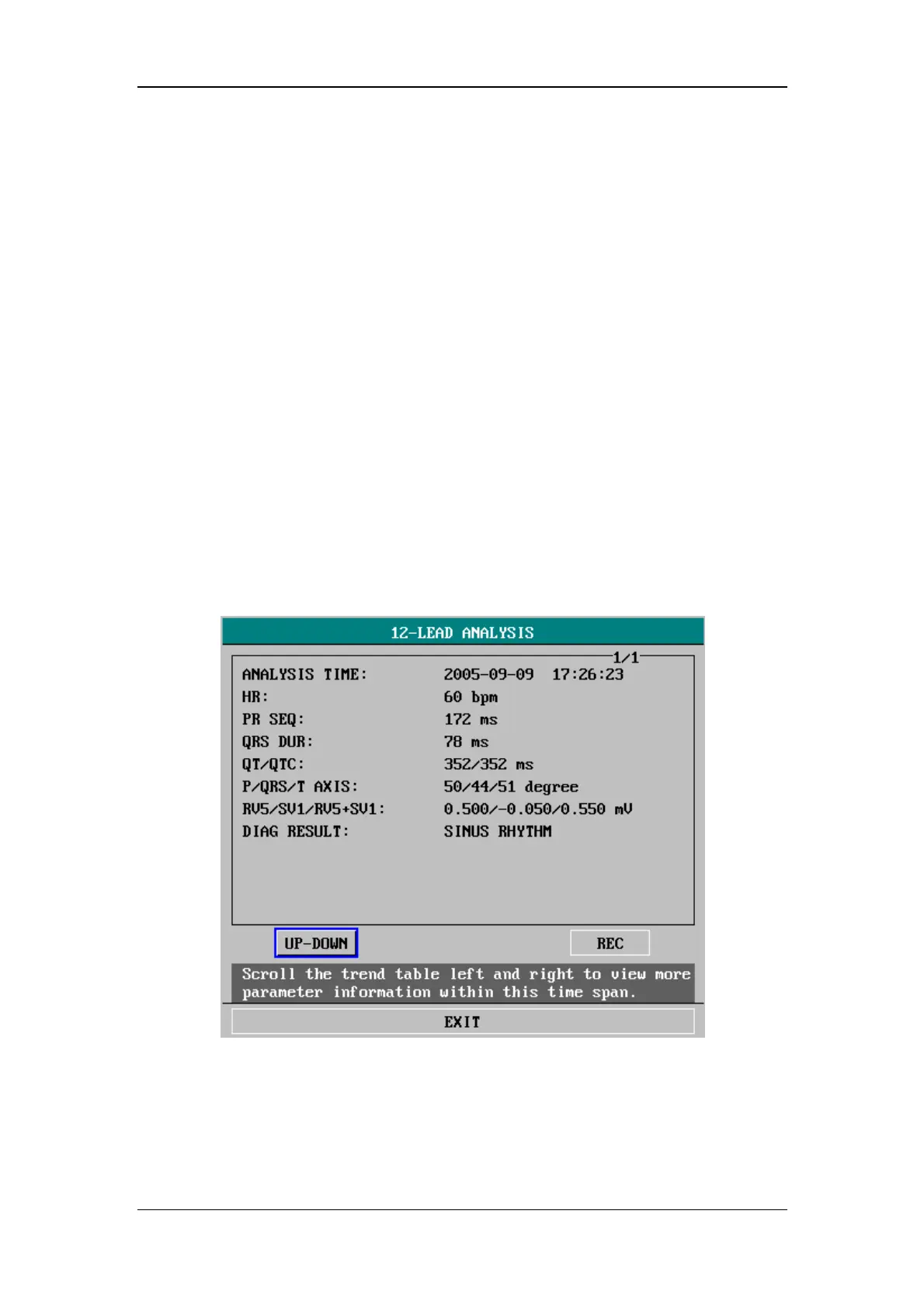

Figure 11-28 12-lead review
In this menu, you can recall 80 12-lead analysis results. When the number of 12-lead
results exceeds 80, the earliest results will be deleted.
