ECG/RESP Monitoring
11-42

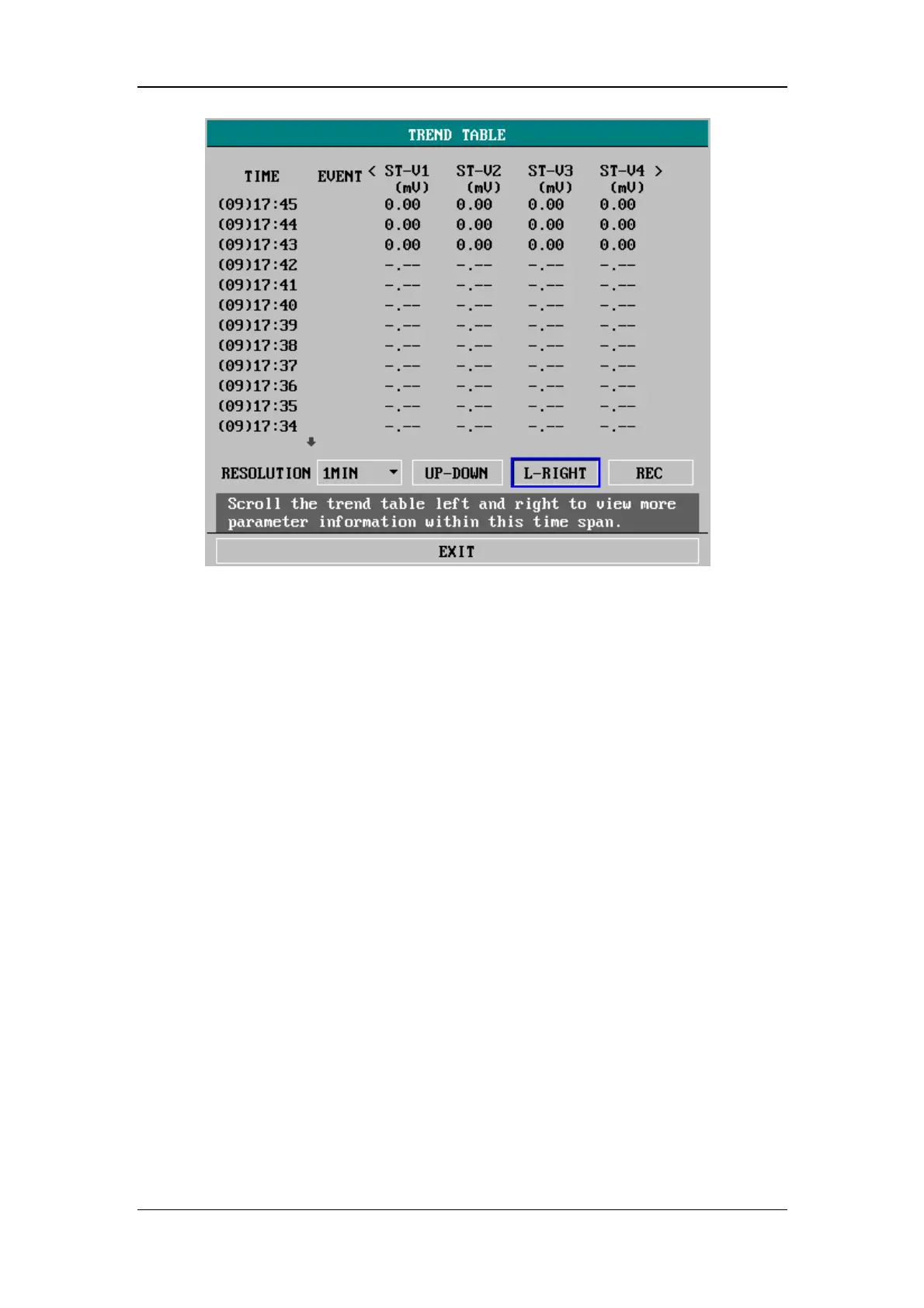

Figure 11-30 Trend table
You can review the ST parameters of the 12-lead monitoring. Through the L-RIGHT
button, 3 groups of ST numerics can be displayed.
ARR review
For details about the ARR review, refer to 11.5.4 Arrhythmia Recall.
For the ARR review in the 12-lead monitoring, the ST parameters displayed in the
review screen are ST-I, ST-II and ST-V1, and the displayed waveforms are the
waveforms of the first two ECG channels.
Alarm event review
For details about the alarm event review, refer to 9.5 Alarm Event Recall.
For the alarm event review in the 12-lead monitoring:
îš„ In case of an ST alarm, the ST parameters displayed in the review screen are all
ST numerics in it’s group, and the waveforms are those of ECG Channel 1 and
of the alarmed lead; if the two waveforms are the same, the waveform of ECG
channel 2 will be displayed.
îš„ In case of an HR alarm, the ST parameters displayed in the review screen are
ST-I, ST-II and ST-V1, and the displayed waveforms are the waveforms of the
first two ECG channels.
