6 Image Acquisition

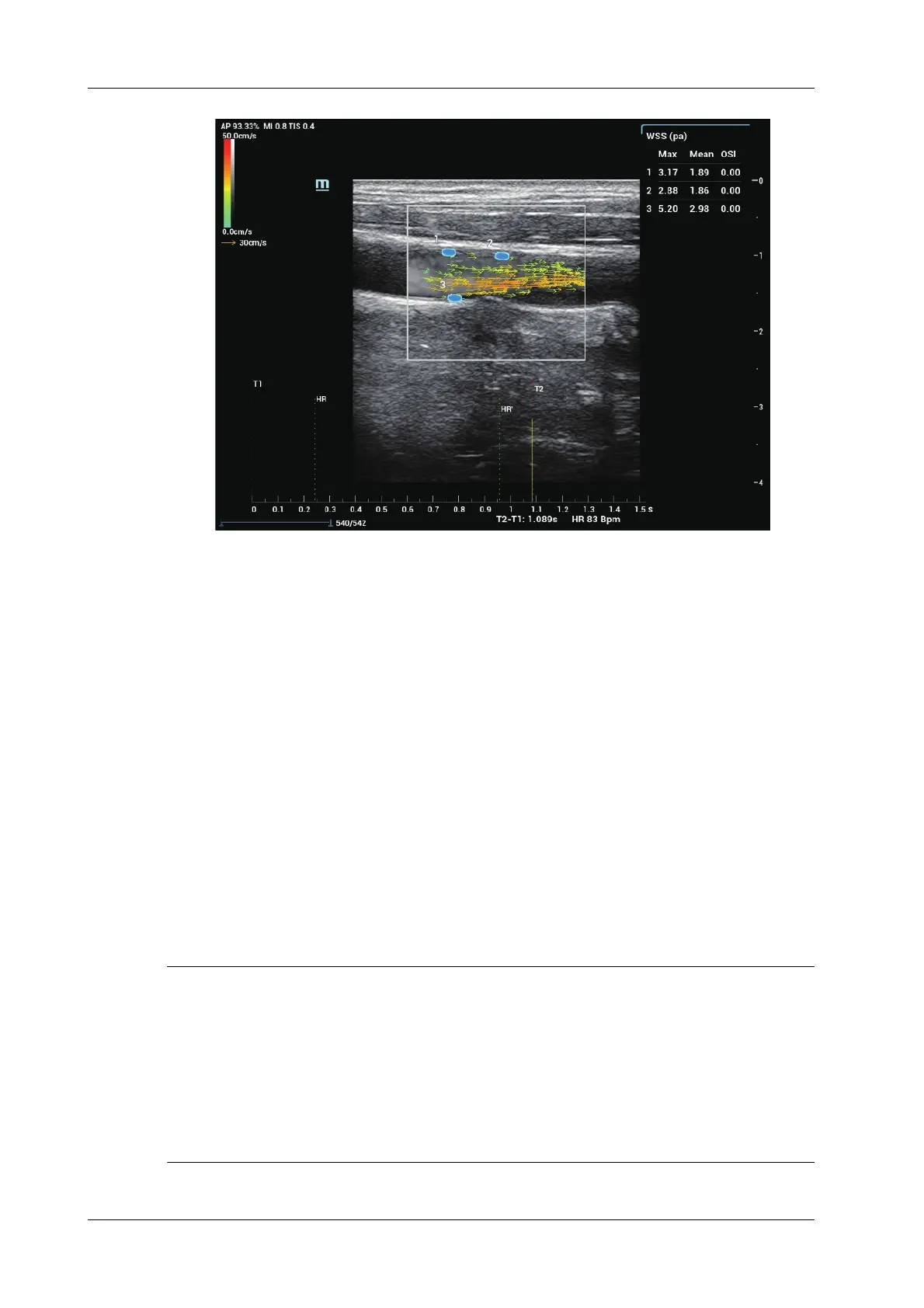

5. Tap [WSS] again and repeat step 4 to add more stress points.
Press <Update> to switch the stress points.
Press <Set> to select WSS points, then move the track ball to adjust the position and direction
of WSS point.
6. Press <Save> to save the cine file.
Wall shear stress indices
Wall shear stress indices change linearly with wall shear stress. The higher wall shear stress, the
higher the indices value.
Tap [Blood Viscosity] to change Wall shear stress indices.
Delete wall shear stress point
After 3 stress points are added, you can delete the point by pressing <Update> to activate it and
press <Clear>.
6.6 M Mode
• During M mode imaging, menus of image optimizing for B mode and M mode are displayed
on the touch screen at the same time. You can switch between the 2 modes by tapping the
mode tabs.
• During M mode scanning, the frequency, depth, and acoustic power of the probe are
synchronous with that of B mode.
• Adjustment of the depth or TGC to B Mode image will lead to corresponding changes in M
Mode image.
