8 - 12 Operator’s Manual
8 Elastography
6. Play the cine file to select an image with good similarity, and then perform measurement.
7. Save a single frame image or cine file.
8.4.2 E Compare Live (Real Time)
• You can enter E Compare Live from STE or StrainE. Entering from STE is taken as an
example.
• You can enter E Compare Live in elasto acquisition preparation mode or after acquisition.
Entering after acquisition is taken as an example.
Perform the following procedure:
1. Select a proper probe. Perform 2D scan to locate the region.
2. Tap [Elasto] > [STE] on the touch screen. Or press the user-defined <STE> key to enter the
STE mode.
The dual windows of B+STE images are displayed.
3. Adjust the ROI size and position, and press <Update> to start acquisition.
4. Select [E Compare Live].

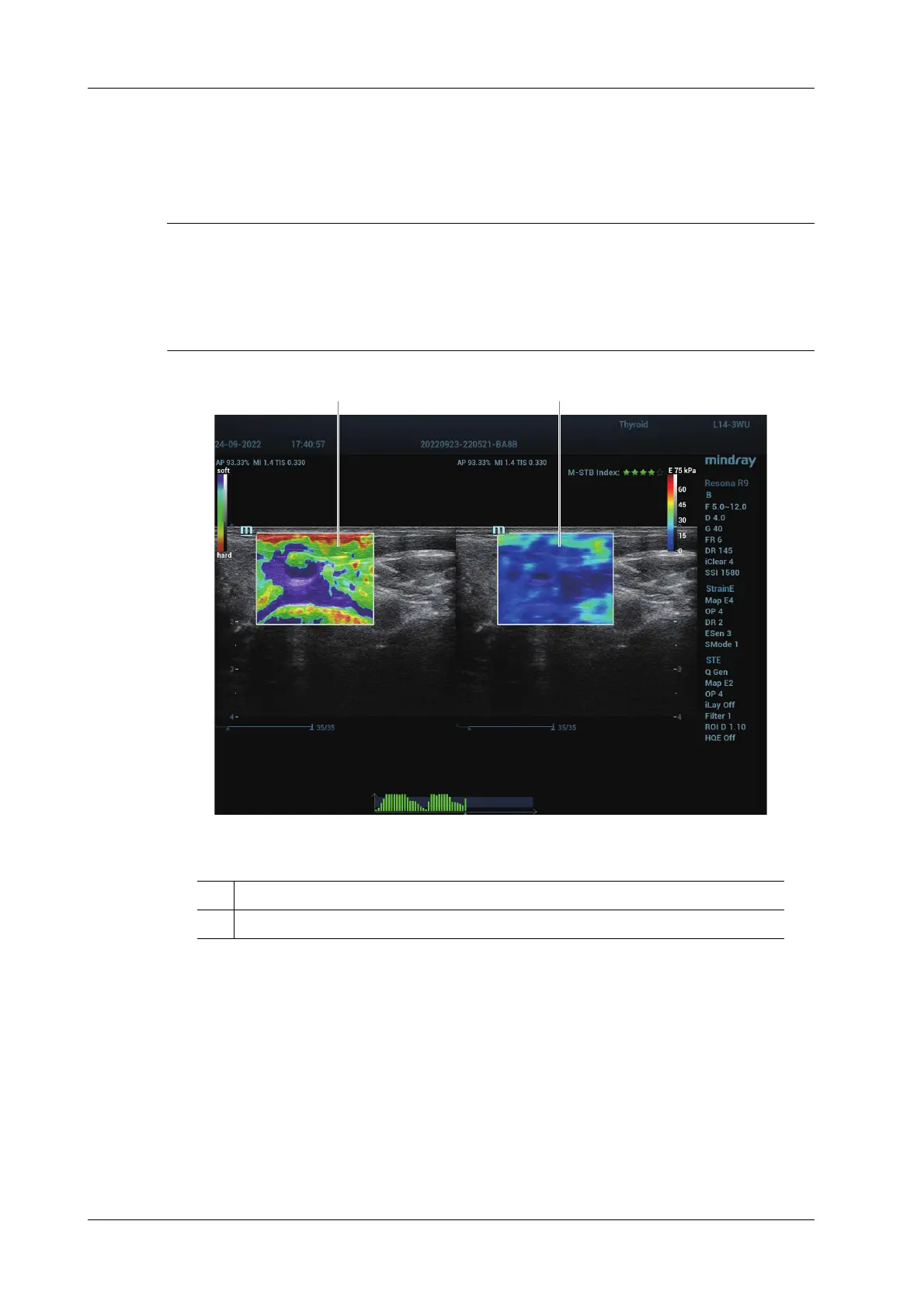

The dual windows of StrainE+STE images are displayed. The depth and ROI of StrainE are
automatically matched to those of STE.
1. StrainE image
2. STE image
12
