3 - 8 Operator’s Manual
3 System Preparation
3.5 Adjusting Monitor Brightness/Contrast
Monitoring the brightness and contrast adjustment is one of the most important factors for proper
image qualities. If set incorrectly, the gain, TGC, dynamic range or even acoustic output have to be
changed more often than necessary to compensate.
• Brightness adjustment
Press <F10 Setup>, and then select [System] > [General] > [LCD]/[TouchPanel].
• Contrast ratio adjustment
Press <F10 Setup>, and then select [System] > [General] > [LCD]/[TouchPanel].
• Automatic brightness adjustment
Press <F10 Setup>, and then select [System] > [General] > [Brightness auto adjustment]. The
system will automatically adjust the brightness/contrast ratio of the main screen and touch
screen according to the surrounding environment.
On the monitor, the brightness adjustment comes before contrast. After readjusting the monitor's
contrast and brightness, adjust all preset and peripheral settings.
3.6 Adjusting the Control Panel Position
Make sure that the Ultrasound System is powered on.

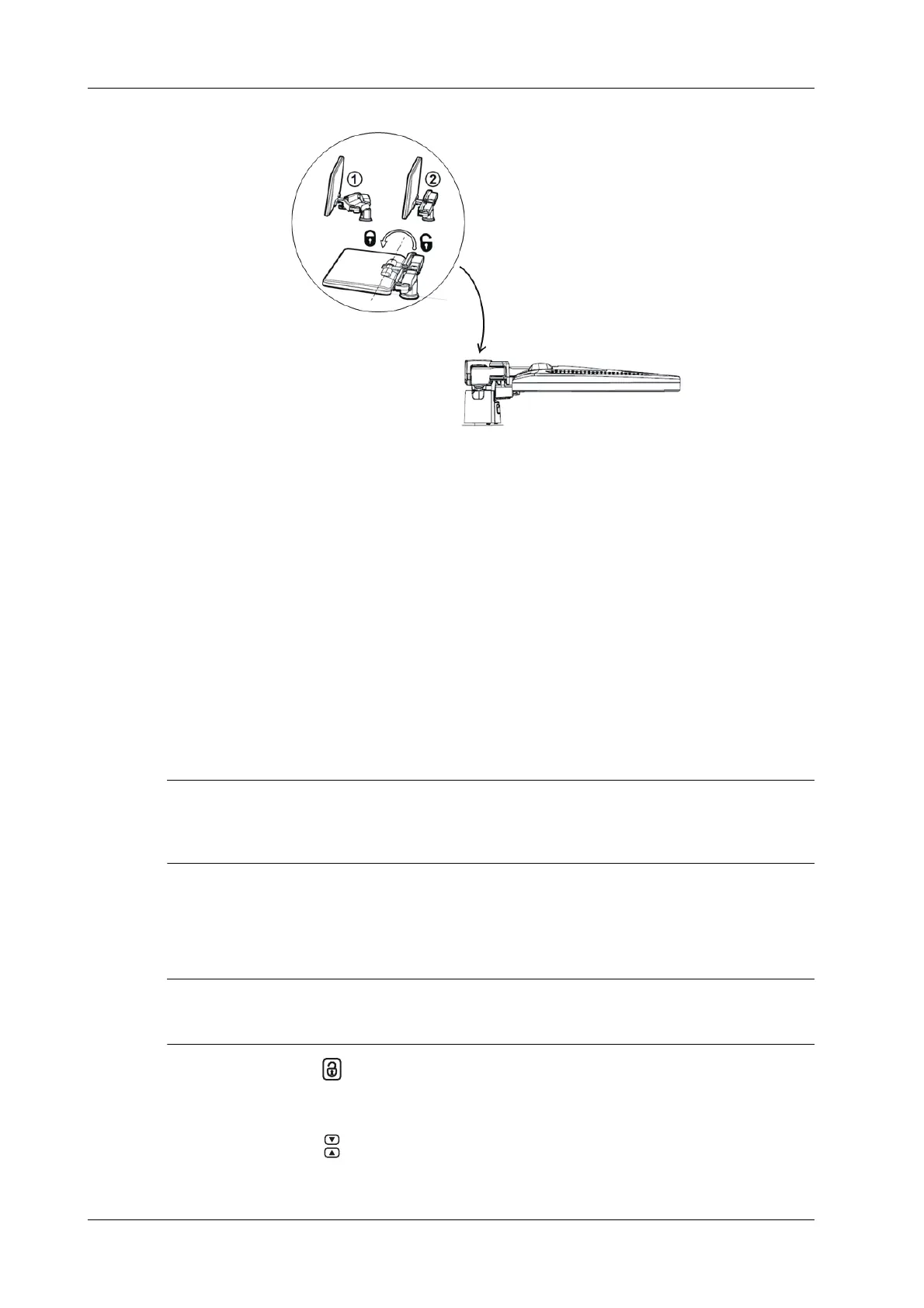

1. Press and hold the button on the control panel to rotate the control panel ±90°.
If you purchase the stretching assembly of the control panel, the control panel can be stretched
back and forth.
2. Press and hold the button on the control panel to ascend or descend the control panel.
To Next Page
