7 3D/4D
Operator’s Manual 7 - 31

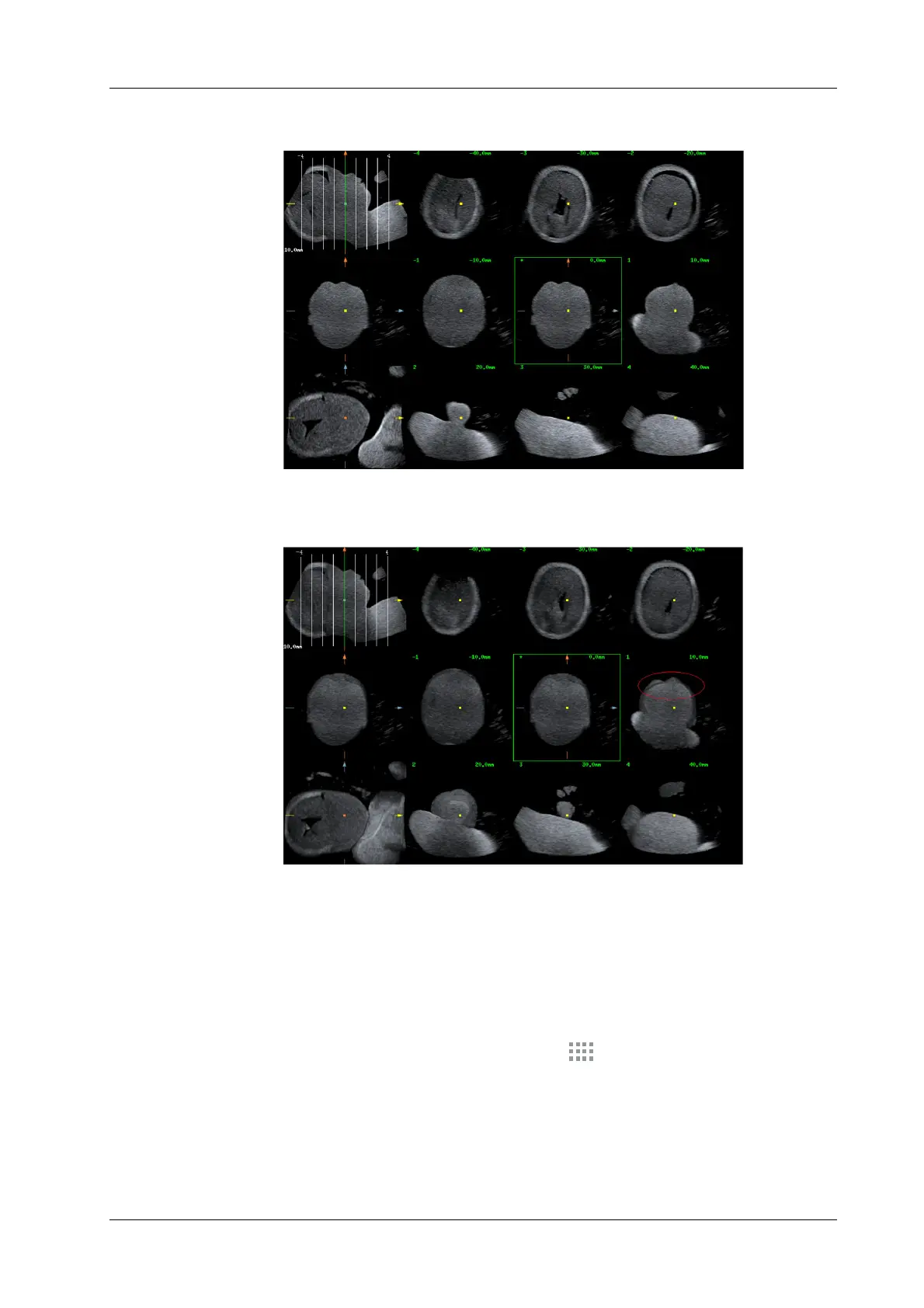

Figures below are the effect before and after the SCV function is turned on. You can see the body
structure within the range of the thickness is added to the image after the SCV function is on.
Before
After
Image rotation
Rotate <M>, <PW>, <C> to perform axial rotation or rotate <4D> knob to adjust the nearest VOI
section (cut plane) position.
Hide/show reference image
The system displays 3 standard sectional images (A plane, B plane, C plane) on the left
side indicating the position of the slice lines; tap to hide the 3 reference images,
and then slices are displayed on the whole image area.
Quick switch to single display
Select a certain slice, double click <Set> to see the slice full screen, and double click
<Set> again to return to the original display format.
