2 System Overview
Operator’s Manual 2 - 21
– For a parameter optional item: press <Set> to extend the available parameter the cursor is
positioned onto the list. Roll the trackball to locate the cursor onto the item to be adjusted,
and press <Set> to set the value.
For details about menu operation of measurements, please refer to the [Advanced Volume].
2.13.4 The Display of Touch Screen and Its Operation

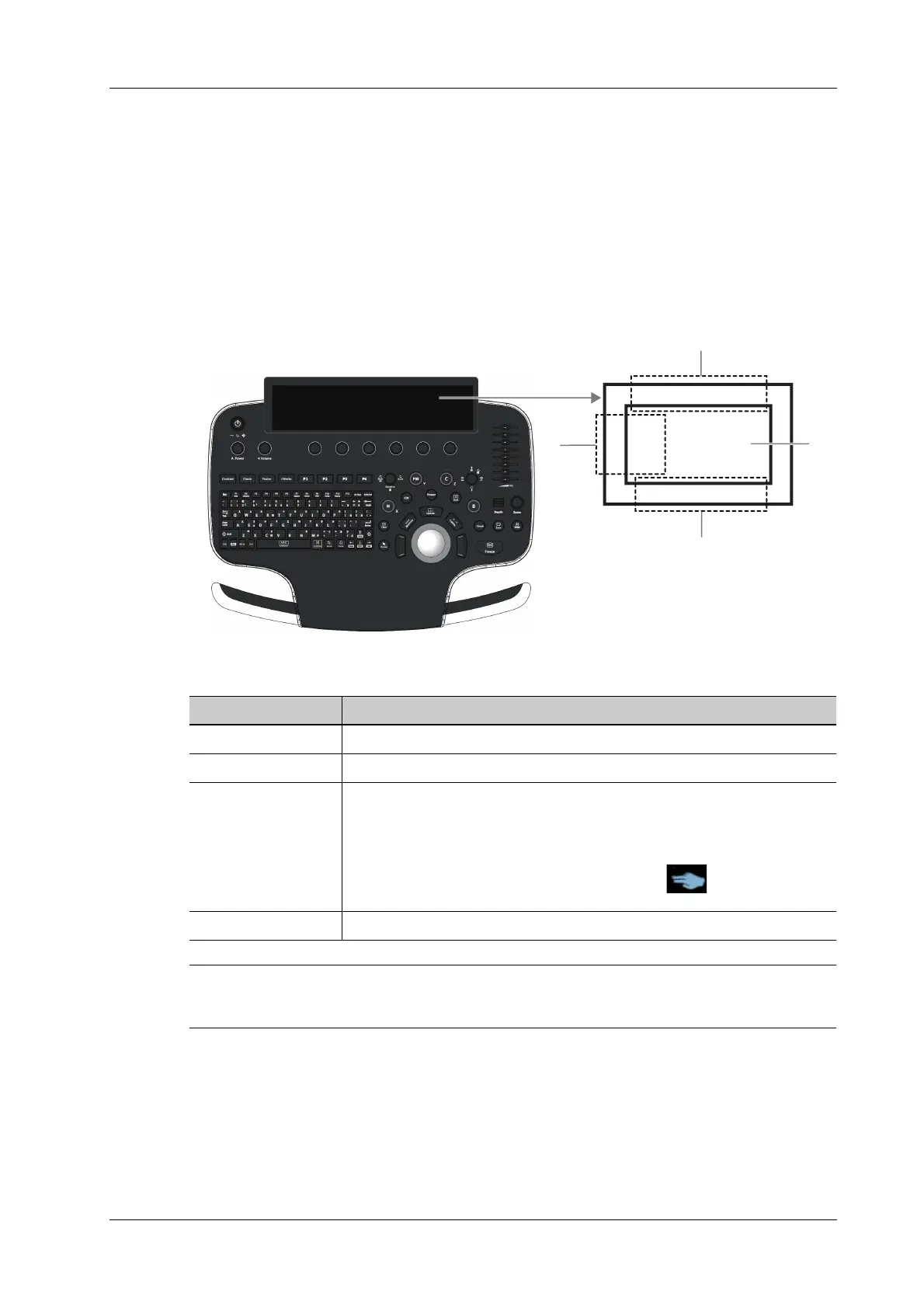

Mapping mode of touch screen
Figure 2-10 Mapping Mode
If there is a dialog box in the screen, the mapping mode is unavailable.
• Enter the mapping mode
Flip the touch screen from top to bottom (area 1). The image on the control screen maps on the
touch screen. The mapping mode appears.
• Mapping menu operations
Operation area Operations
1. Flick the edge downwards to enter the mapping mode.
2. Sweep to right to open the menus under the mapping mode.
3. The mapping menu, and toolbar are displayed. It is available to perform
the image adjustment, measures, image review, etc. see “6.1.1 Image
Adjustment”.
Under mapping or non-mapping mode, you can do fast operation using the
two-finger gesture according to the gesture hints on the bottom-
right of the screen. see “4.1.7 Gesture”.
4. Flick the edge upwards to exit.
