2 - 14 Operator’s Manual
2 System Overview
2.11 Control Panel

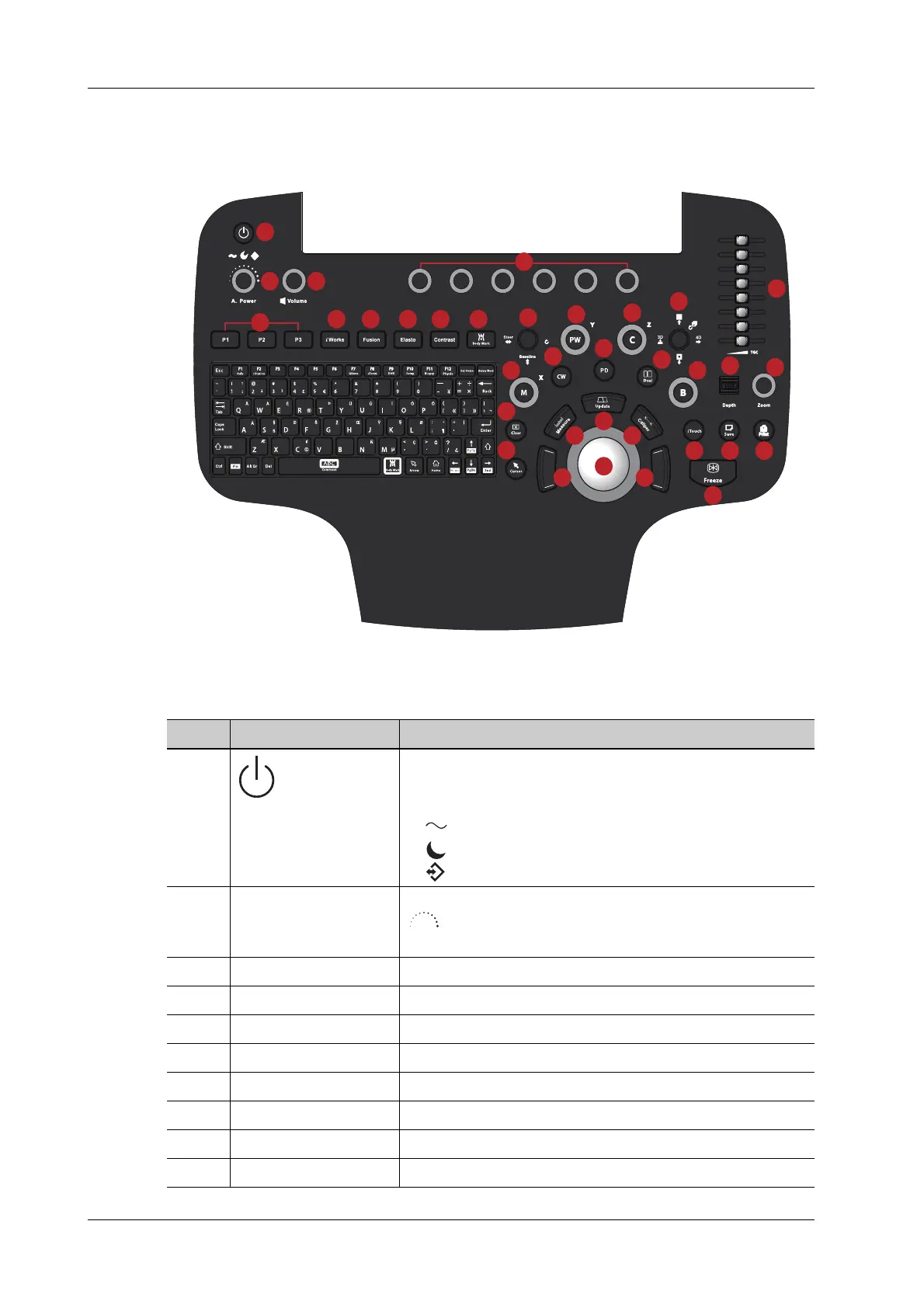

Figure 2-5 Control Panel
No. Name Description
1. Power button
• Press the button to turn on the system, the system enters
the work status and the indicator becomes green.
• AC (Alternating current). It turns green at AC supply.
• Standby. It blinks in orange in standby status.
• Hard disk indicator. It blinks when reading the disk.
2. A.power Adjust the acoustic power.
: Indicates the control or indicator to increase or
decrease a parameter.
3. Volume Adjust the volume.
4. / Adjust the corresponding functions on the touch screen.
5. P1-P3 Undefined Button, set by the user in preset. see “4 Setup”.
6. iWorks Enter iWorks.
7. Fusion Enter the fusion.
8. Elasto Enter the elastography.
9. Contrast Enter the contrast imaging.
10. Body Mark Enter the body mark status.
Angle
1
2 3
6 7 8 9
10
11
12
13
14
15
16
17
18
19
20
21
26
29
25 27
3028
34
333231
22
23
24
5
4
