6 Image Acquisition
Operator’s Manual 6 - 41
Switch cardiac cycle within the cine file
Tap [Cycle] to select when opening a cine which includes multiple cardiac cycles.
6.14.4 Myocardial Boundary Tracing
Tracing
The system provides 2 kinds of tracing method for 2 kind of sections. Long axis section (A4C,
A2C, ALAX): 3-point method and manual tracing method are both available. Short axis section
(PSAX B, PSAX M, PSAX AP): only manual tracing is available.
• 3-point method

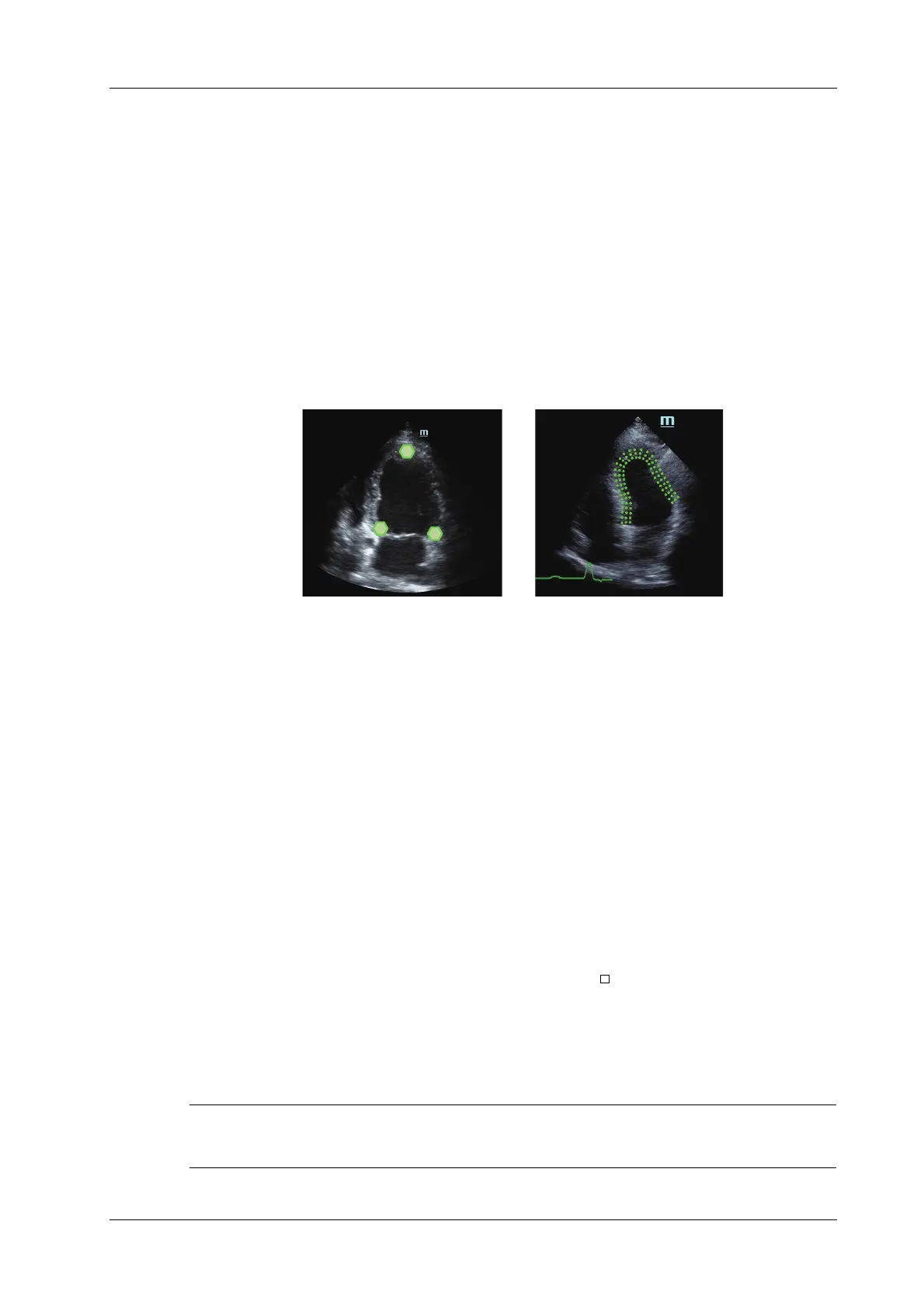

As shown in the following figure, after operation by pressing <Set> to place 3 points on the
image, the system generates the trace automatically.
• Manual trace method
Press <Set> and move the cursor by using the trackball along the boundary to add the trace
points gradually, after trace is finished, press <Set> twice to finish tracing.
NOTE:
At least 6 points should be determined by you before the system generates automated trace.
Press <Set> to make the traces on the image clockwise or anticlockwise.
Retracing
If current trace is not satisfactory, tap [Reload] on the touch screen to clear the trace and to start
another tracing.
During the tracing drawing, press <Clear> to clear already traced drawing.
Make fine adjustment to the trace
You can make fine adjustments to the trace after it is completed.
Perform the following procedure:
1. Under tracing curve adjusting status, the cursor turns into .
2. Move the cursor to the editable point, press <Set>.
3. Use the trackball to drag the curve to desired position, press <Set> again to set the point to the
new position.
4. Repeat step 2~3 above to finish all points that need adjustment.
NOTE:
Under tracking status, tap [Edit] on the touch screen to enter the status.



