2 System Overview
Operator’s Manual 2 - 19
2.13.2 Dialog Box
A dialog box screen consists of title, page tabs, contents and buttons, etc.

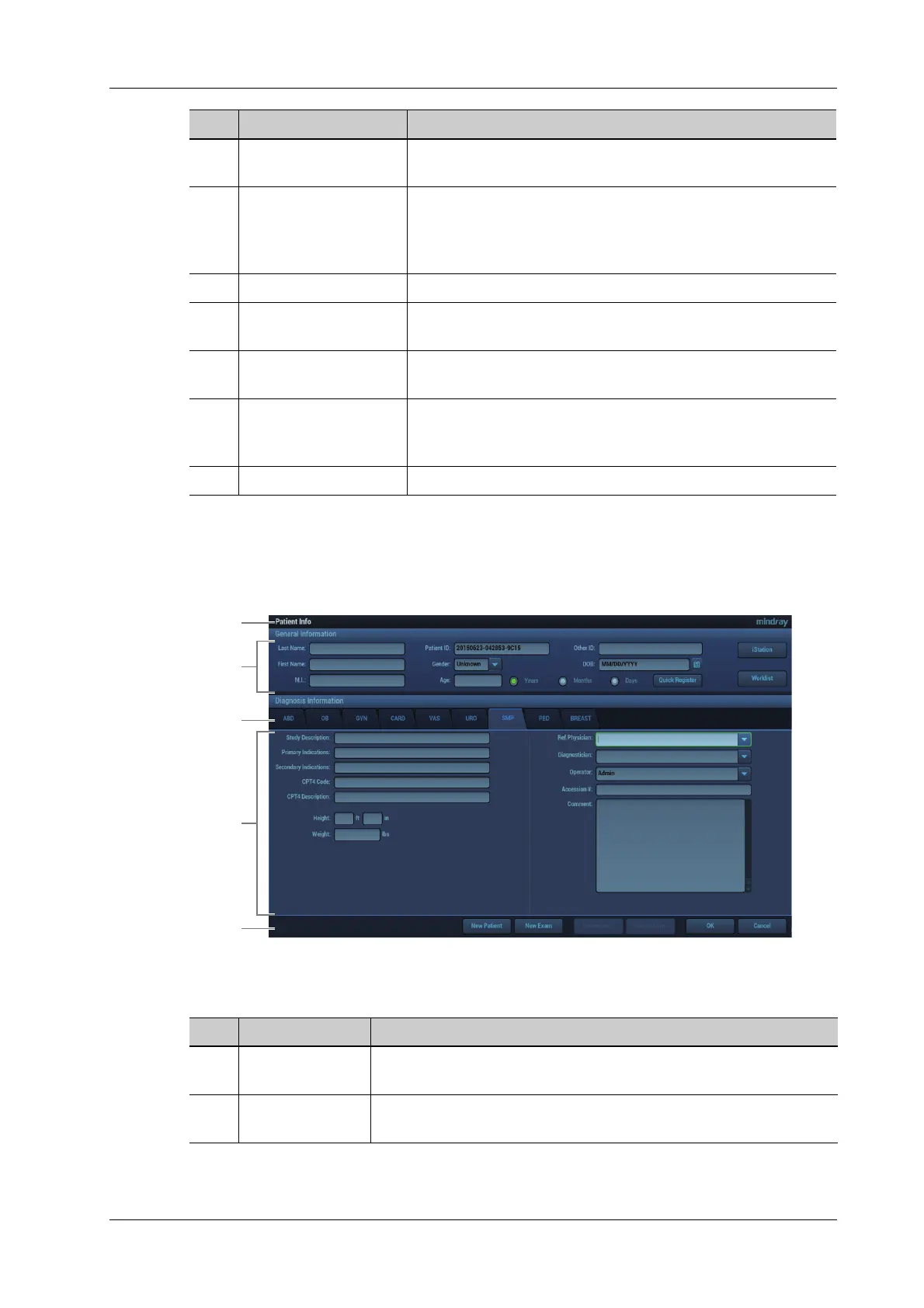

Figure 2-8 Dialog Box
5. Cine Review Area Displays the cine review progress bar to indicate the cine replay
progress.
6. Hint (trackball and
<Set> key function
indications)/Soft Menu
Area
• Displays the current functions of trackball and <Set> keys.
• Displays the items that simultaneously appear at the bottom
of the touch screen.
7. Help Information Area Displays various help information items.
8. System Icons Area Displays the relevant system icons, such as USB memory
device, printer, network, and current system time, etc.
9. User-defined Key Area Displays the functions for the user-defined keys. see “4.1.6 Key
Configuration”.
10. Parameters Area Displays the image parameters for the active window. If there
are more than one imaging modes, the parameters are displayed
by each mode.
11. Thumbnails Area Displays the thumbnail images stored under the current patient.
No. Item Description
No. Item Description
1. Title bar The title bar is used to give a description for the content and function
of the screen.
2. Page Tab For some screens, contents are distributed into several pages. Use
<Set> to open/close the available pages.
To Next Page
