9-68 Structure and Assembly/Disassembly

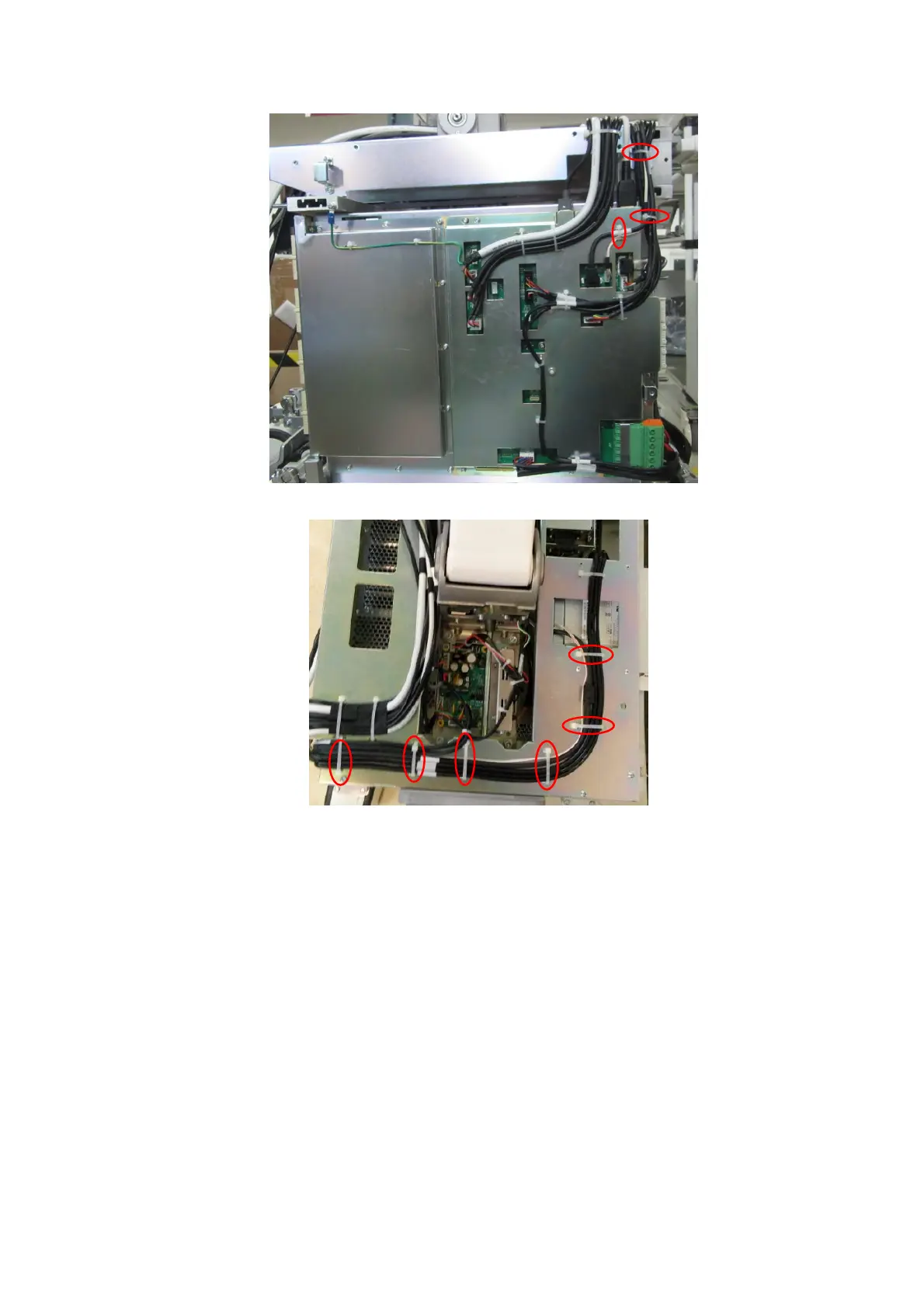

3. Cut 6 tie cables CHS-4X150 with diagonal cutting pliers.
4. Unscrew 2 M4 X12 cross panhead screws from DVD assembly with the screwdriver (M3, M4),
and unplug the power supply cable of the driver and the SATA cable (009-004588-00) from the
right side of the main unit, and then remove DVD assembly (FRU).
To Next Page
