6 Image Acquisition
bar appears on the screen. The ultrasound cine plays automatically after the capturing is
finished.
NOTE:
The Ultrasound System selects one premium phase of respiration curve automatically after
the capturing is finished. It is prepared for the motion modeling. You can set the start frame
and end frame to select one phase of the respiration curve.
Respiration Curve Description:

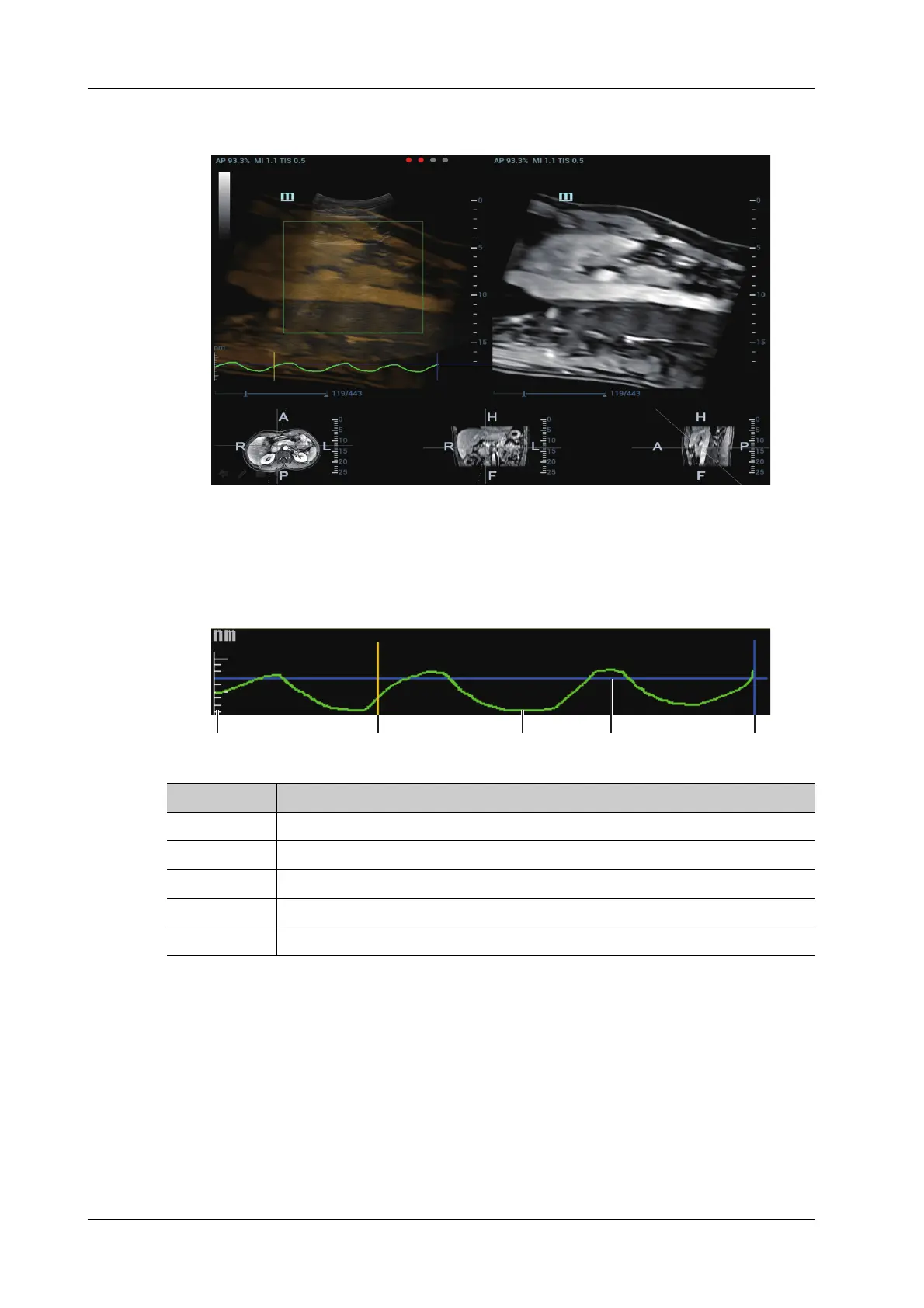

3. Tap [Set Modeling ROI] to highlight it (it is activated by default). Move the trackball to set
ROI position and size.
Set ROI position and size. Envelope the liver with the ROI.
No. Description
1. Respiration Curve Scale (respiration depth).
2. Set Modeling start (start point of motion modeling of the respiration curve).
3. The green curve is the respiration depth in real-time respiration.
4. The blue curve is the respiration depth at last registration.
5. Set Modeling End (end point of motion modeling of the respiration curve).
