9-36 Structure and Assembly/Disassembly

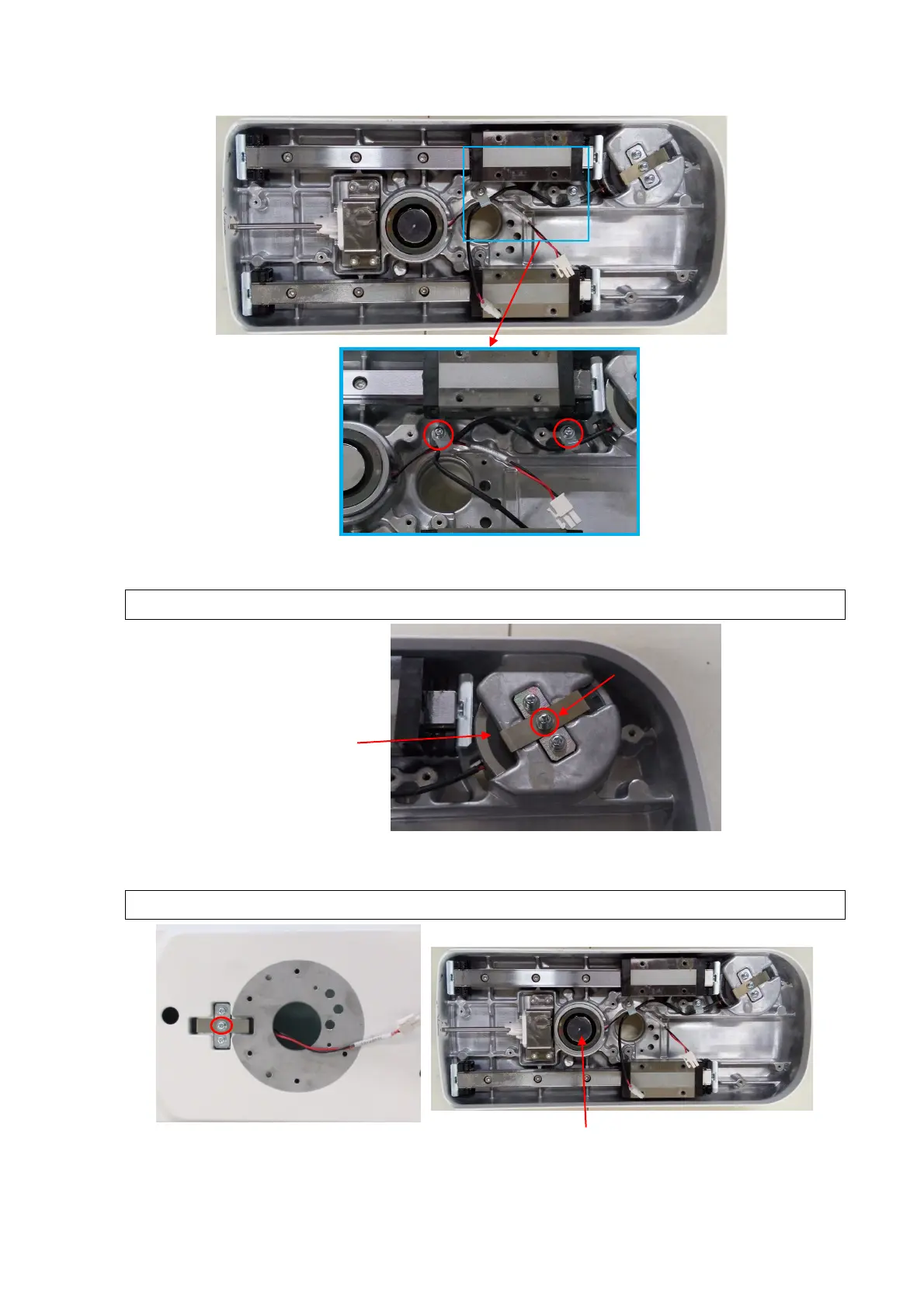

4. Unscrew 1 M4 X 12 cross panhead screw with the screwdriver (M3, M4) to remove the 120 kgf
magnetic navigation plate.
Note:
The plate spring should face the magnet when installing the electrical magnet.
5. Unscrew 1 M4 X 12 cross panhead screw with the screwdriver (M3, M4) to remove the 75 kgf
magnetic navigation plate.
Note:
The plate spring should face the magnet when installing the electrical magnet.
Electromagnet 75 kgf
Plate spring
Electromagnet
120kgf
