7 - 10 Operator’s Manual
7 3D/4D

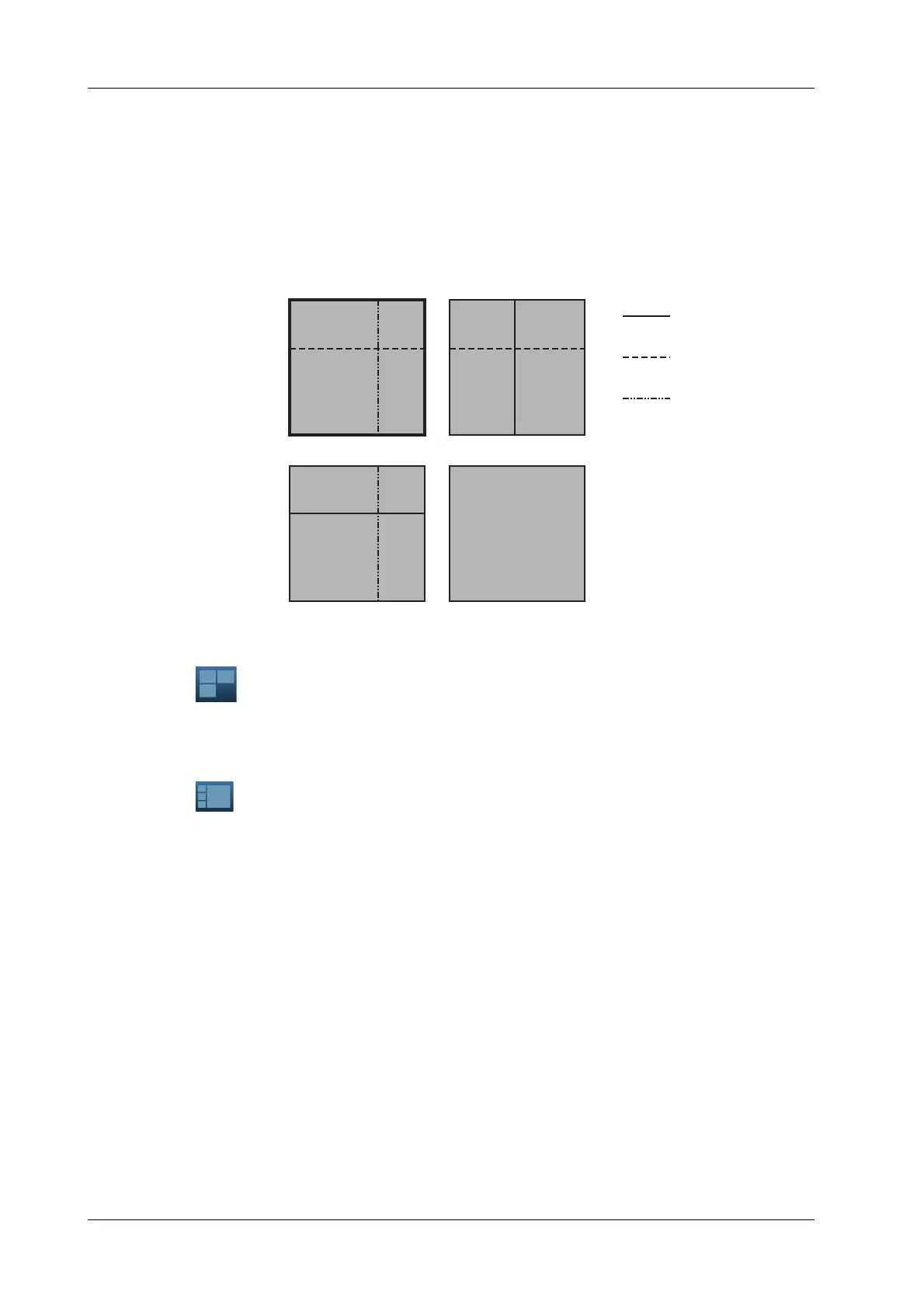

• The color of window A is blue, and the color of the lines (representing section A) displayed in
the other two windows is blue as well.
• The color of window B is yellow, and the color of the lines (representing section B) displayed
in the other two windows is yellow as well.
• The color of window C is orange, and the color of the lines (representing section C) displayed
in the other two windows is orange as well.
Positions of the other two sectional planes are indicated in the selected plane. You can roll the track
ball to change the position.
MPR Only
Tap on the touch screen to display section images. And the adjustable image parameters are
changed into MPR parameters automatically.
Only A, B and C section images are displayed, and 3D image is not displayed.
Asymmetric
Tap on the touch screen to display section images along with 3D image.
View Direction
The Region of Interest (ROI) contains the section of the volume you want to render. You can adjust
the view direction of the ROI.
