14 Measurement, Comments and Body Mark
Operator’s Manual 14 - 5
– Adjust the arrow size: rotate the knob under the [Arrow Size] button on the touch screen
to change the size.
3. Press <Set> or <Enter> to anchor the arrow position, and then the arrow becomes yellow.
4. Press <Arrow> or tap [Arrow] on the touch screen to exit the arrow comment status.
Trace
In comment status, tap [Trace] on the touch screen to activate trace function, and the current image
is also displayed on the touch screen.

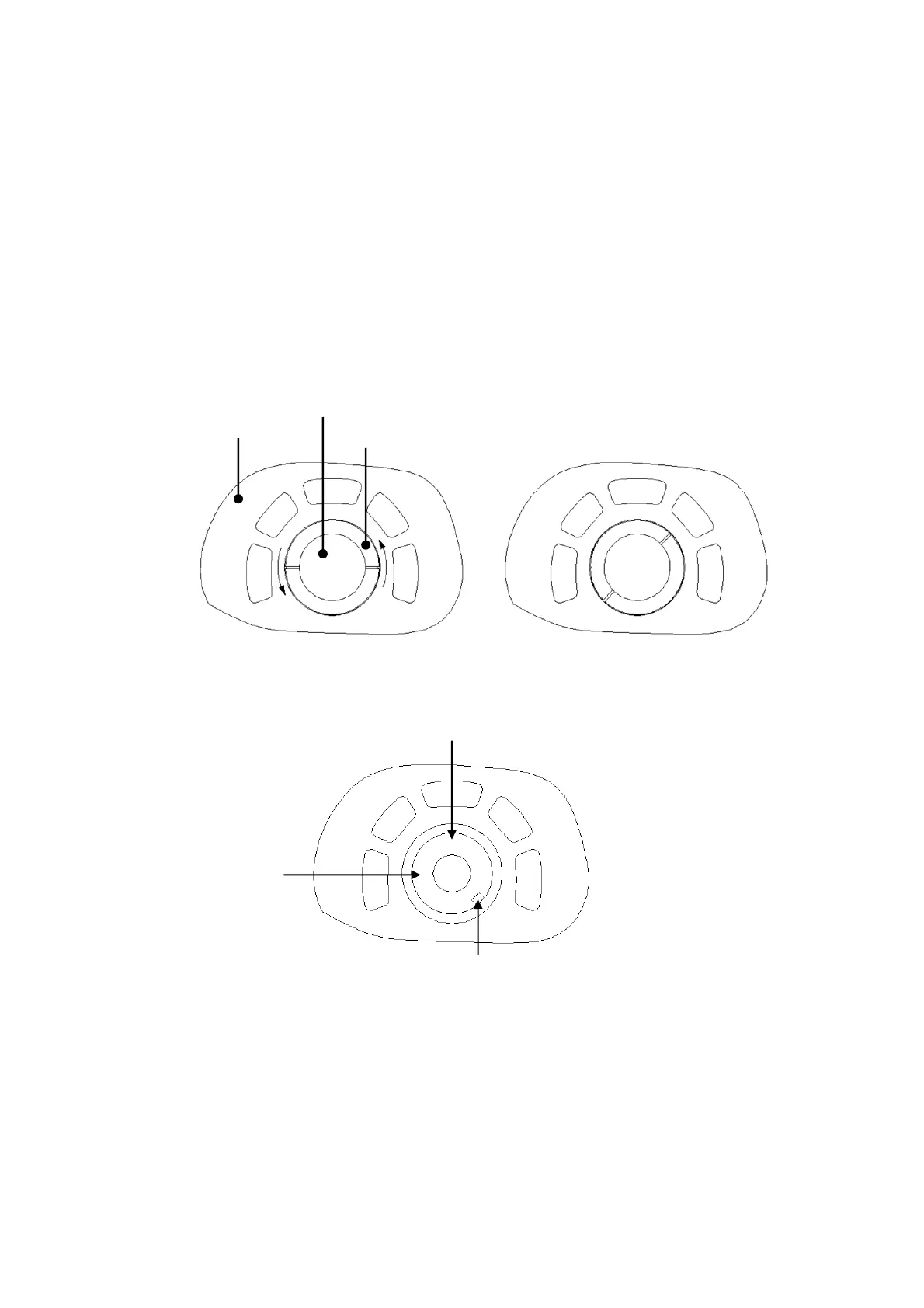

Using the control panel:
1. Use the trackball to move the cursor to a desired position, and press <Set> to confirm the start
point.
2. Use the trackball to move the cursor along the edge of the desired region and trace the outline
of the region.
– Rotate the <Angle> knob counter-clockwise to cancel 1 pixel of trace.
– Rotate the <Angle> knob clockwise to restore 1 pixel of trace.
– Short press <Clear> to clear last trace. Long press <Clear> to delete all tracing.
3. Press <Set> to finish the tracing.
Using the touch screen:
1. Trace around the ROI by taping the touch screen image using your finger.
2. Remove your finger to finish the tracing.
– [Clear]: tap to delete the trace in reverse order one by one.
– [Clear All]: tap to delete all traces.
3. Tap [Exit] to exit the tracing.
14.2.3 Moving Comments
NOTE:
If image size and position changed due to display format switching, then the position of the
comment can be changed, too.
Perform the following procedure:
1. Select the comment to be moved.
2. Use the trackball to move the comment to the new position.
3. Press <Set> to anchor the comment in the new position, and the comment-moving operation is
complete.
14.2.4 Editing Comments
Modifying characters
Perform the following procedure:
1. In comment status, move the cursor onto the comments to be modified.
– Press alphabetic keys to enter the character to the cursor position directly.
– Or, double press <Set> to enter comment editing status, and use the direction-control keys
to move the cursor to the desired location to insert/delete characters; you can either type
characters by pressing the corresponding keys or select the new comment text from the
menu.
