17 - 10 Operator’s Manual
17 Probes and Biopsy

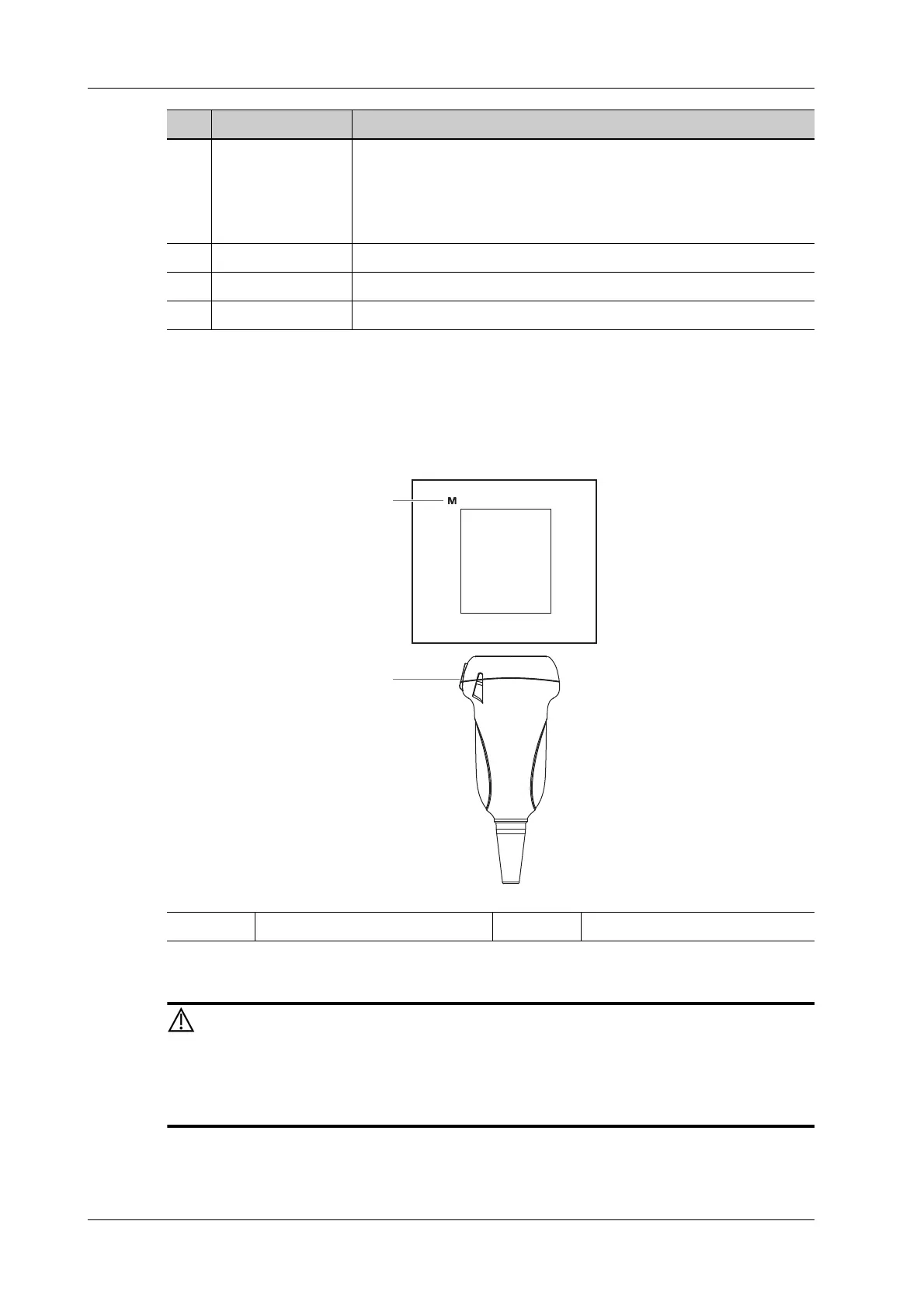

17.1.2 Orientation of the Ultrasound Image and the Probe
The orientation of the ultrasound image and the probe are shown as below. The “M” side of the
ultrasound image on the monitor corresponds to the mark side of the probe. Check the orientation
before the examination (Using a linear probe as an example).
17.1.3 Procedures for Operating
Disinfect the probe and sterilize the needle-guided bracket before and after an
ultrasound-guided biopsy procedure is performed. Failure to do so may cause
the probe and the needle-guided bracket becomes a source of infection.
2. Needle-guided
bracket fix tabs and
grooves
Provides mounting support of the needle-guided bracket.
NOTE:
This structure of probes in the figure above may vary with the
matched needle-guided brackets.
3. Probe cable Transmits electrical signals between the probe head and connector.
4. Probe connector Connects the probe to the ultrasonic diagnostic system.
5. Lock handle Locks the connector to the ultrasonic diagnostic system.
No. Item Description
1Orientation mark 2Mark
