1.10 Serial Port to Serial Port Cable
(P/N 0012-00-1275-01)

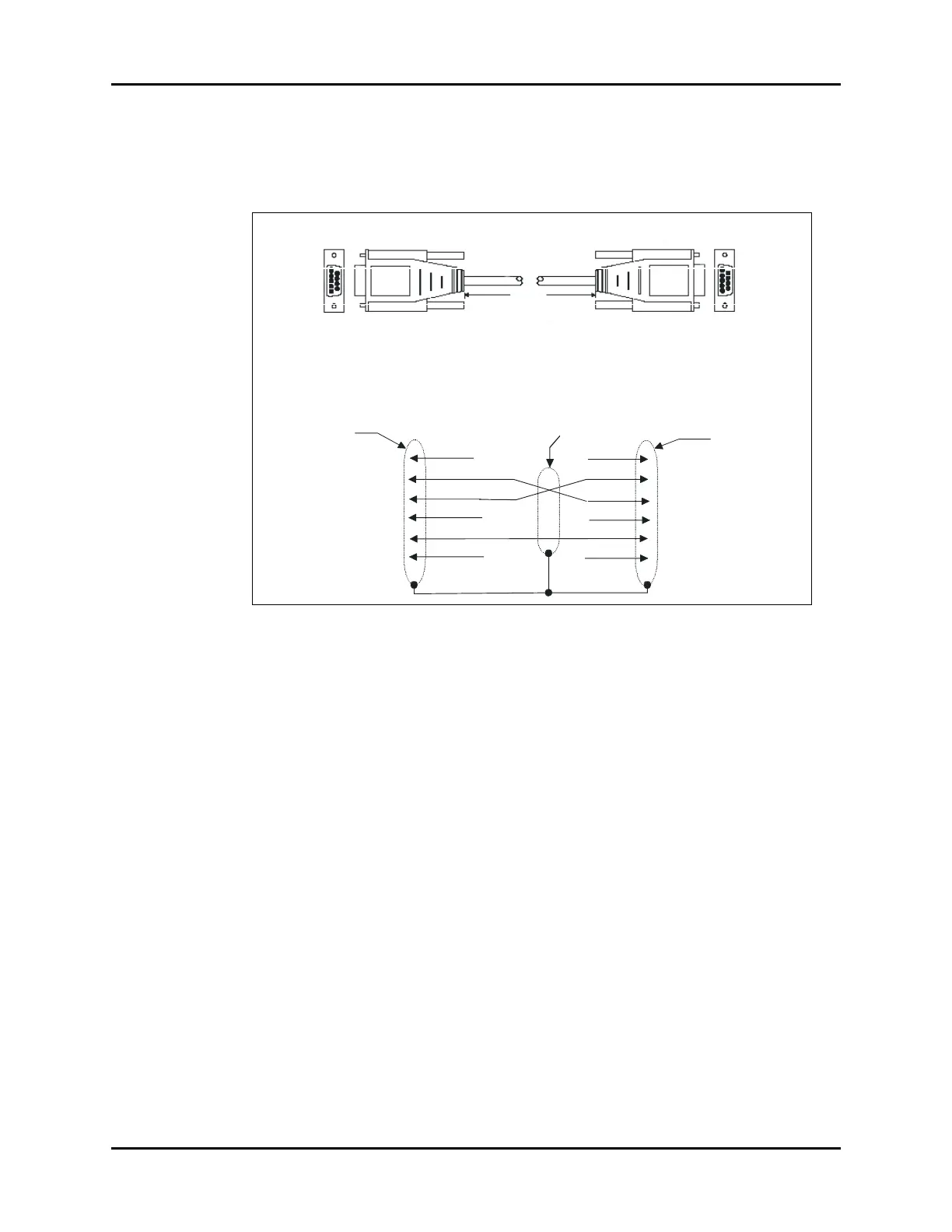

FIGURE 1-4 Serial Port to Serial Port Cable (P/N 0012-00-1275-01)
Connector Shield
Connector Shield
Cable Shield
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
1
2
3
4
5
6-9
1
2
3
4
5
6-9
P1 P2
Female
Female
P1 P2
10 ft +/-1 in.
