Mindray Spectrum - NIBP Troubleshooting

Troubleshooting Menus Repair Information
1 - 24 0070-10-0556-02 Spectrum
®
/Spectrum OR
™
Service Manual
1.25.2 NIBP Troubleshooting
No ECG Waveform Gain set too low. Readjust as required -
(Set via the SIZE key).
Lead wires and patient cable
not fully or properly inserted.
Check for proper insertion.
Cable or lead wires damaged. Check with lead continuity
tester.

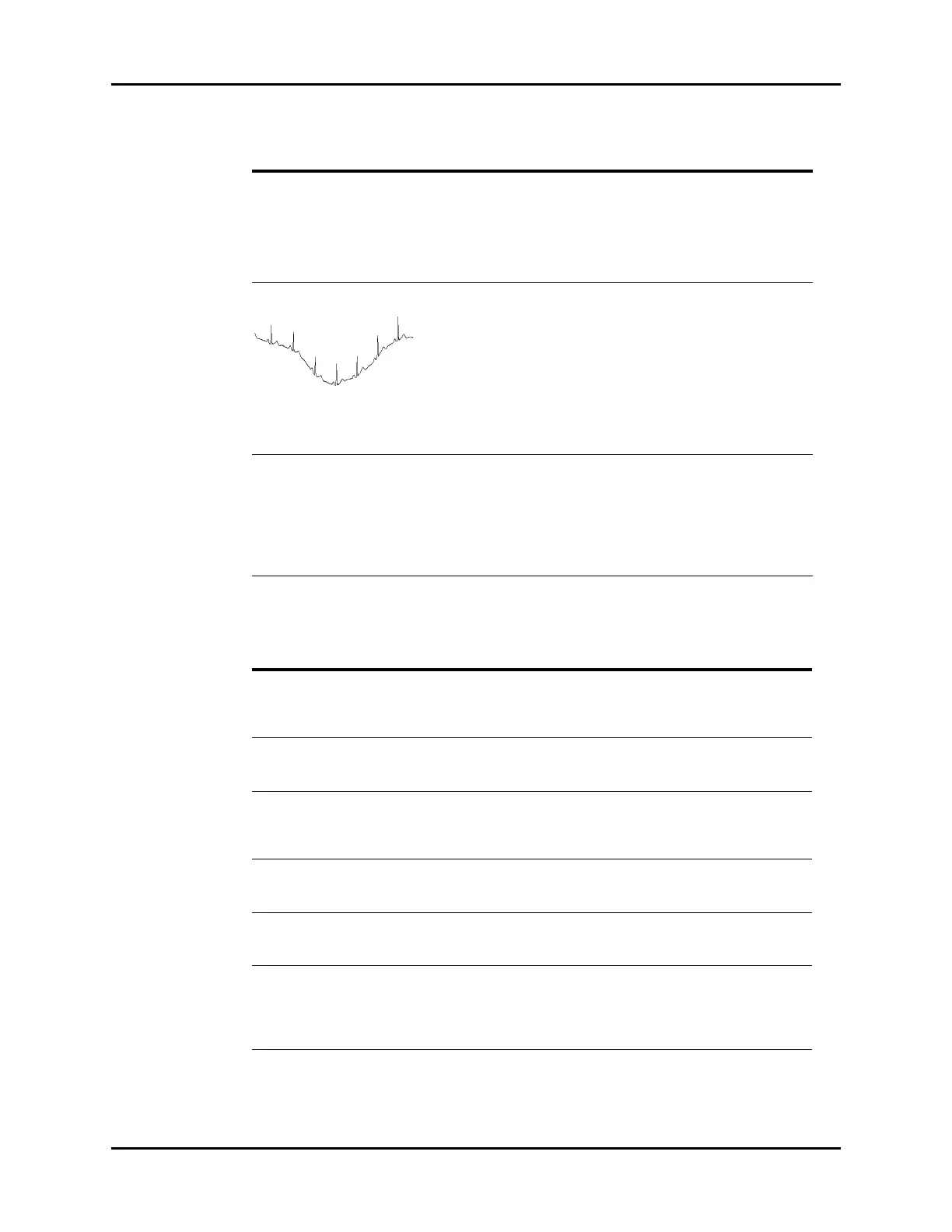

Base Line Wander Patient moving excessively. Secure lead wires and cable to
patient.
Patient's respiration Reposition electrodes
Electrodes dry or loose Re-prep skin and apply fresh,
moist electrodes.
Static build up around patient. Check with local biomedical
personnel.
ECG Filter set to “ST” or
“Extended” mode.
Set ECG Filter to “Monitor”
mode.
“Artifact” Message The 12-lead ECG is detecting
muscle artifact, or electrical
interference from auxiliary
devices.
Check leads, follow skin
preparation procedure.
Check for electrical
interferences, replace wires as
necessary.
MESSAGE/PROBLEM REASON SOLUTION
MESSAGE/PROBLEM REASON SOLUTION
NIBP: Idle Displayed while system is idle.
Note: This is not displayed
while in the interval mode.
Press START to take a single
measurement. Select an
interval and start timed
measurements.
NIBP: Deflate Displayed when a measurement
that is in process is stopped by
pressing the STOP key.
Press START to take an
immediate measurement and
resume timed measurements.
NIBP: Interval Displayed during the interval
between two timed measurements.
Press STOP to suspend timed
measurements.
Change timer to OFF to stop
timer.
NIBP: Failure The system has detected an
unrecoverable failure of the NIBP
system.
Power cycle unit. If message
reappears, contact Customer
Support.
NIBP: Measuring Displayed during a measurement.
Cuff pressure is also displayed.
Press STOP to suspend a
measurement and deflate the
cuff.
NIBP: Retry Pump Higher A measurement has been
attempted but no reading was
possible. This results from
inadequate cuff inflation.
Retry will be attempted.
Check that appropriate
patient size is set.
Preset initial inflation
pressure.
