Diagnostics Calibration Procedure
4 - 8 0070-10-0556-02 Spectrum
®
/Spectrum OR
™
Service Manual
4.4.6 NIBP Tests
The NIBP Test offers the choice of Overpressure Voltage Setpoint, Static Pressure
Calibration, Motor Pump Test, Leak Tests, Bleed Rate Test, and Overpressure Tests. The tests
mentioned above require an approved 700 cc Test Chamber (P/N 0138-00-0001-01) or
500 cc Test Chamber (P/N 0138-00-0001-03) to ensure proper test results.

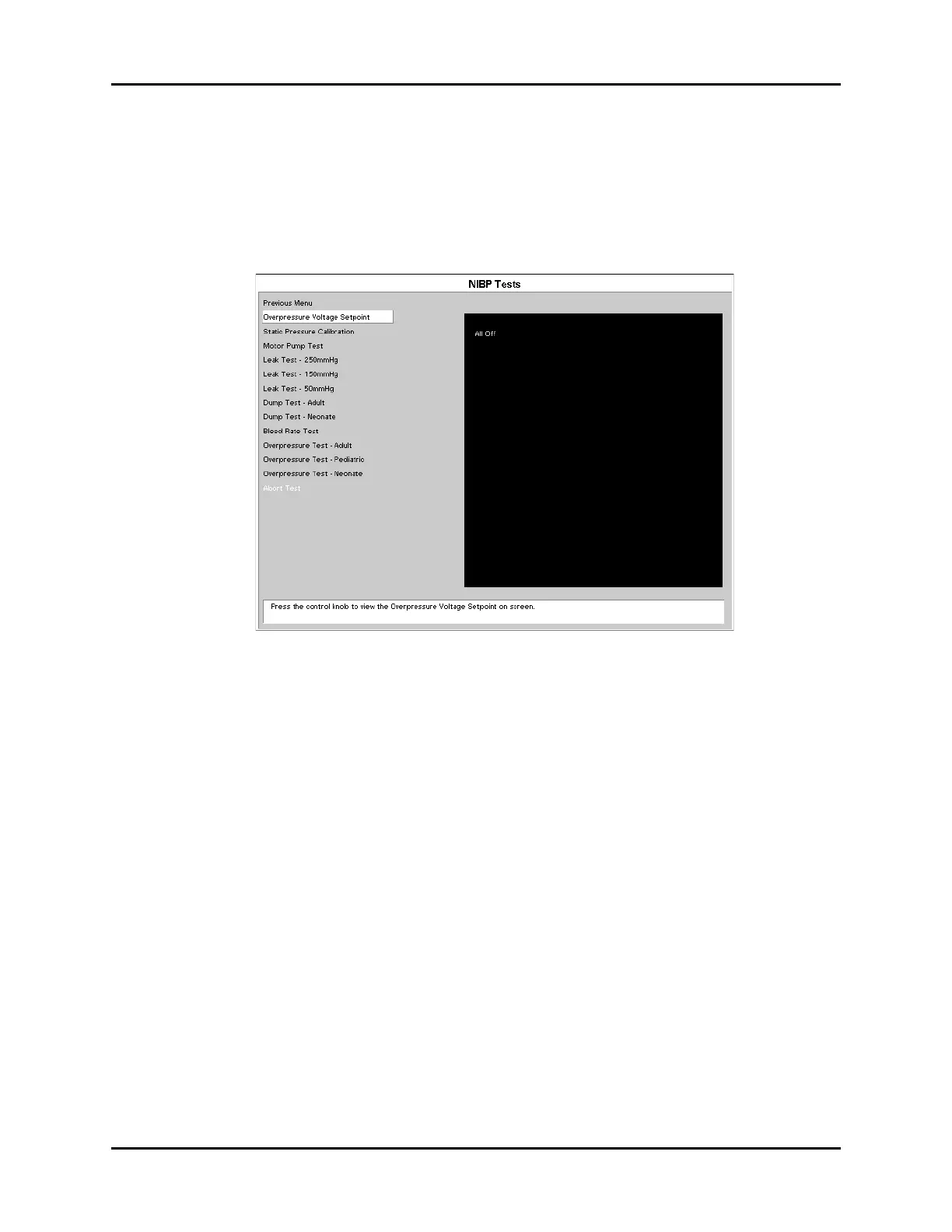

FIGURE 4-9 NIBP Tests Menu
4.4.6.1 Over Pressure Voltage Set Point
No manual adjustment is required. The voltage set point is controlled by software. If Check
Calibration/Cuff Overpresssure appears in message area of the screen, replace the
NIBP module accordingly.
Specifications: .030 to .170 volts
