4.4.3 Display Tests
The display test offers the choice of a Pixel Test or a Color Test.

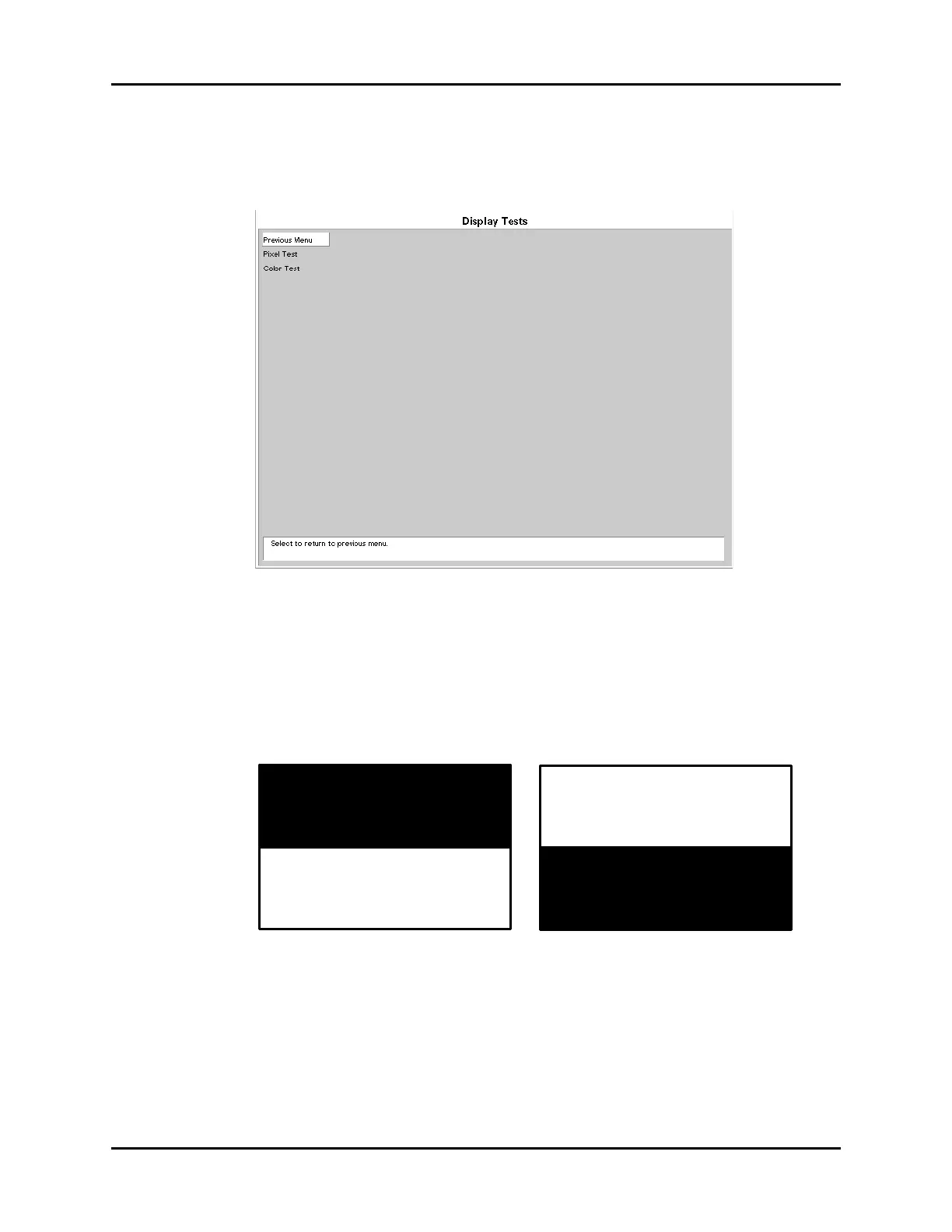

FIGURE 4-6 Display Tests Menu
4.4.4 Pixel Test
The pixel test will verify the proper operation the display. On screen one half of the screen
will be illuminated, the second half will be black. Pressing the Navigator
™
knob will
illuminate the second half of the screen, the first half will be black. Pressing the Navigator
knob a third time will activate the Display Test Menu screen.
FIGURE 4-7 Pixel Test Menu
