Service Manual 0070-10-0556-02 1 - 13
Repair Information ECG Shielded Lead Wires
1.13 ECG Shielded Lead Wires

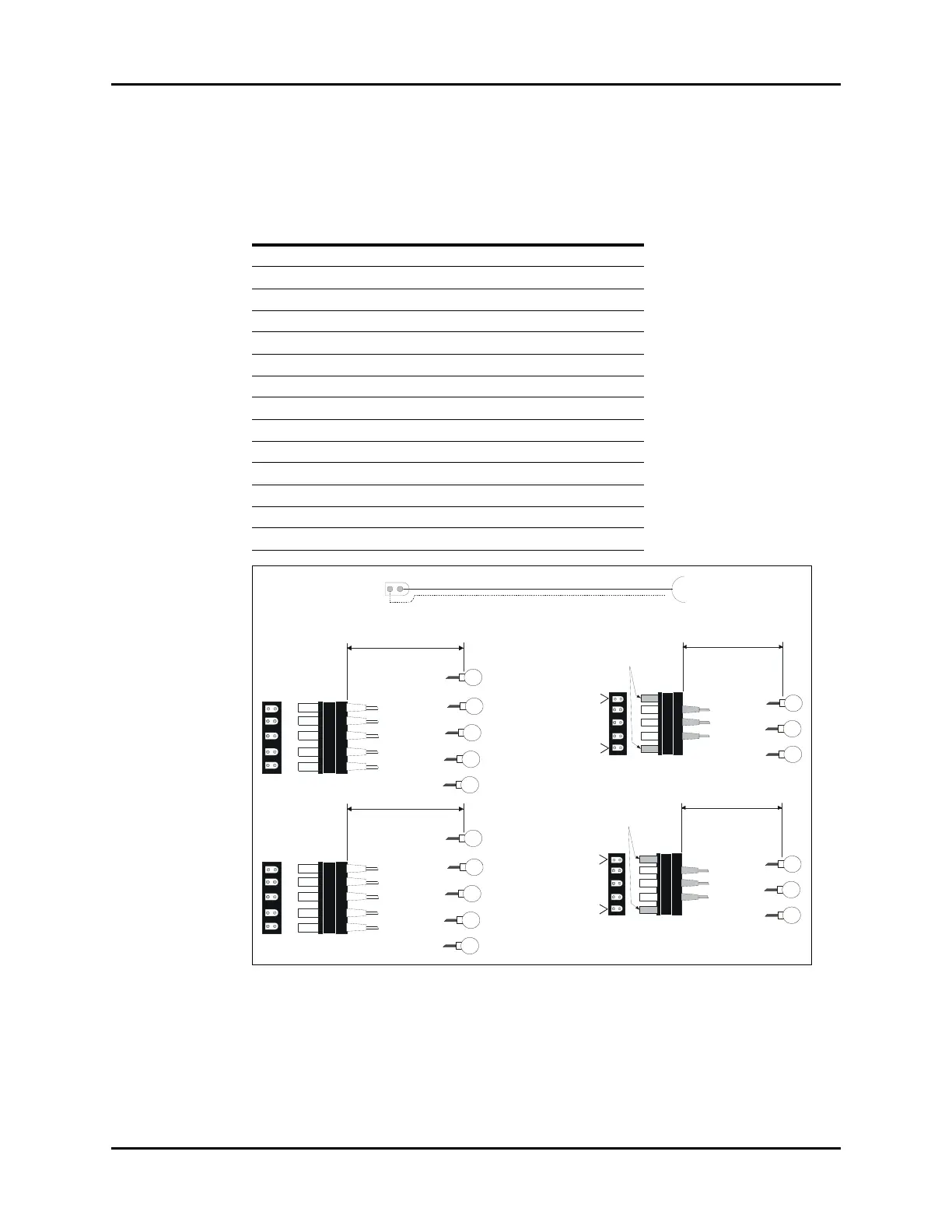

FIGURE 1-7 ECG Shielded Lead Wires
P/N 0012-00-1261-XX
DESCRIPTION DASH #
18" snap 5 lead set Domestic -01
24" snap 5 lead set Domestic -02
40" snap 5 lead set Domestic -03
18" snap 5 lead set International -04
24" snap 5 lead set International -05
40" snap 5 lead set International -06
18" snap 3 lead set Domestic -07
24" snap 3 lead set Domestic -08
40" snap 3 lead set Domestic -09
18" snap 3 lead set International -10
24" snap 3 lead set International -11
40" snap 3 lead set International -12
3/40", 2/60" snap 5 lead set Domestic -13
3/40", 2/60" snap 5 lead set International -14
GREEN
BLACK
RED
WHITE
BROWN
L" +/- 1.00"
GREEN
BLACK
RED
WHITE
BROWN
BLACK
YELLOW
GREEN
RED
WHITE
L" +/- 1.00"
BLACK
YELLOW
GREEN
RED
WHITE
BLACK
RED
WHITE
L" +/- 1.00"
TWO PINS
SHORTED
TWO PINS
SHORTED
KEYING BLOCKS
ARE TO BE THE SAME
COLOR AS LEAD WIRE
BLACK
RED
WHITE
YELLOW
GREEN
RED
L" +/- 1.00"
TWO PINS
SHORTED
TWO PINS
SHORTED
KEYING BLOCKS
ARE TO BE THE SAME
COLOR AS LEAD WIRE
YELLOW
GREEN
RED
LEAD
CONNECTOR
PATIENT END
TERMINATION
SHIELD
