a. Remove the guiding block slightly along the direction of the needle’s tail, and separate the
residual part of the needle-guide bracket and the probe from the needle.
b. Remove the support of needle-guided bracket from the probe.
NGB-011 Metal-needle undetachable needle-guided bracket
Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
b. Connect the locating groove on the clamp with the two raised edges on the probe head and
align the locating pit of the clamp with the convex point on the probe head.
c. Turn the grip knob at the tail of the needle-guided bracket tightly.
2. Remove the needle-guided bracket:
Hold the probe and the needle-guided bracket, then open the grip knob of the needle-guided
bracket.

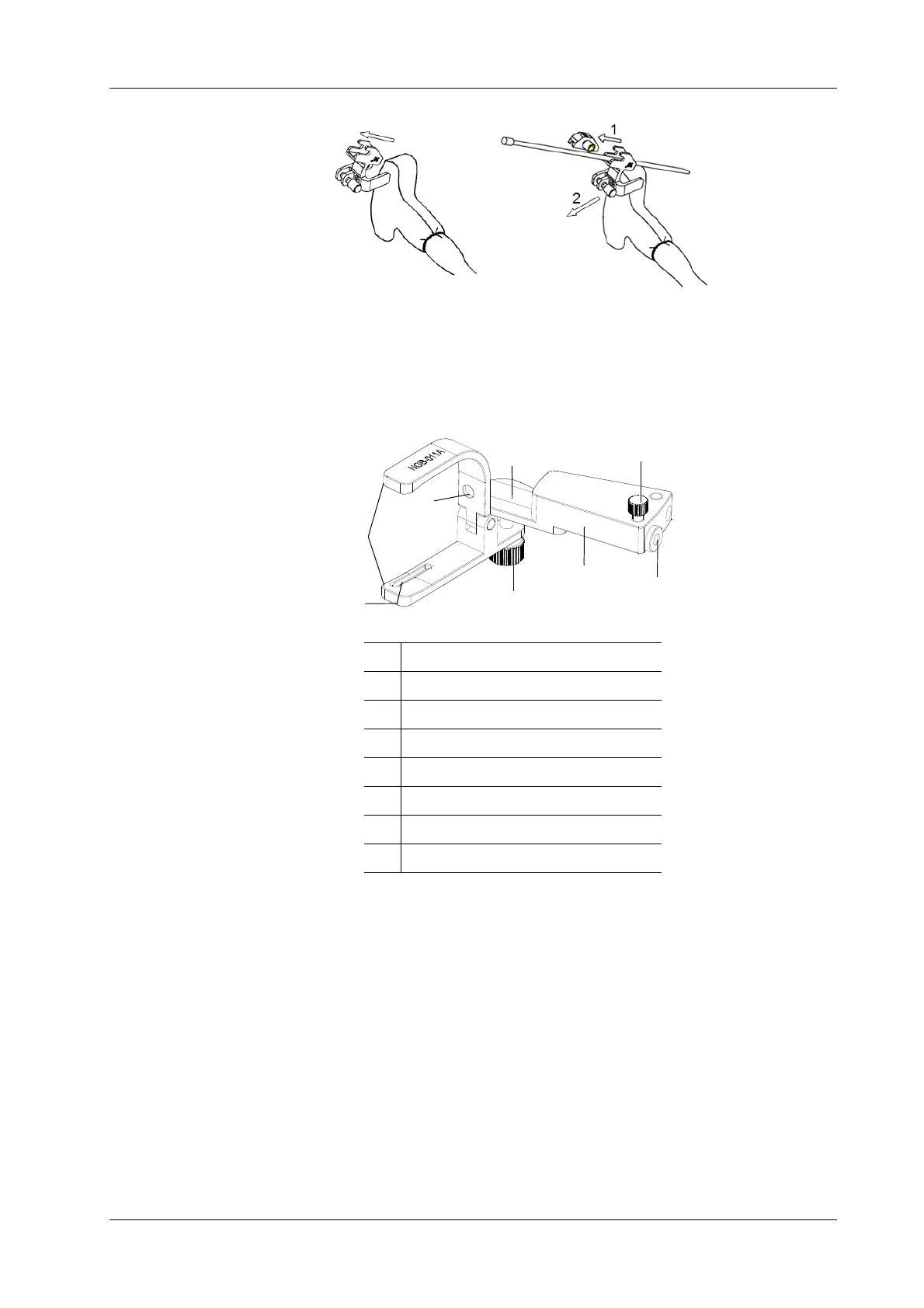

1Clamp
2 Locating groove
3 Grip knob
4 Needle guide rack
5 Needle guide hole
6 Needle guide clamping knob
7 Needle guide
8 Locating pit

1
2
8
3
4
5
6
7
