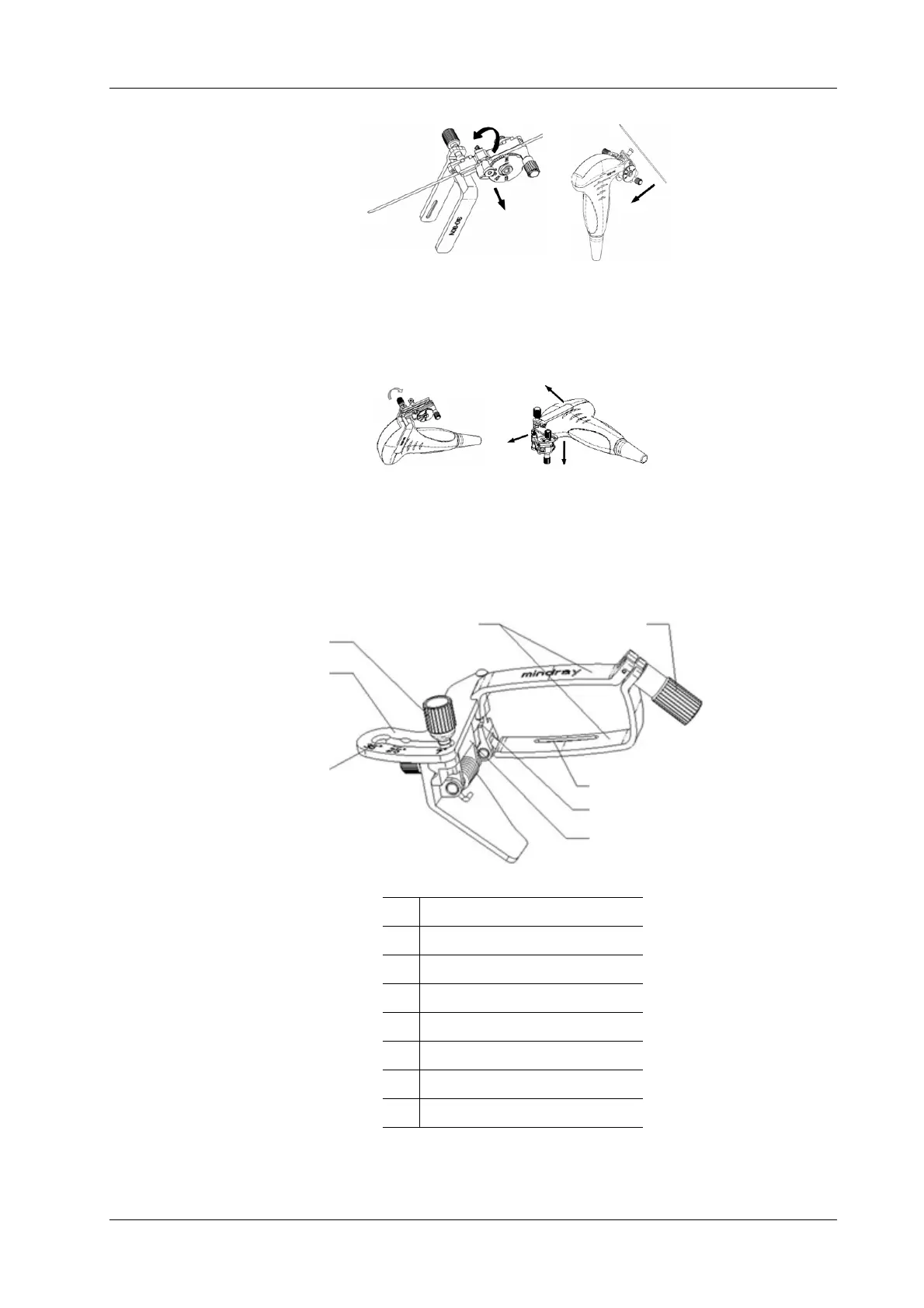

a. Pull the lock pin and open up the V-shaped cover to expose the needle.
b. Separate the bracket and the probe from the needle.
5. Remove the needle-guided bracket:
a. Screw the pinch nut to release the needle-guided bracket.
b. Separate the bracket and the probe.
NGB-024 Metal-needle detachable needle-guided bracket
Perform the following procedure:
1. Install the needle-guided bracket:
1 Angle locking nut
2 Angle adjusting block
3Angle marker
4 Angle adjusting base
5Groove
6Slot
7 Right, left retaining nut
8 Right, left clamp
1
2
3
4
5
6
78
