13 Probes and Biopsy
Operator’s Manual 13 - 47
a. Put on the sterile probe sheath.

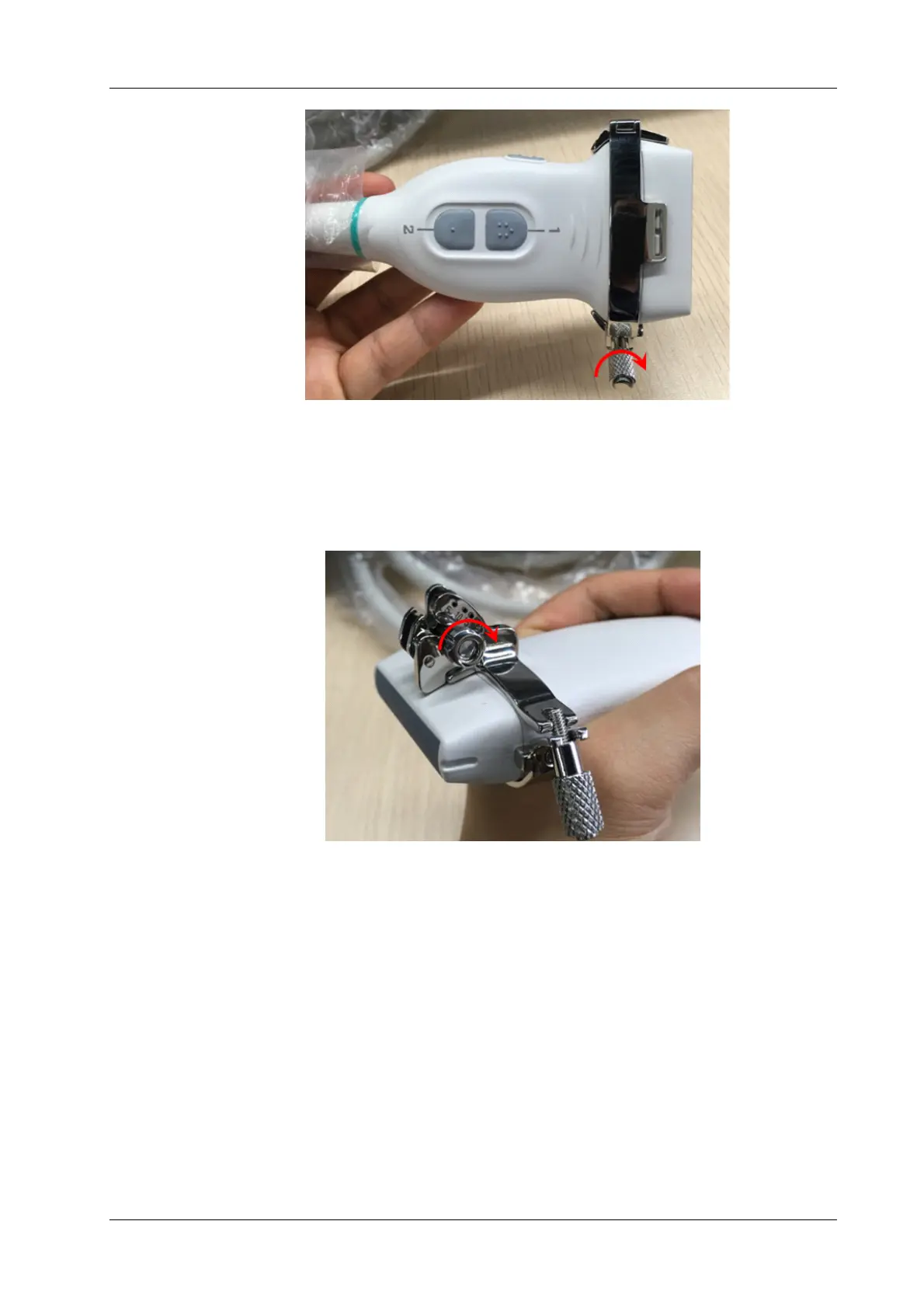

b. Hold the probe in one hand, select the correct needle-guided bracket and hold it with the
other hand. Match the grooves of the needle-guided bracket to the tabs of the probe.
c. Mount the bracket onto the probe, and rotate the locking nut to fix the bracket.
2. Adjust the needle angle to the proper shift as required:
a. Loosen the depth pinch nut.
b. Adjust the depth shift to the desired level.
c. Tighten the depth pinch nut.
3. Insert the biopsy needle:
a. Select a suitable guiding block and loosen its nut, install the guiding block to the guiding
block fixing frame, then tighten the block nut tightly.
To Next Page
