3. Device description | 3.1 - Transmitter types | 16

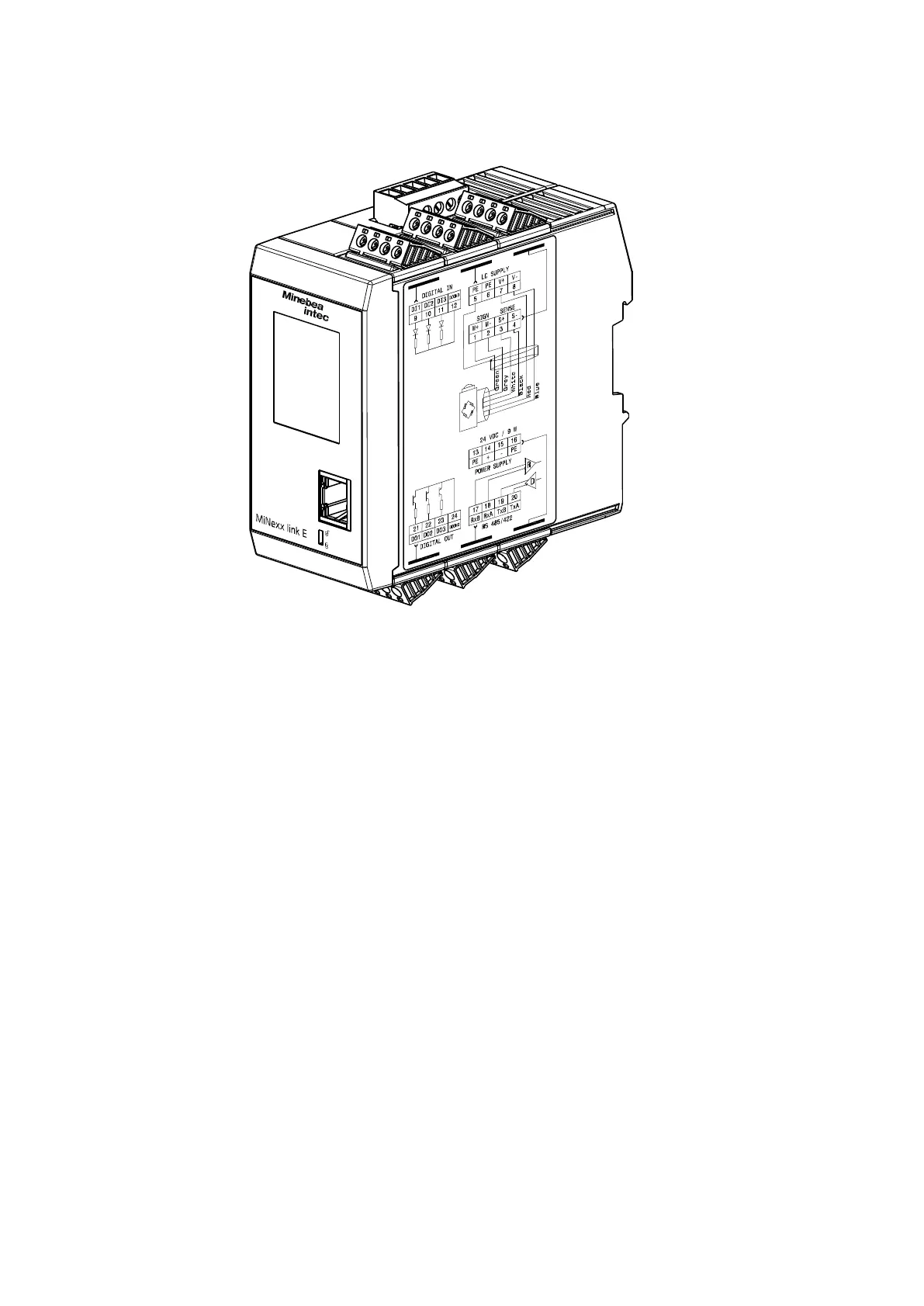

3.1.4 PR 5215/04
This type includes
– 3 digital inputs and outputs
– a port for the analog weighing electronics (ADC)
– a supply voltage connection
– a RS-485 interface
– a network port
– a DeviceNet interface
The DeviceNet connection is established by 5-pin plug connector (female) on
the top of the device.
See also ChapterOverview of connections.
