3. Device description | 14
3 Device description
3.1 Transmitter types
3.1.1 General information
The transmitters in the PR 5215 series come in 9expansion stages. Subse
quent expansion of the expansion stage is not possible. The respective type is
clearly designated by the corresponding number.
All of the devices are equipped with a touchscreen.

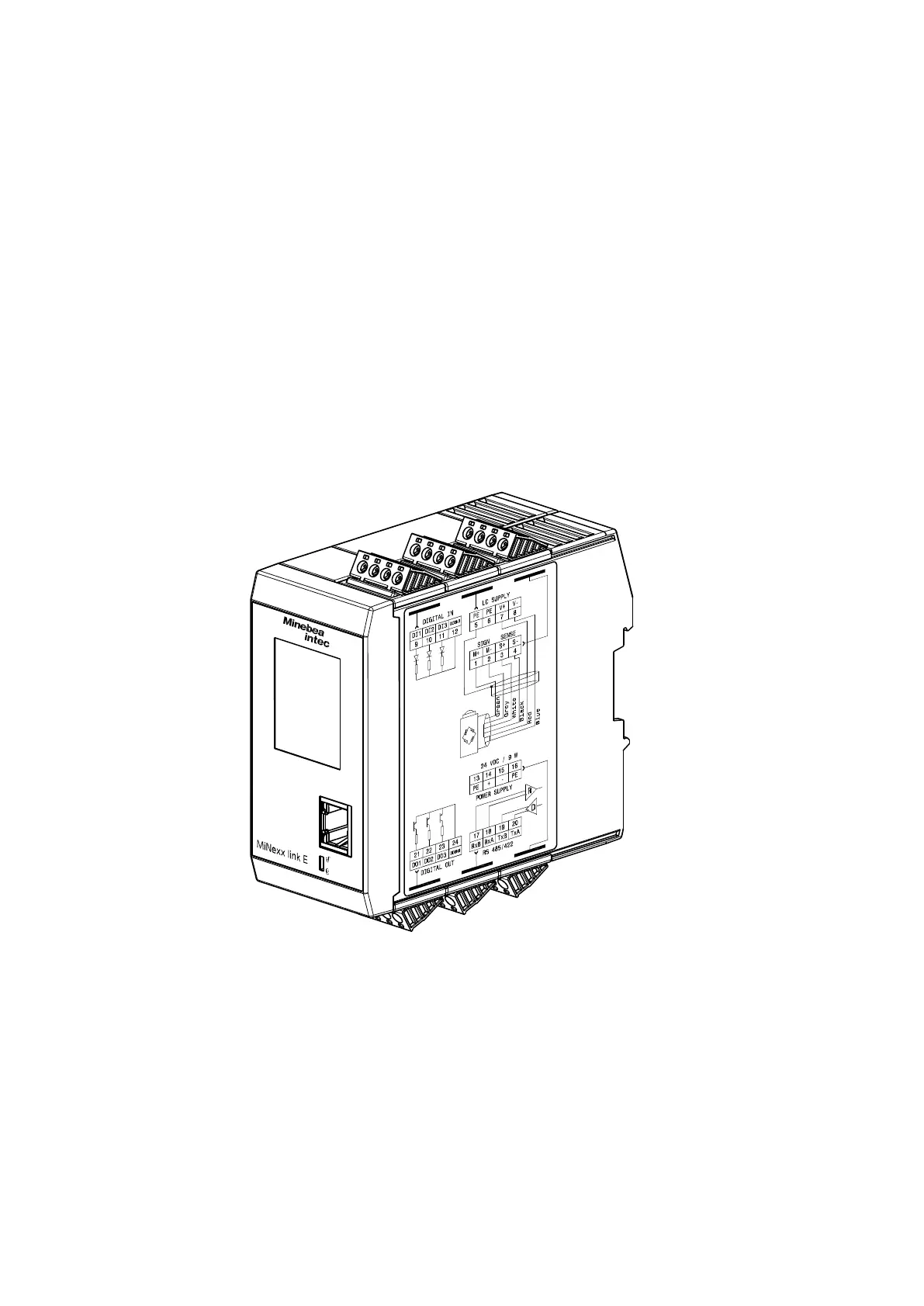

3.1.2 PR 5215/00
This type includes
– 3 digital inputs and outputs
– a port for the analog weighing electronics (ADC)
– a supply voltage connection
– a RS-485 interface
– a network port
See also ChapterOverview of connections.
