Minebea Intec MiNexx-link-E PR 5215/01 - Devicenet Interface

4. Device installation | 4.3 - Hardware construction | 52

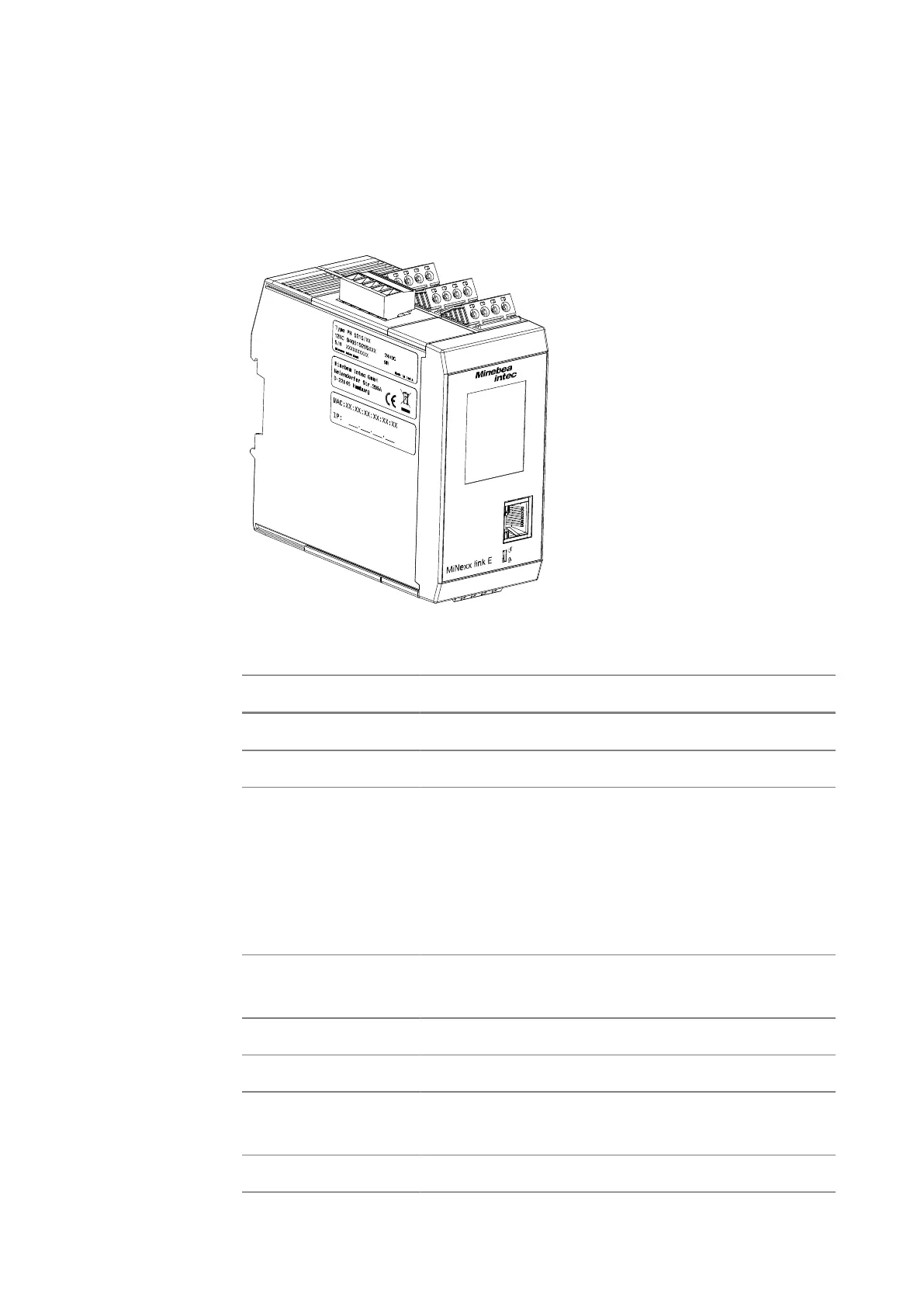

4.3.8 DeviceNet interface
The DeviceNet fieldbus is a complete DeviceNet adapter (slave) with CAN con
troller.
The interface can be configured by software.
Technical data
Description Data
External connection 5-pin plug connector (female)
Transfer rate 125, 250 and 500kbit/s
Protocol DeviceNet Master Slave
– Polling procedure (polled IO)
– CRC error recognition according to IEC62026
(EN50325)
– Max. 64station nodes
– Data width max. 512bytes "input & output"
Configuration EDS file "MINE_5215.eds"
MAC-ID (1…62)
Potential isolation yes, optocoupler and DC/DC converter
Bus termination 120Ω at the cable ends
Cable type DeviceNet; color: petrol green; 2x2 twisted pair;
screened
Cable impedance 150Ω
