4.3.6 Analog output
An active analog output is integrated into the device. The interface can be
configured by software.

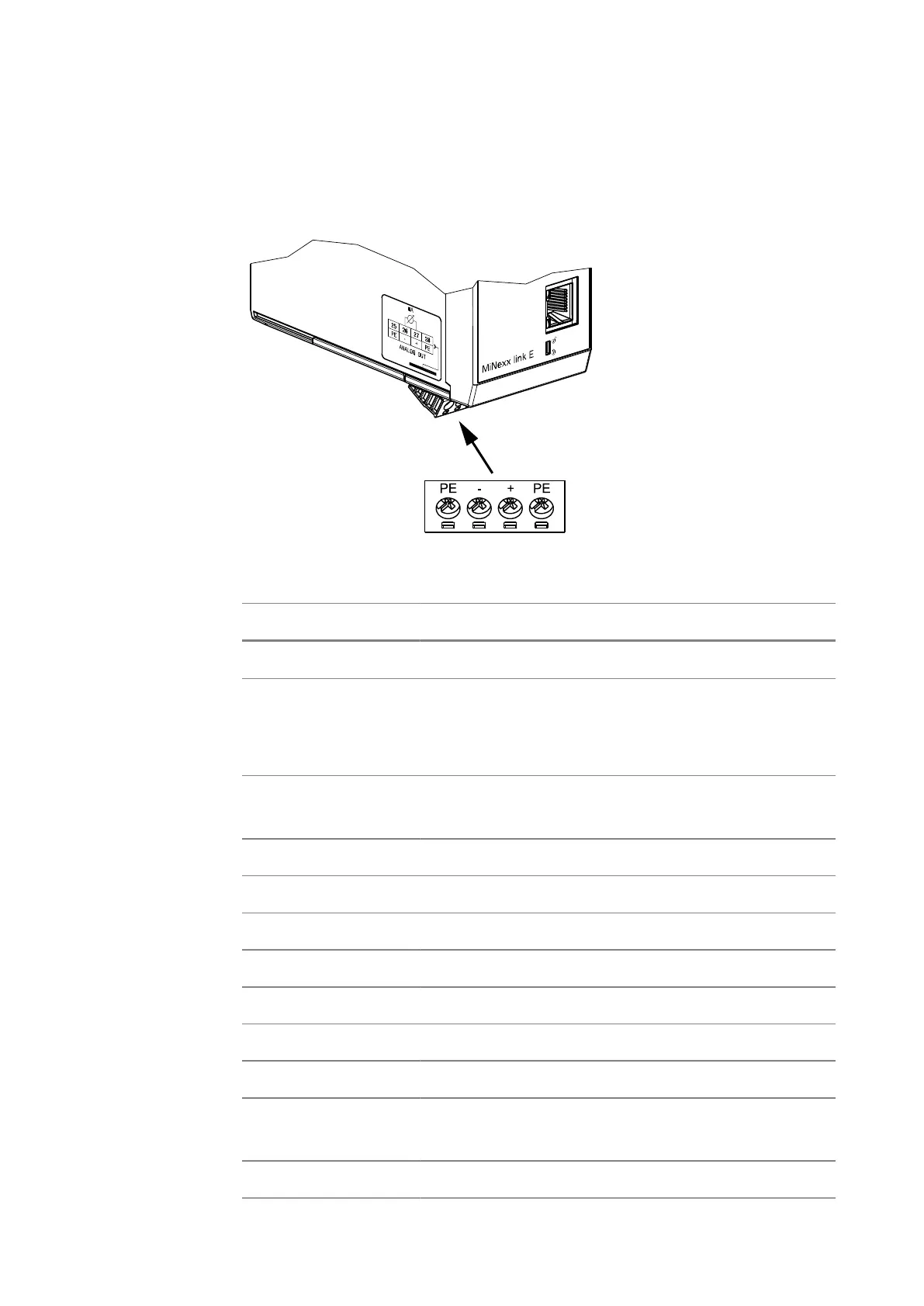

The connection diagram is located on the left side of the housing.
Technical data
Description Data
External connection 4-pin plug connector
Number 1 active current output:
0/4-20mA (max.24mA), 10V output voltage via ex
ternal 500Ω resistor
Function Gross/Net weight/Transparent/Selected, config
urable
Range 0/4-20mA, configurable
Resolution e.g. 0-20mA in max.40,000counts
Linearity error @ 0-20mA: 0.04 %; @ 4-20mA: 0.02 %
Temperature error <100ppm/K
Zero point error 0.05 %
Max. error <0.1 %
Load max. 0…500Ω
Protected against
shortcircuit
yes
Potential isolation yes
