4. Device installation | 4.3 - Hardware construction | 39
4.3.5 Connection of analog load cells and platforms
4.3.5.1 General instructions
The device is equipped with an integrated connection for analog weighing
electronics. The interface can be configured by software.

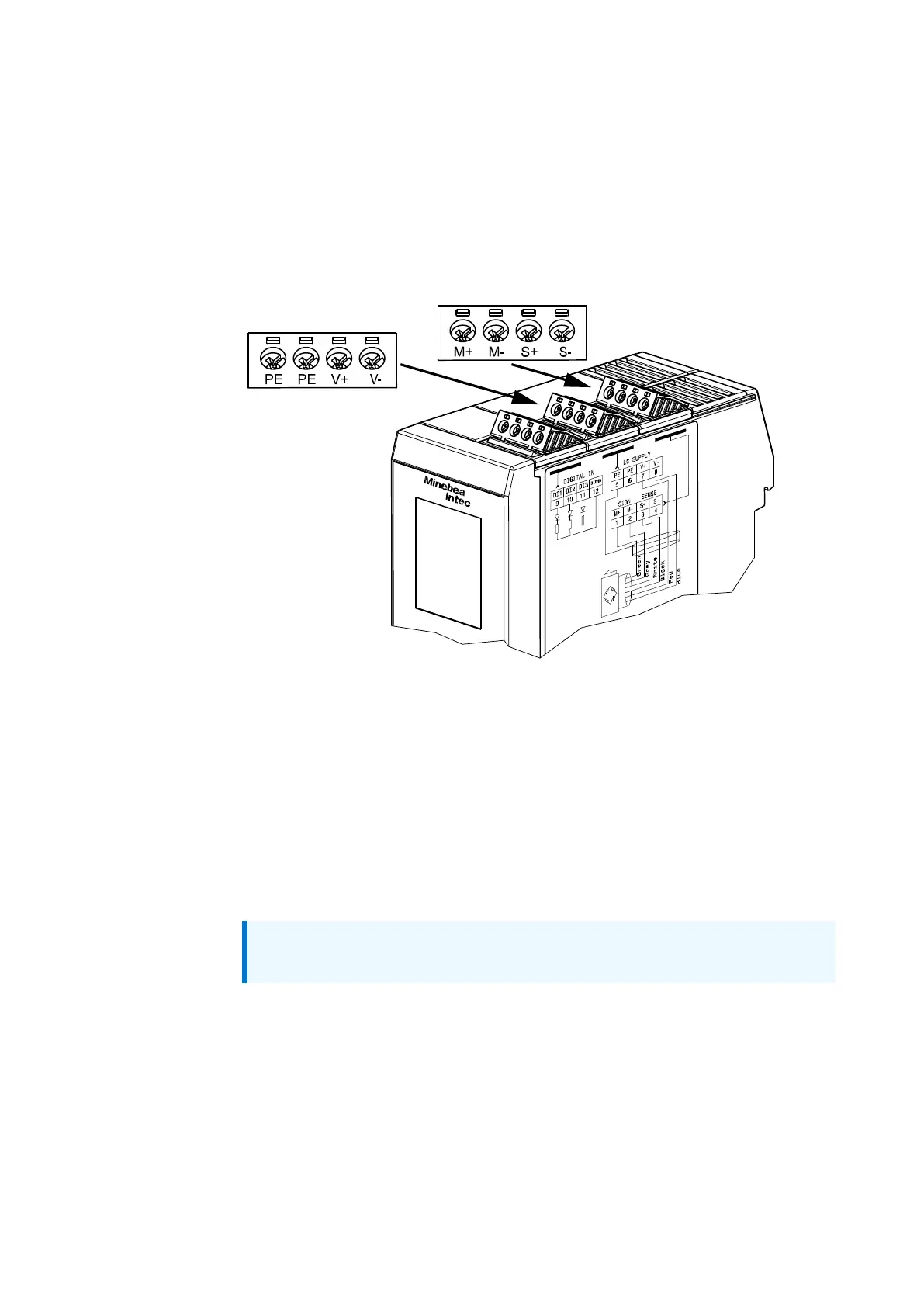

The connection diagram is located on the right side of the housing.
The supply voltage is protected against short circuit/overload.
Analog platforms can be connected to the device., see Chapter Connecting an
analog weighing platform with a 6-wire cable.
Load cells can be connected to the device as follows:
– One load cell directly, see ChapterConnecting a load cell with a 4-wire ca
ble and Connecting a load cell with a 6-wire cable
– several load cells in the junction box via connecting cable, see Chapter
Connecting between 2 and 8 load cells (650 Ω) using a 6-wire connection
cable and Sticker
Note: Do not shorten the load cell cable. Connect the prepared cable end
and roll up the excess length.
