3. Device description | 3.1 - Transmitter types | 20

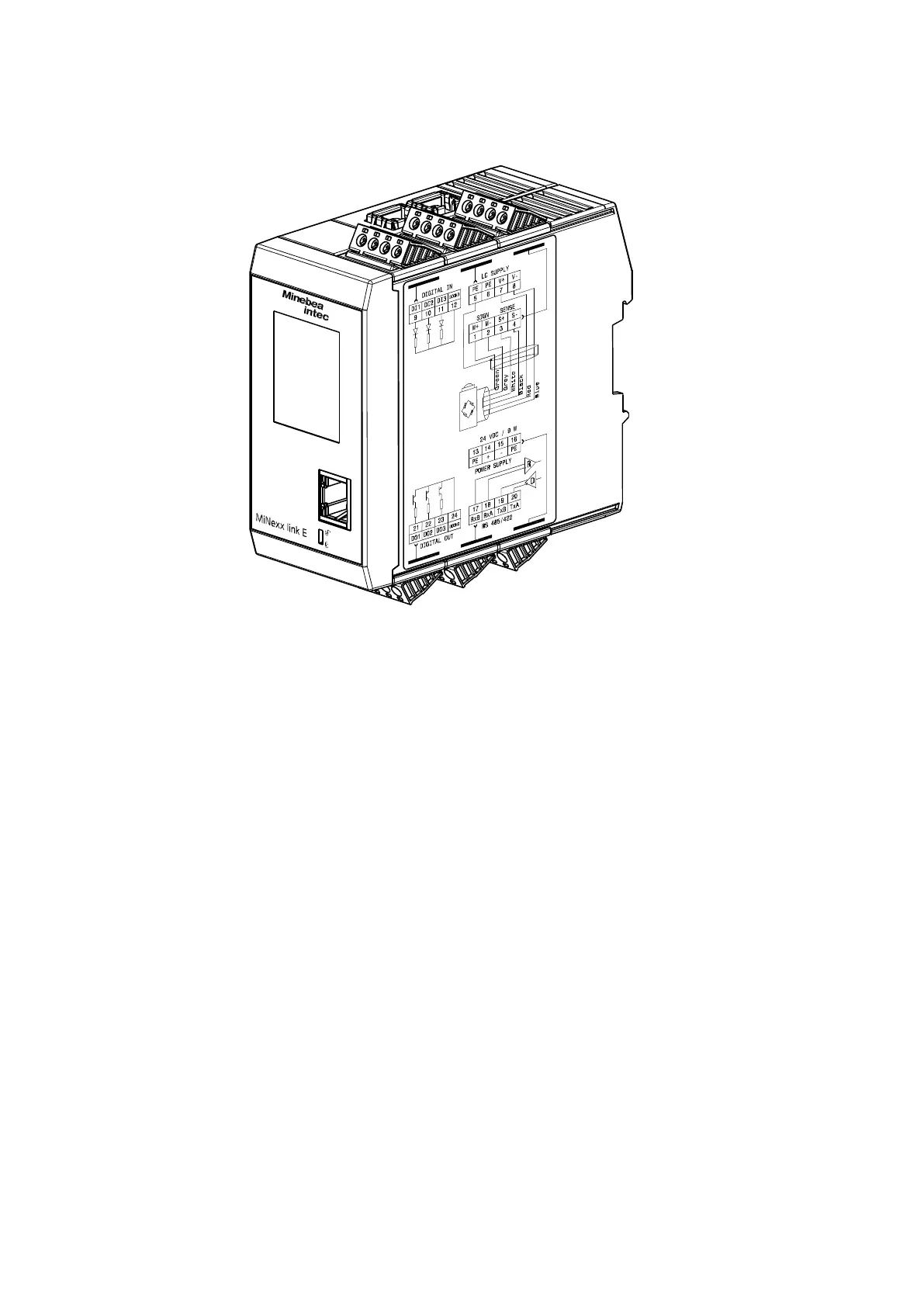

3.1.8 PR 5215/08
This type includes
– 3 digital inputs and outputs
– a port for the analog weighing electronics (ADC)
– a supply voltage connection
– a RS-485 interface
– a network port
– an EtherCAT interface
The EtherCAT connection is established by RJ-45 plug connector (2×, female)
on the top of the device.
See also ChapterOverview of connections.
