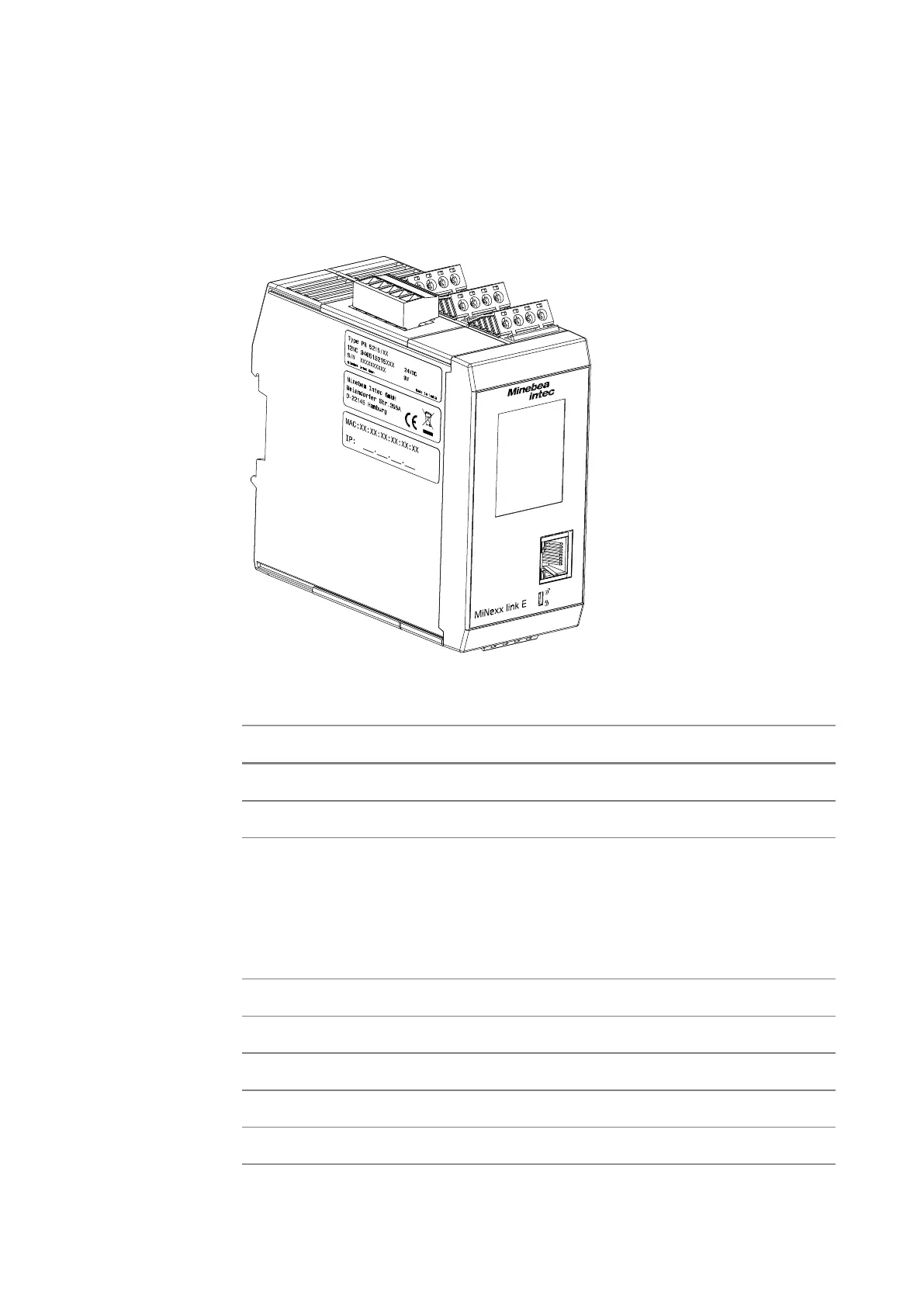

4.3.9 CC-Link interface
The CC-Link fieldbus contains all functions to provide a complete CC-Link
slave.
The interface can be configured by software.
Technical data
Description Data
External connection 5-pin plug connector (female)
Transfer rate 156; 625kbps; 2,5; 5, 10Mbps
Protocol CC-Link Slave
– CRC error recognition according to IEC 62026
(EN 50325)
– Max. 64 station nodes
– 128 I/O bits and 16(32 bit) words
Configuration CSPP-Datei "MINE_5215.cspp"
Potential isolation yes, optocoupler and DC/DC converter
Bus termination 110Ω at the cable ends
Bus load 100mA
Cable type 2x2 twisted pair; screened
