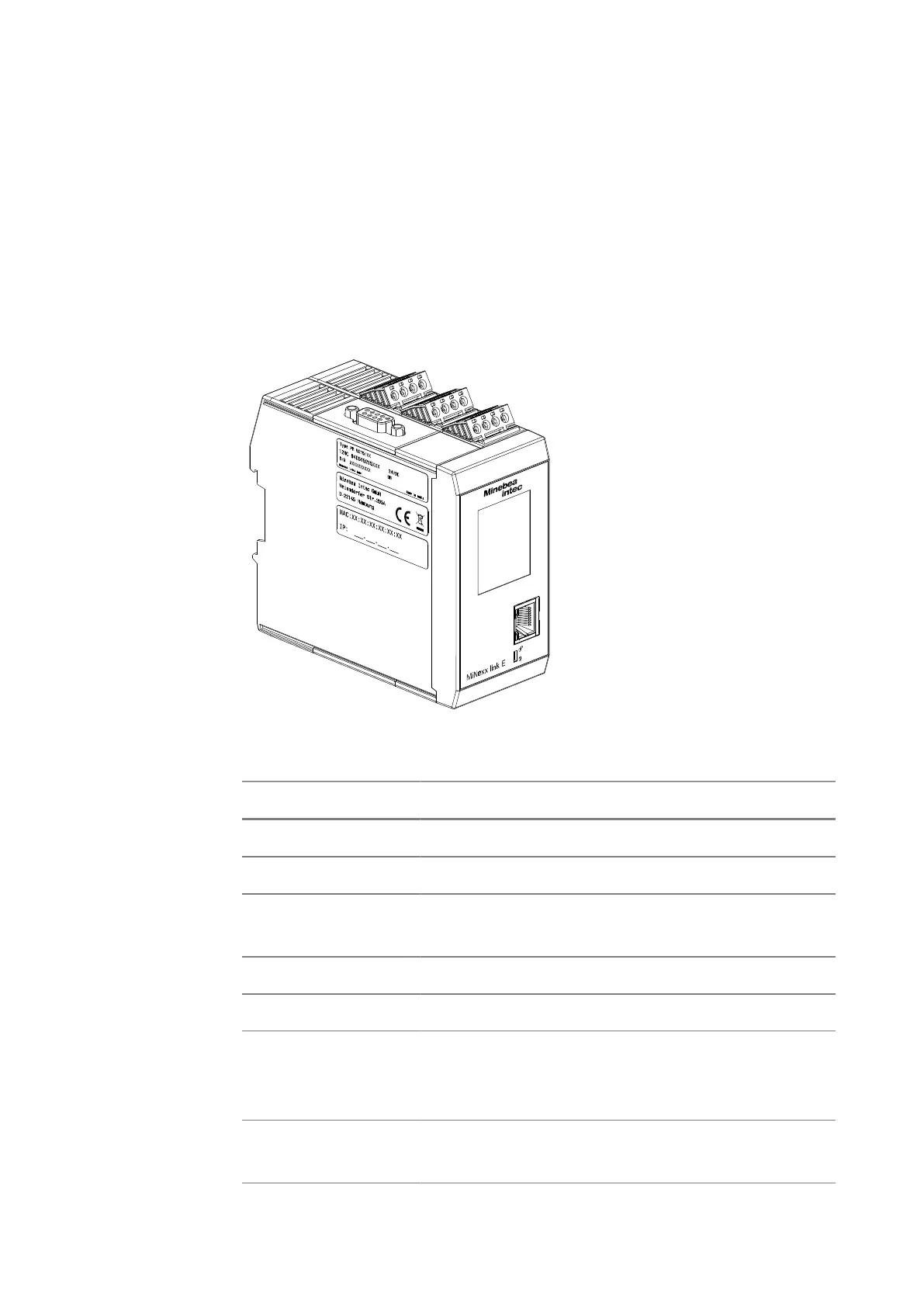

Minebea Intec MiNexx-link-E PR 5215/01 - Profibus-DP Interface

4. Device installation | 4.3 - Hardware construction | 49
4.3.7 ProfiBus-DP interface
With the Profibus-DP a centrally directed data exchange between master
and slaves is possible. The master (e.g. automation system PLC) carries out
the cyclic exchange of process data with the slaves (drives, I/O) one after the
other, in a fixed sequence.
Communication protocols and syntax comply with the ProfiBus-DP standard
to IEC 61158.
The interface can be configured by software.
Technical data
Description Data
External connection
D‑Sub
9-pin plug connector (female)
Transfer rate 9.6kbit/s to 12Mbit/s, baud rate auto-detection
Connection mode ProfiBus network, connections can be made/re
leased without affecting other stations.
Protocol PROFIBUS-DP-V0 SLAVE to IEC 61158
Configuration GSD file "MINE5215.gsd"
Bus termination The bus termination in the last device is implement
ed via the integrated terminating resistor in the
ProfiBus plug connector.
Cable type ProfiBus "special"; color: violet; screened twisted
pair cable
