4. Device installation | 4.3 - Hardware construction | 43

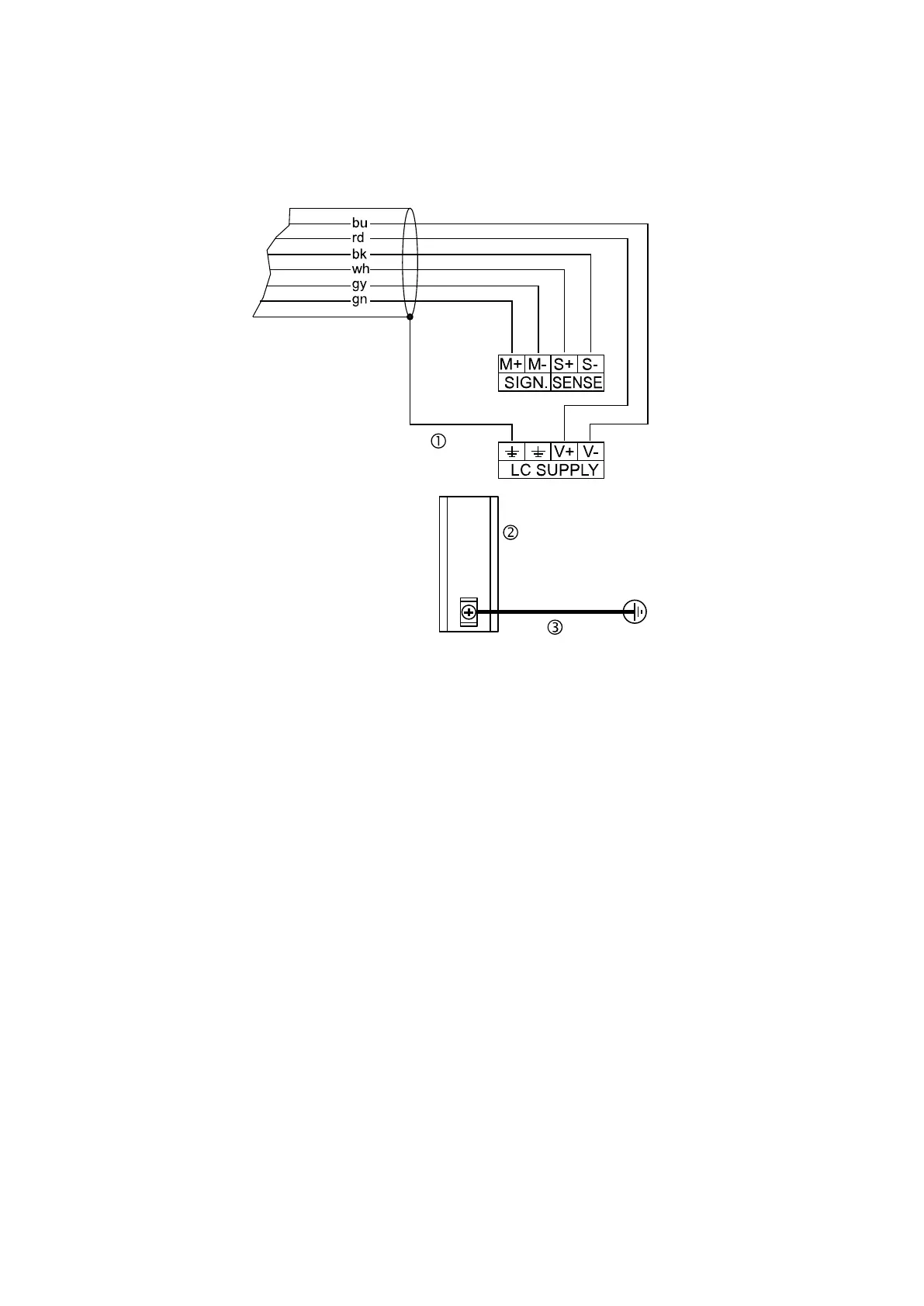

4.3.5.4 Connecting a load cell with a 6-wire cable
Connection example
①
Screen
③
Mounting rail
④
Potential equalization
4.3.5.5 Connecting between 2 and 8 load cells (650 Ω) using a 6-wire
connection cable
Connections are made via cable junction box PR6130/.. using connection
cable PR6135/.. or PR6136/... .
Recommendation
– Install cable in steel pipe connected to a ground potential.
– The distance between the measuring cables and the power cables should
be at least 1m.
Load cell supply circuit
– Load resistance of load cell circuit ≥75Ω, e.g., 8 load cells of 650Ω each
–
The supply voltage is fixed at U
DC
=5V and protected against short cir
cuits.
For further technical data, see ChapterGeneral technical data.
