6. Operating | 6.11 - Defining limits | 92

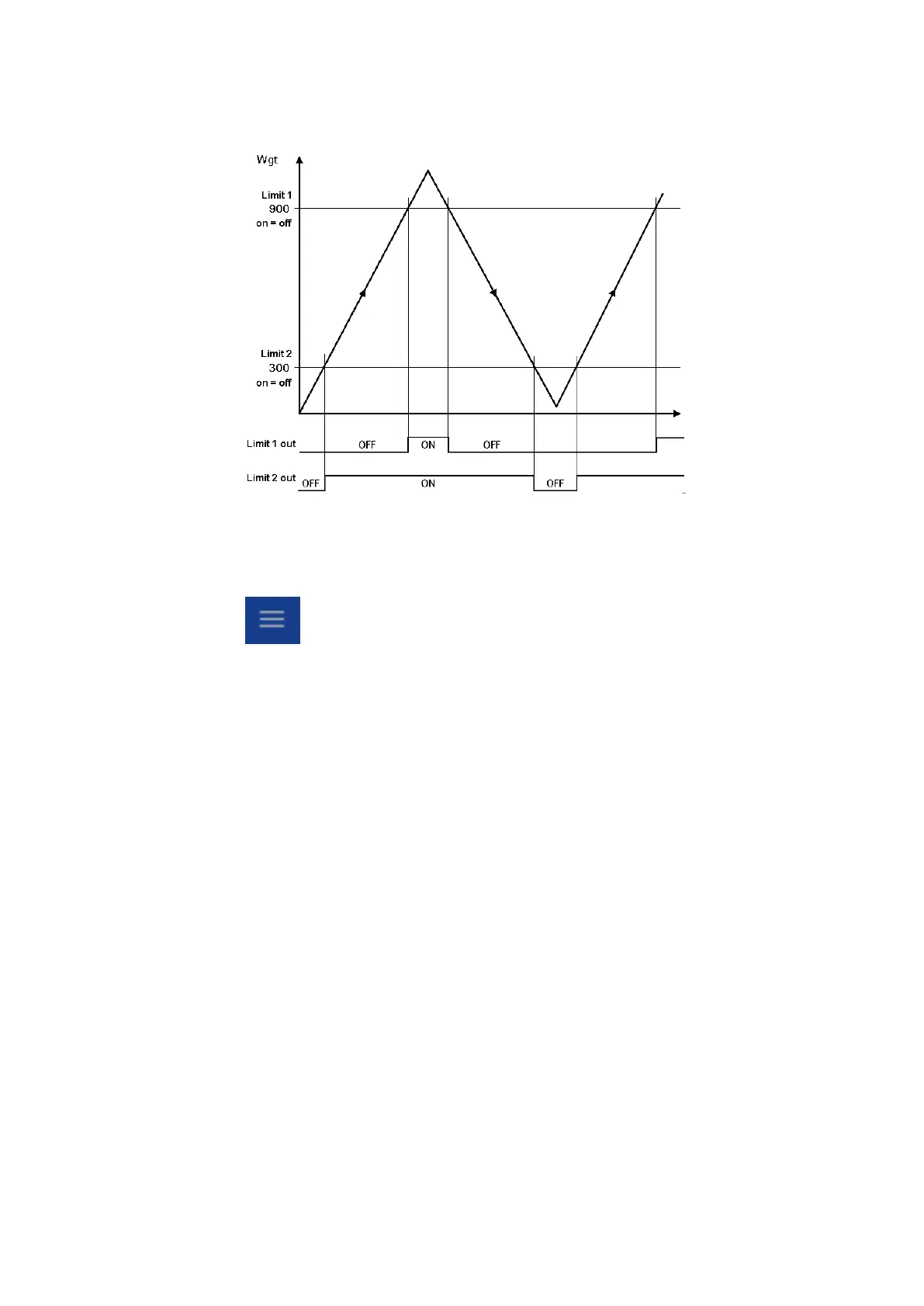

Example 2:
If limits1 and 2are the same for 'On' and 'Off' (on = off),
– output1 (Limit1 out) switches ON if the weight(Wgt) exceeds the value.
– output2 (Limit2 out) switches OFF if the weight falls below the value.
: [Limits]
1. Select the individual parameters and change if necessary.
[Limit 1…3 on]
Input: Weight value
[Limit 1…3 off]
Input: Weight value
2. Save the settings.
3. Save the changes.
