Minebea Intec Signum 3 Ex User Manual

130
Signum 3 Ex
Power supply options Data output options
Page
6
of
6
36953-751-40

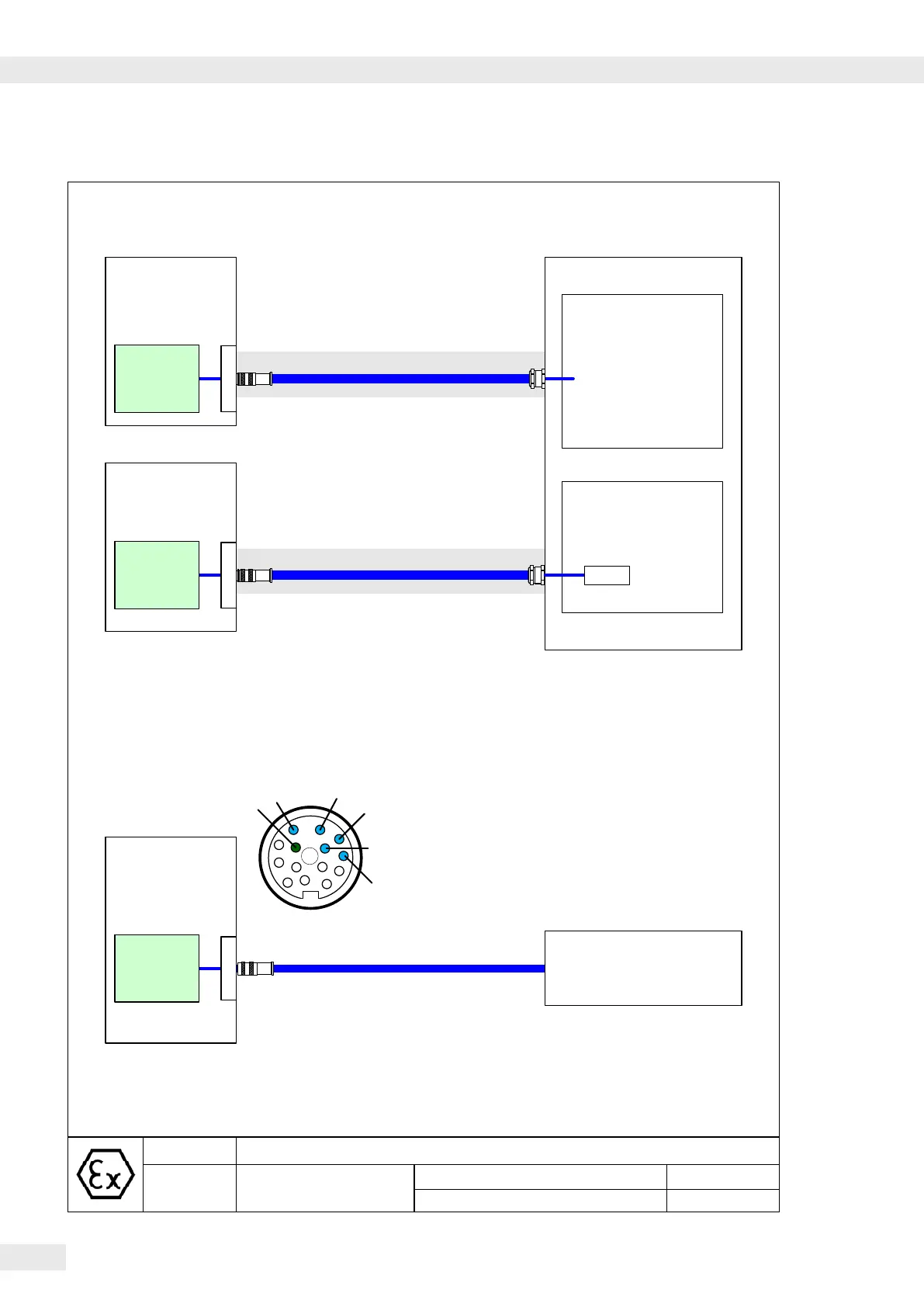

Data Transfer
2013-02-02
Dr. D. Klausgrete
Drawing number
Title
Revision 00
CIXS3 / CX3S.-... / CHX3.-…
Main PCB***
SIWXS…-3-..-…
or
ISX…-..-…
14-contact female connector
on SIWXS.../ISX...
G: > (MAJ)
F: < (MIN)
E: = (PAR)
D: SET
O: UNIV IN
M: Signal GND
M
G
E
F
O
D
Digital IOs
Intrinsically safe device
Hazardous area
*: YCC02-XR14M6; connecting cable; Option of CIXS3 / CX3S.-... / CHX3.-…
**: Option of CIXS3 / CX3S.-... / CHX3.-…
***: Interface can be selected and configured by software
SIWXS…-3-..-…
or
ISX…-..-…
Option M13 *
6m
Option A21: RS232
Option A23: RS485
Option N25 **
6m
UNICOM PCB
Option A36
RS485
LV2
SIWXS…-3-..-…
or
ISX…-..-…
14-contact
Option A13
RS485
14-contact
Option A11
RS232
or
Option A13
RS485
14-contact
Option A11
RS232
or
Option A13
RS485
