Signum 3 Ex
Getting Started
Getting Started

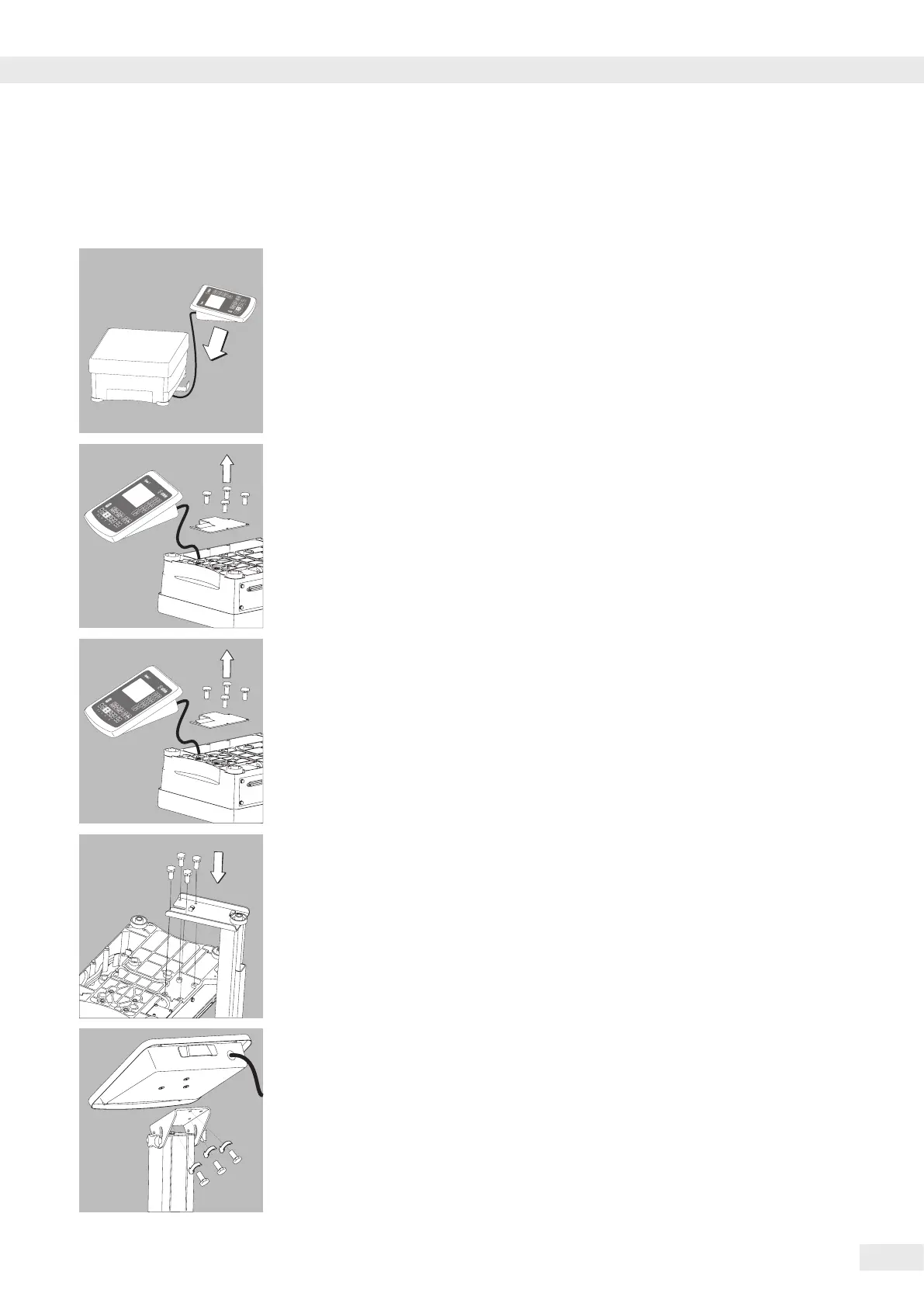

Installing the Display and Control Unit
The following options are available for installing the display and control unit:
(the pictures depict the SIW*DCP model)
§ Fastening the display and control unit to the weighing platform:
§ Guide the display and control unit onto the retainer bracket�
§ Level the weighing platform (see page 7)�
– Attached to the weighing platform
– On the YDH01P column: optional for the DCP model
– On the YDH02P column: optional for the BBP model
– On the YDH0xCWS column: optional for the DCS model
– On the YDH02S column: optional for the BBS model
Operating the display and control unit separately:
§ Turn the weighing platform over and place it on a soft surface to avoid damaging the
weighing system�
§ Remove the display and control unit retainer bracket�
§ Take the cable out of the cable channel�
§ Turn the weighing platform right-side up and place it so that it rests on its feet�
§ Level the weighing platform (see page 7)�
Installing the display and control unit on the YDH01P column:
§ Turn the weighing platform over and place it on a soft surface to avoid damaging the
weighing system�
§ Remove the display and control unit retainer bracket�
§ Take the cable out of the cable channel�
§ Use the four hexagonal screws provided (M4+8) to attach the column to the weighing
platform (back panel facing downward)�
§ Turn the weighing platform right side up and place it so that it rests on its feet�
§ Loosen the two locking bolts at the top of the column to facilitate installation of the
display and control unit�
§ Use the three hexagonal screws (M4x8) to attach the display and control unit to the top
of the column�
§ Adjust the display and control unit to the desired angle and secure it there�
– This is done by tightening the locking bolts on the top of the column�
