CTX 3030 Screens
The CTX 3030 graphical user interface (GUI) has three main screens:
1. Detect screen – where your detector status and detection results are displayed
2. Map screen – where location GPS functionality is displayed
3. Menu screen – where you can access all the detector settings menus
Each screen can be directly accessed from any other screen by pressing the
appropriate control button.
A Status Bar is displayed at the top of the Detect and Map screens to provide status
information for various detector functions and settings. For further information on
the Status Bar, see page 5.
Detect Screen

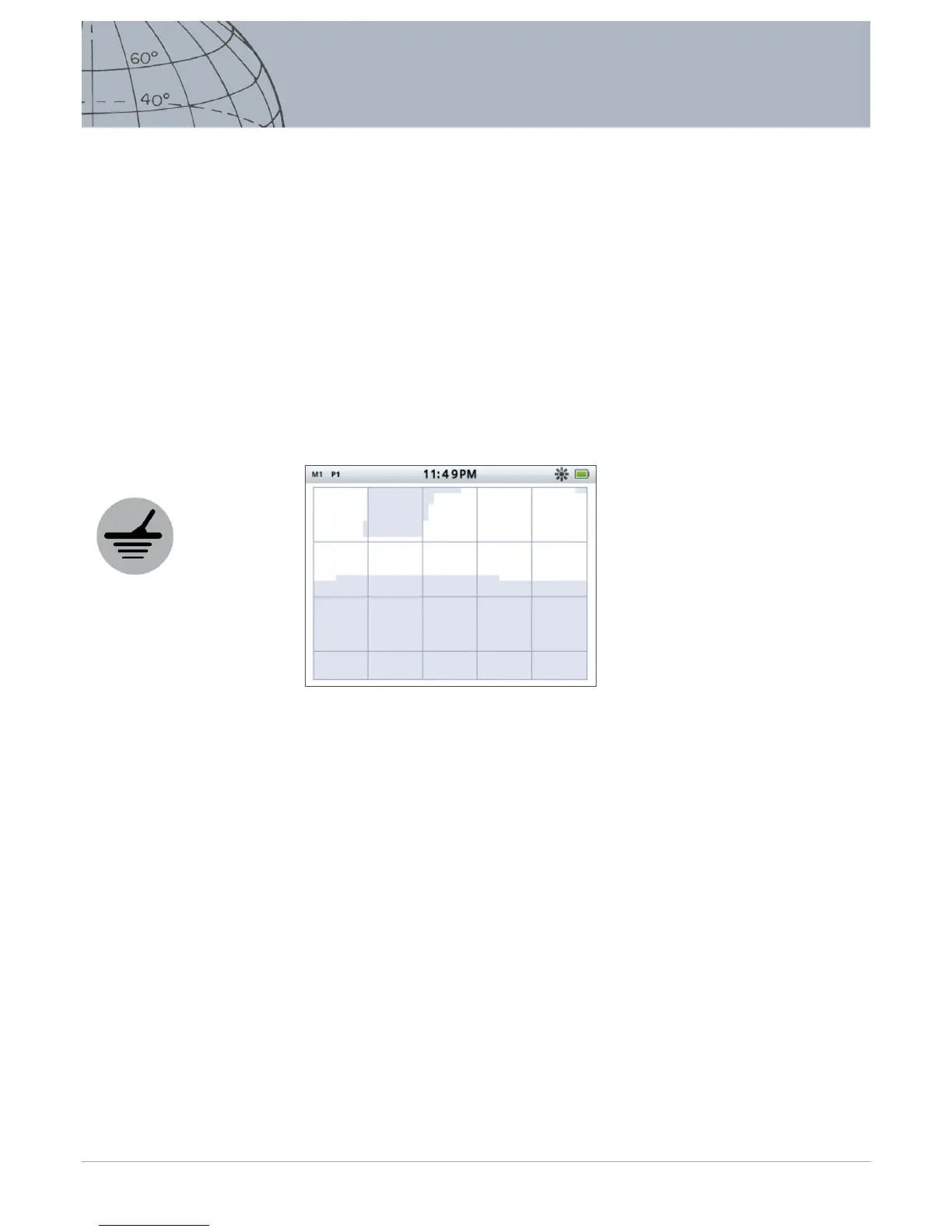

Figure 1 – Default Detect screen
Use the Detect screen to:
1. View and interpret detection results (Target ID, Depth, Target Cursor, Target Trace,
Pinpoint)
2. View and edit the Discrimination Patterns
3. View the status of the detector
For further information on the Detect screen, see page 7.
Access the Detect screen at any
time by pressing the Detect
button.
Detect
To Next Page
