The following screen elements are optional and can be controlled through the
Display menu:
• Target ID Panel (page 10)
• Sensitivity Panel (page 11)
• Navigation Tool (page 11)
• Names of GeoStore items (FindPoints, WayPoints)

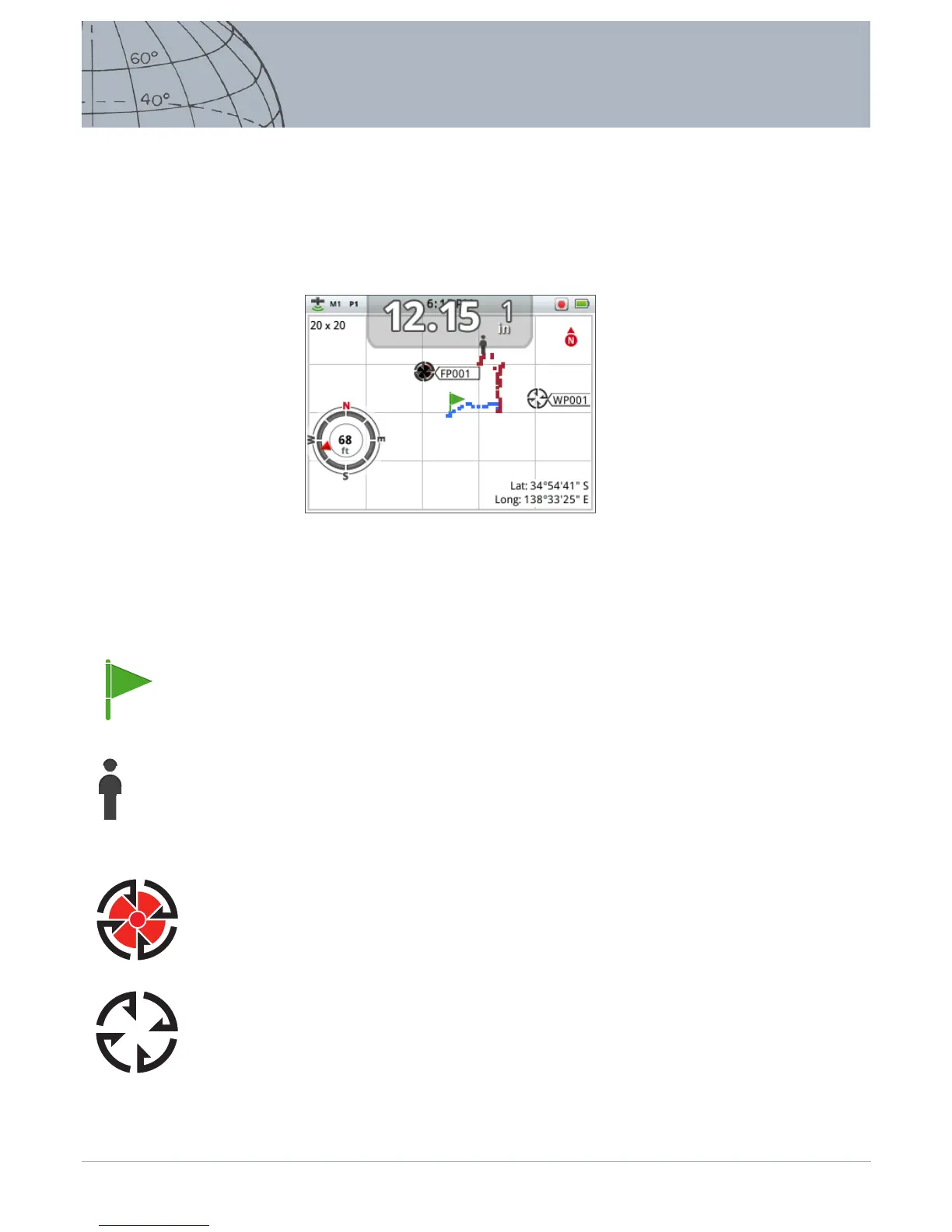

Figure 15 – Map screen showing optional elements
For information on how to show and hide optional screen elements, see page 47.
Zoom Levels
The zoom level indicator is displayed at the top left of the Map screen. It indicates
the current size of the grid square in yards or meters (10 x 10, 20 x 20 or 100 x 100).
The detector will cycle through the three available zoom levels each time you press
the Map button.
Start Trail
On entering the map screen a marker will be displayed at the centre of the screen
to represent your initial start location.
Current Position
The current position marker displays your location on the Map Screen.
FindPoints and WayPoints
FindPoints and WayPoints are displayed on the Map Screen to indicate nd locations
and points of interest. They will be displayed at a consistent size regardless of the
zoom level, but those in close proximity will be overlapped. By default FindPoints
and WayPoints are displayed with their names, but if space is limited the names can
be hidden (page 17).
FindPoint
A FindPoint stores the location and details of a target. When you choose to store a
FindPoint (page 17), the CTX 3030 stores the following information:
• Location (Latitude/Longitude)
• Time and date
• Search mode settings (Target ID, depth, )
Start Trail
Current Position
FindPoint
WayPoint
