Detect Screen
The Detect screen is the rst screen you will see when you turn the detector on,
and where you will spend the majority of your time. This screen graphically displays
the discrimination patterns and target information.
At the top of the Detect screen is the Status Bar, which displays information about
the current detector settings (page 5).
The Detect screen can be accessed at any time by pressing the Detect button.
Detect Screen Content
The content of the Detect screen will vary according to its current state and your
actions. This screen can display the following content:
• Discrimination Patterns
• Target Cursors (accepted and/or rejected)
• Target ID Panel (FE-CO numbers and depth - see page 10)
• Target Trace
• Pinpoint Gauge

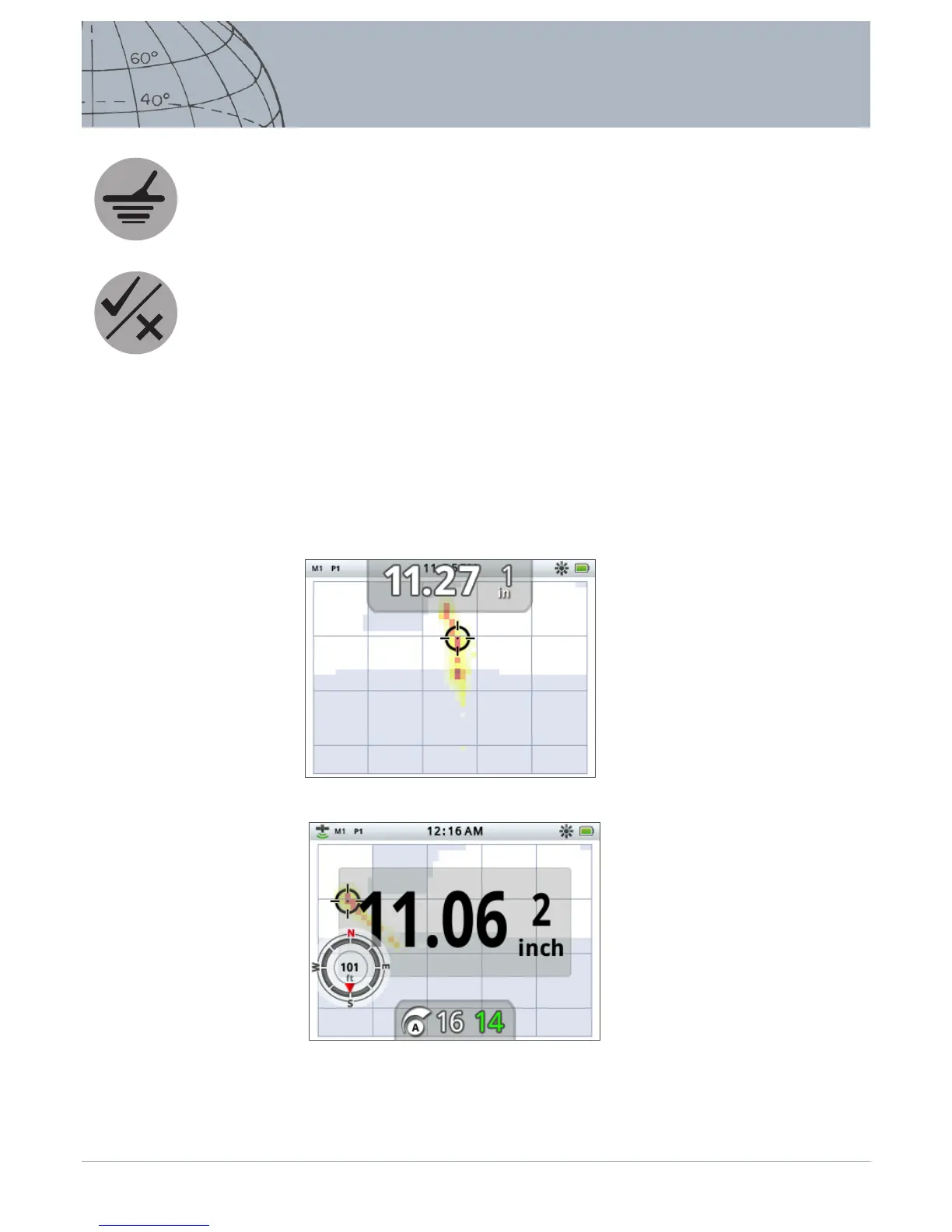

Figure 6 – Detect screen content
The following screen elements are
optional and can be controlled
through the Display menu:
• Large Target ID Panel
• Navigation Tool
• Sensitivity Panel
For information on how to
show and hide optional screen
elements, see page 46.
Figure 7 – Detect screen showing optional elements
Detect
Identify
The Detect screen is used in
conjunction with the Detect and
Identify control buttons.
