Installation
Stranded yes
Wire diameter, core 0.4…0.6 mm
Screening recommended
Characteristic impedance lt; 125 W (100 kHz), lt; 115 W (1 MHz)
Wave attenuation lt; 6 dB/km (100 kHz), lt; 26 dB/km (1 MHz)
Near/crosstalk attenuation > 54 dB/100 m (1 kHz to 1 MHz)
4.7.2.1.2 BRI basic rate interface network-side

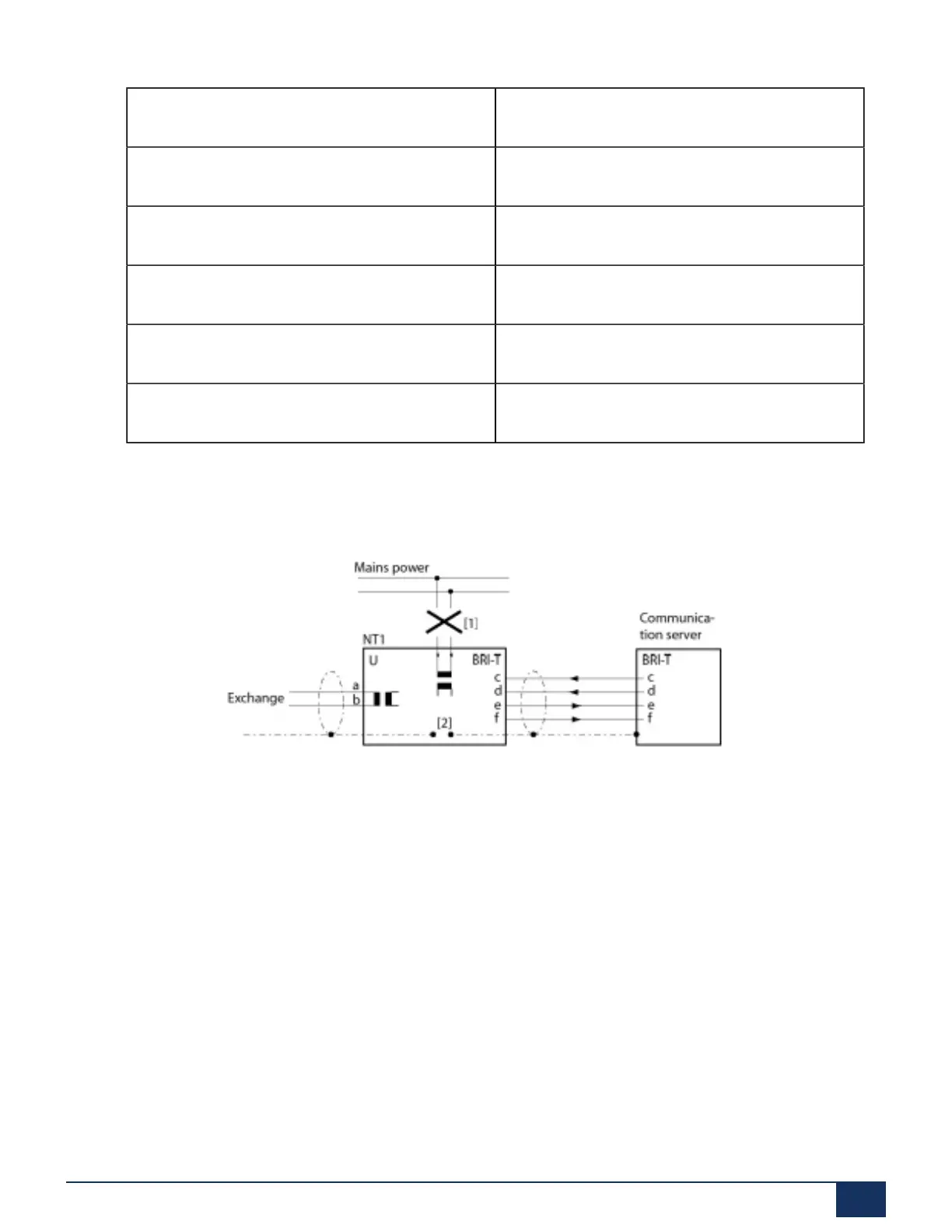

Figure 26: Basic access on NT1
1. Do not connect power supply NT1
2. Do not fit the jumper
The assignment of the RJ45 connector is identical on the NT-side and on the side of the communication
server.
Release 7.1
System Manual for Mitel SMB Controller 112
