Installation

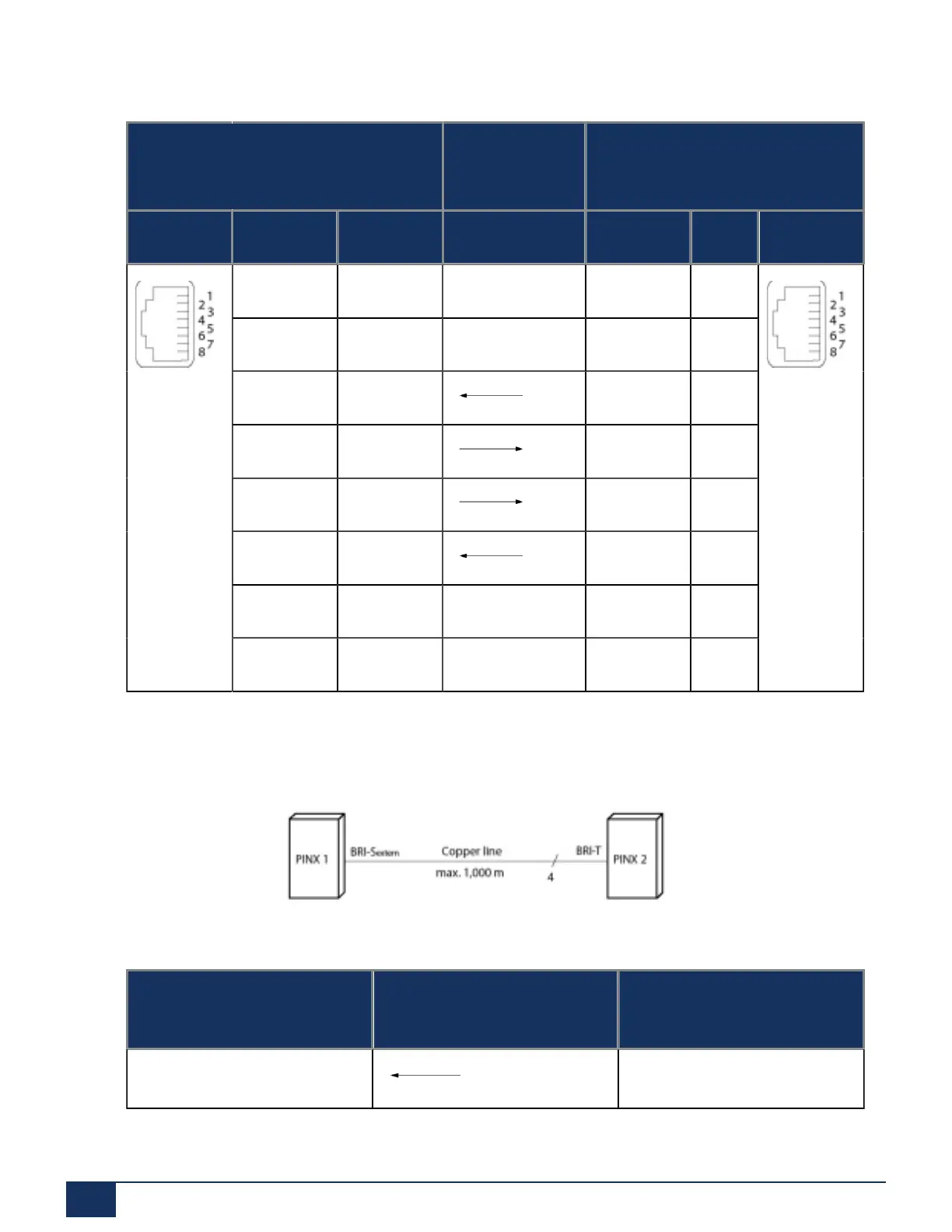

Table 35: Wiring of the BRI basic rate interface network-side
NT1 Cable
coresStraight
patch cable
Communication server
Socket Pin BRI-T signal BRI-T signal Pin Socket
1 – – 1
2 – – 2
3 c c 3
4 f f 4
5 e e 5
6 d d 6
7 – – 7
8 – – 8
4.7.2.1.3 Basic access in the private leased-line network
Figure 27: BRI-S basic rate interface external, networked with copper line
Table 36: Connection of BRI-S basic rate interface external, networked with copper line
PINX 1 signal Basic access
BRI-S ext.
Cable cores PINX 2 signal, Basic rate
interface BRI-T
c c
Release 7.1
113 System Manual for Mitel SMB Controller
