Installation

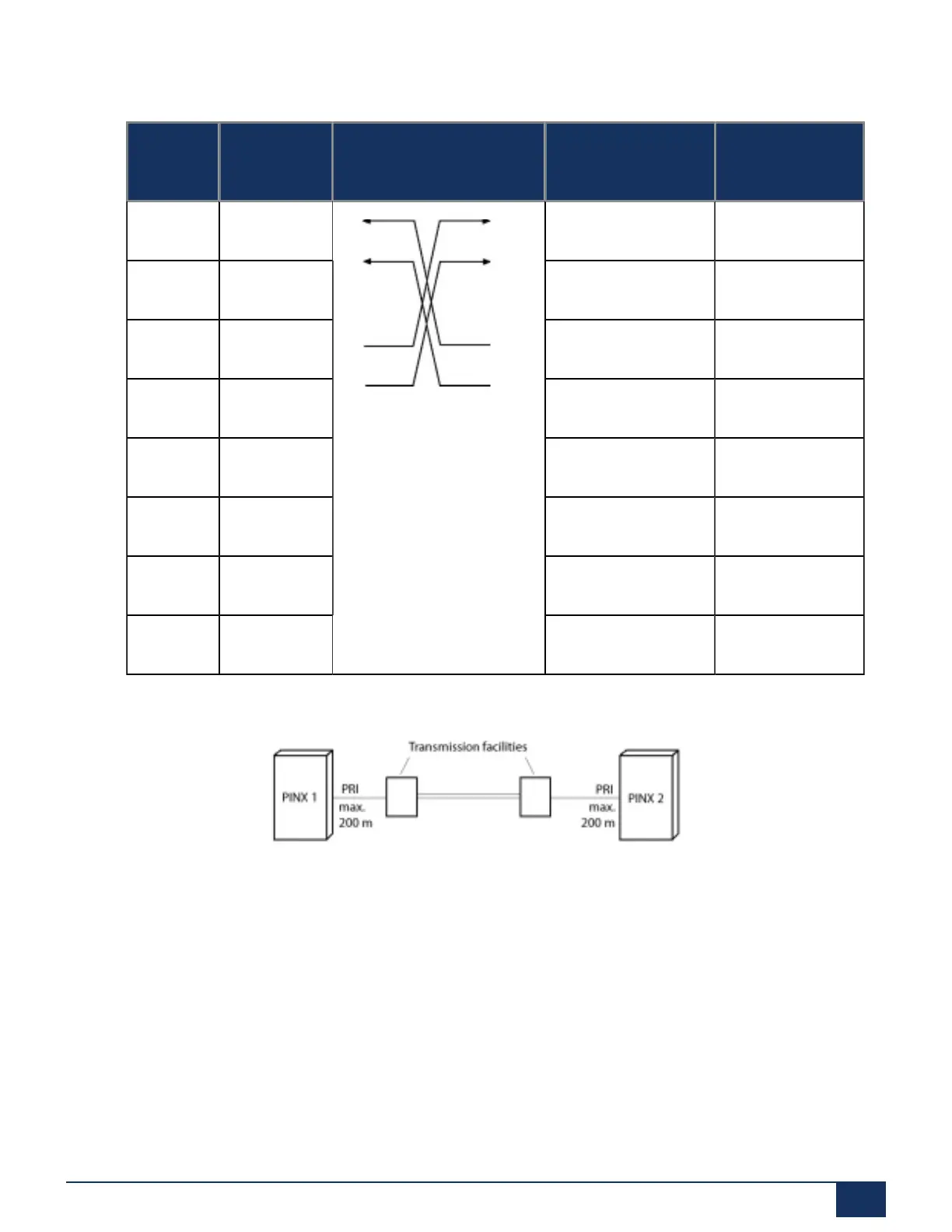

Table 40: Cabling for primary rate access PRI, networked with copper line
RJ45Pin PRI PINX 1
signal
Cable cores Crossed
patch cable
PRI PINX 2 signal RJ45Pin
1 RxA RxA 1
2 RxB RxB 2
3 — — 3
4 TxA TxA 4
5 TxB TxB 5
6 — — 6
7 — — 7
8 — — 8
Figure 32: Primary rate interface, networked with transmission equipment
Release 7.1
System Manual for Mitel SMB Controller 118
