Installation
•
Cabling of AD2 terminals is restricted to pairs of a separate dedicated cable(s).
55
.
4.7.3.1.3 Terminals
The following system terminals can be operated on the DSI-AD2 bus:
• MiVoice 5300 series system phones
• Mitel DECT radio units
The system phones on a DSI-AD2 bus are addressed via a single-digit terminal selection digit (TSD).
Example:
The address of a system phone with TSD 2 on DSI interface 3.5 is 3.5-2.
4.7.3.2 BRI-S terminal interfaces

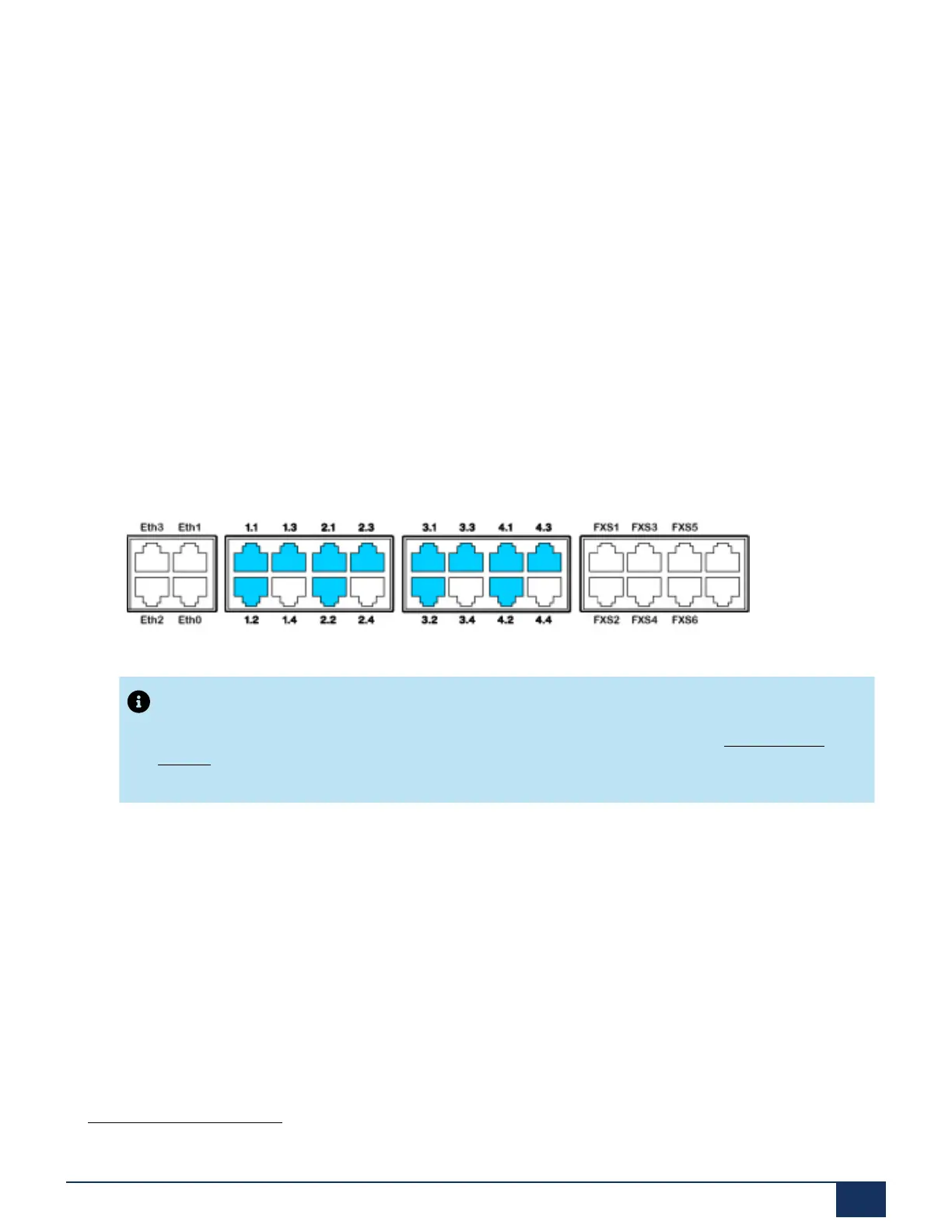

Figure 40: Connection possibilities for BRI-S terminal interfaces
Note:
Some of the interfaces can be configured on BRI-T using the wiring adapters (see Fitting a wiring
adapter).
55
Applies in Australia only
Release 7.1
System Manual for Mitel SMB Controller 134
